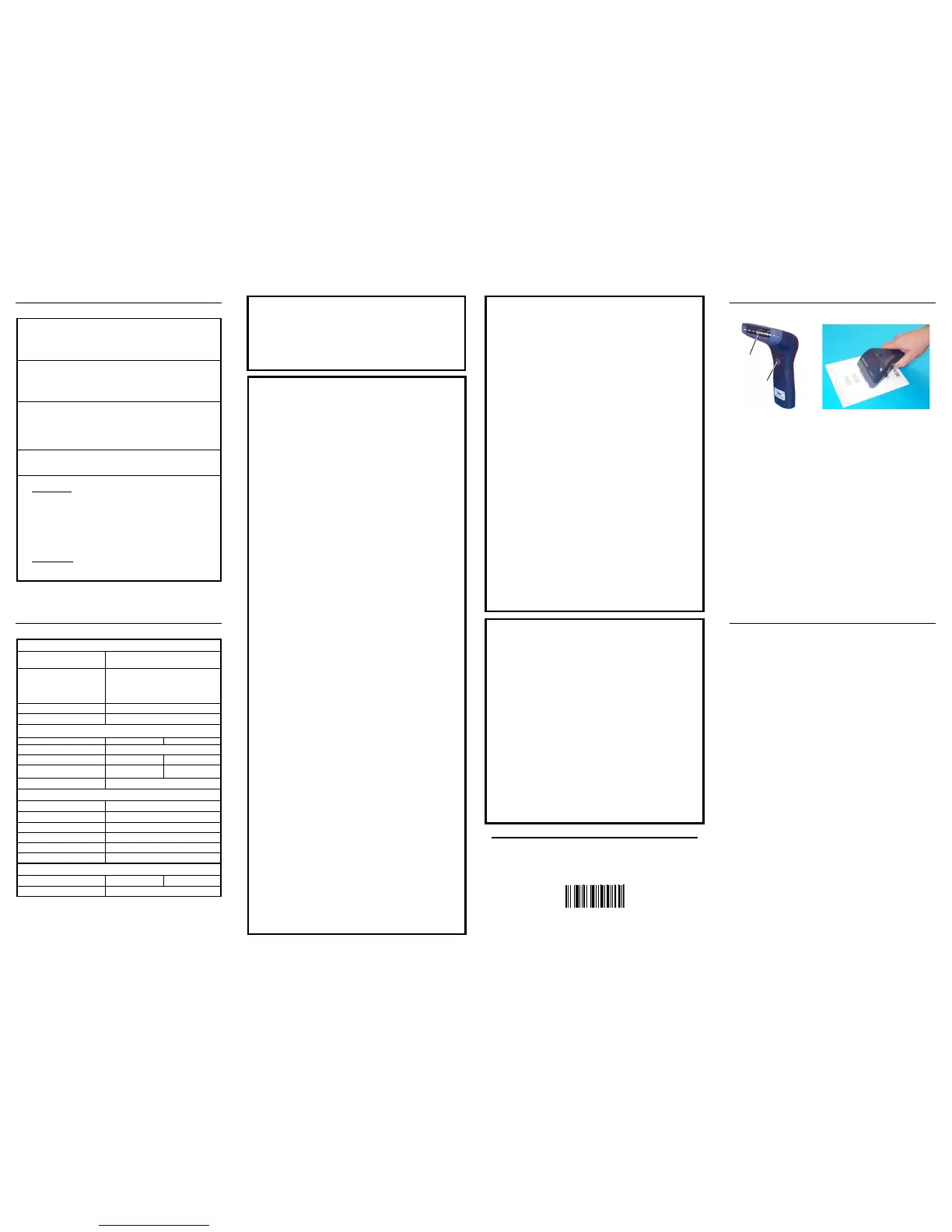

Datalogic Touch 65 Quick Reference Guide

DEFAULT VALUES
USB-KBD DEFAULT SETTINGS
USA keyboard, FIFO enabled, inter-character and inter-code delays disabled,
control character emulation = ctrl+shift+key.
DATA FORMAT: code identifier disabled, no field adjustment, code length not
transmitted, no header, terminator = ENTER, character replacement disabled.
RS232 Standard DEFAULT SETTINGS
9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking, delay disabled, rx
timeout 5 sec., ack/nack disabled, FIFO enabled, serial trigger lock disabled.
DATA FORMAT: code identifier disabled, no field adjustment, code length not
transmitted, no header, terminator = CR-LF, character replacement disabled.
WEDGE DEFAULT SETTINGS
USA keyboard, caps lock off, caps lock auto-recognition enabled, num lock
unchanged, inter-character and inter-code delays disabled, control character
emulation = ctrl+shift+key.
DATA FORMAT: code identifier disabled, no field adjustment, code length not
transmitted, no header, terminator = ENTER, character replacement disable.
PEN DEFAULT SETTINGS
interpret mode, conversion to code 39 disabled, output level normal, idle level
normal, minimum output pulse 600 μs, overflow medium, inter-block delay disabled.
CODE SELECTION
Enabled codes
• EAN 8/EAN 13 / UPC A/UPC E without ADD ON
check digit transmitted, no conversions
• Interleaved 2/5
check digit control and transmission, variable length code; 4-99 characters
• Standard Code 39
no check digit control, variable length code; 1-99 characters
• Code 128
variable length code; 1-99 characters
Disabled codes
EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI,
Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49, RSS Codes
TECHNICAL FEATURES
Electrical Features
Power Supply
RS232 interface
5 Vdc ± 5%
Consumption:
Maximum
Operating
Sleep mode &
USB Suspend Mode
150 mA @ 5 Vdc
100 mA @ 5 Vdc
< 500 μA @ 5 Vdc
Max. Scan Rate 256 scans/sec
Reading Indicators LED, Beeper
Optical Features
Touch™ 65 Touch™ 90
Sensor CCD solid state (2048 pixels)
Reading Field
63 mm typical 80 mm typical
Max. Resolution
0.10 mm
(4 mils)
0.13 mm
(5 mils)
PCS min. 15% (Datalogic Test Chart)
Environmental Features
Working Temperature
0° to +55 °C / 32° to 131 °F
Storage Temperature
-20° to +70 °C / -4° to 158 °F
Humidity 90% non condensing
Drop Resistance 1.2 m (3 ft 11 in)
ESD Protection 16 KV
Protection Class IP30
Mechanical Features
Weight (without cable)
about 160 g (5.6 oz) about 195 g (6.8 oz)
Cable Length 2 m (6 ft 6 in)
RESTORE DEFAULT
RESTORE DEFAULT
Ì$+$*oÎ
To change the defaults refer to the HHD II Software Configuration Manual, part
number 90ACC1877, or to the Datalogic Aladdin™ Configuration program, both
downloadable from the website.
INTERFACE SELECTION
Select one of the interface codes according to your application.
USB INTERFACE SELECTION
USB-KBD
Ì$+UA03$-:Î
USB-KBD - ALT-mode
Ì$+UA04$-@Î
USB-COM *
Ì$+UA02$-4Î
USB-IBM-Hand Held
Ì$+UA01$-.Î
* When configuring USB-COM, the relevant files and drivers must be installed
from the USB Device Installation software, which can be downloaded from the
web site http://www.scanning.datalogic.com.
PEN EMULATION INTERFACE SELECTION
PEN
Ì$+CP6$-BÎ
RS232 INTERFACE SELECTION
RS232 Standard
Ì$+CP0$-$Î
Nixdorf Mode A
Ì$+CM2EC0$->Î
Fujitsu
Ì$+CM1$-ÈÎ
ICL Mode
Ì$+CM0$-ÃÎ
WEDGE INTERFACE SELECTION
Wedge IBM AT or PS/2 PCs
Ì$+CP500$-aÎ
PC Notebook
Ì$+CP505$-ÈÎ
PC Notebook - ALT mode
Ì$+CP508$-2Î
IBM AT - ALT mode
Ì$+CP507$-+Î
Many other interfaces are supported and can be selected from the HHD II
Software Configuration Manual available online at www.scanning.datalogic.com.
Other supported interfaces:
USB: USB-IBM-Table Top; USB-KBD-APPLE
WEDGE: IBM XT; IBM SURE1; IBM Terminal 3153; IBM Terminals 31xx, 32xx,
34xx, 37xx; Wyse Terminals ANSI – PC –ASCII – VT220 style Keyboards; Digital
Terminal VT2xx/VT3xx/VT4xx; APPLE ADB Bus
KEYBOARD NATIONALITY
USB-KBD and Wedge users should select one of the following wedge keyboard
nationality codes according to your keyboard.
Belge
Ì$+FJ7$-8Î
Deutsch
Ì$+FJ3$-$Î
English
Ì$+FJ4$-)Î
Español
Ì$+FJ6$-3Î
Français
Ì$+FJ2$-ÊÎ
Italiano
Ì$+FJ1$-ÅÎ
Japanese
Ì$+FJ8$-=Î
Svenskt
Ì$+FJ5$-.Î
USA (Default)
Ì$+FJ0$-|Î
DATA FORMAT TERMINATORS
For your convenience, some common Terminators are given below. For othe
r
Header/Terminator selections, Data Format and Advanced Data Format
parameters, see the HHD II Software Configuration Manual.
CR-LF
Ì$+EA120D0A$-ÃÎ
Enter
Ì$+EA1183$-0Î
Tab
Ì$+EA1184$-8Î
None
Ì$+EA10$-dÎ
OPERATING TEST
Read the TEST code below.
Code 128
test
USING TOUCH™SERIES READERS
scanning line
trigger button
Touch™ readers scan barcodes on contact. All models have a hardware trigge
r
button, which by default must be pressed to read a code. After configuring the
reader interface type, the software trigger parameter (available in this manual) can
be selected so that the reader operates like a model without trigger.
Code scanning is performed along an imaginary line passing across the reading
window. This imaginary line must pass through the entire code.
Successful scanning is obtained by keeping the handle of the reader parallel with
respect to the code surface, see the figure above.
TRIGGER SELECTION
After configuring the reader interface type, the software trigger parameter can be
selected so that the reader operates like a model without trigger.
Software Trigger
Ì$+BK0$-tÎ
♦ Hardware Trigger
Ì$+BK1$-yÎ
gpd.sunwayinfo.com.cn

Datalogic Touch 65 Specifications

General

Interface	USB, RS-232, Keyboard Wedge
Type	Handheld
Resolution	4 mils
Drop Resistance	1.5 m
Scan Rate	100 scans/sec
Supported Barcodes	1D
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	5 to 95%
Power Supply	5V DC
