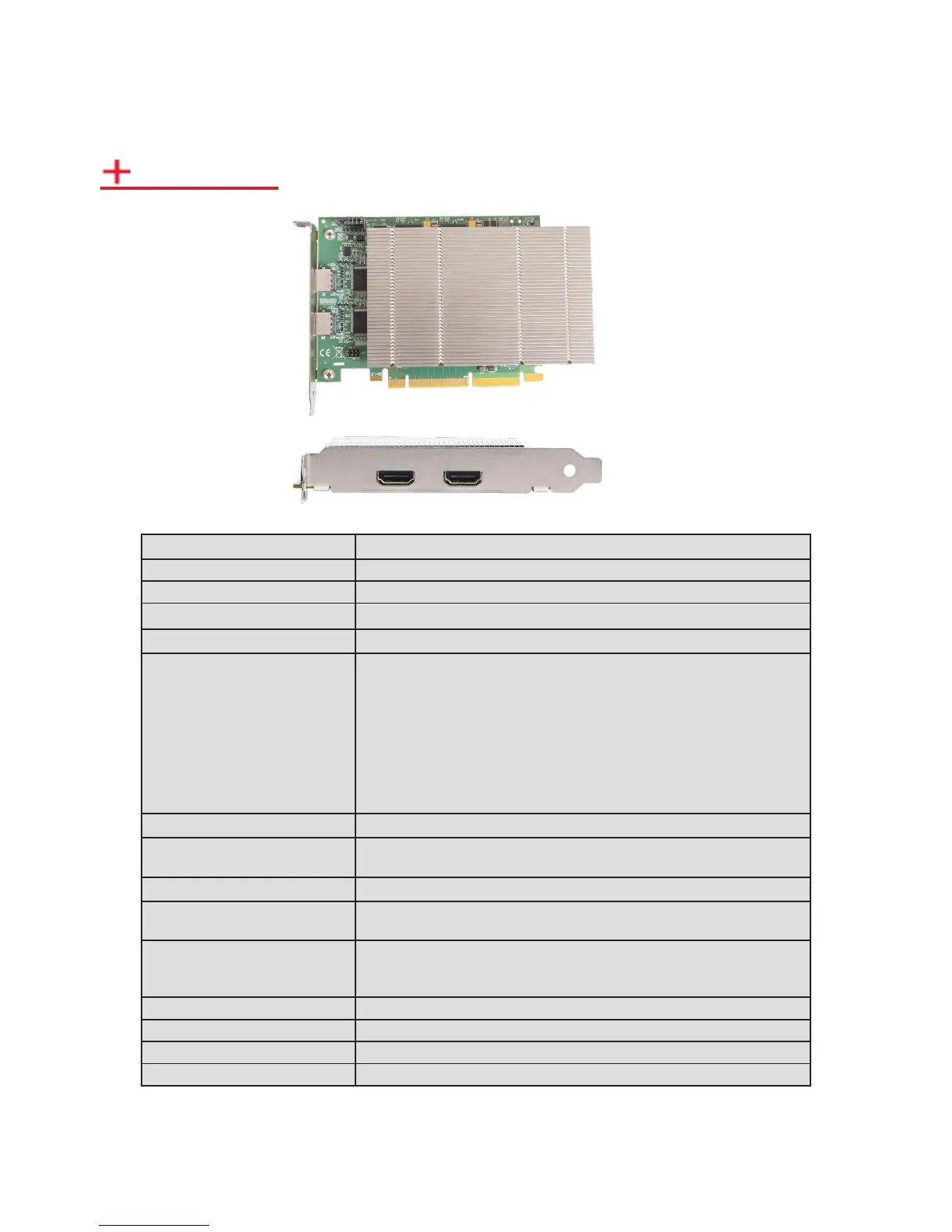

Datapath VisionSC-UHD2 User Manual

Board Format PCI-Express x8 plug-in card, 110mm x 177mm (incl heat sink)
Connectors (main board) Dual HDMI 2.0
Maximum Capture Rate 600MHz TMDS Clock
Frame Buer 2GB
Input Mode Detection Automatic
Pixel Transfer Formats Colour space conversion allows captured data to be transferred in any
format:
RGB:5-5-5, 5-6-5 or 8-8-8 (24bit/32bit)
YUV: 4:2:2
MONO: 8bit
YUY2
UYVY
YVYU
Planar Modes: NV12, YV12
Colour Spaces BT2020, BT709, BT601 with selectable limited and full range encoding
Update Rate Captured frame rate will match the source providing PCIe bandwidth is not
exceeded. Multi-buered to eliminate tearing artifacts.
Video Modes HDMI 2.0, HDMI 1.4, HDMI 1.3 and DVI
Operating System Support Windows 8/10, Windows 7, Windows XP, Windows Server2008, Windows
Vista, Windows Server 2003
Power Requirements Max current at +3.3V - 1A.
Max current at +12V - 1.6A
Max power ≈ 22W
Operating Temperature 0 to 35 ºC ( 32 to 96ºF)
Storage Temperature -20 to 70 ºC ( -4 to 158ºF)
Relative Humidity 5% to 90% non-condensing
Warranty 3 years
11
Specication
We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions,
therefore the specication may change from time to time.
When a third party Direct3D compatible graphics card is used, data can still be transferred using DMA and achieve similar
performance benets using either GPUDirect (NVidia) or DirectGMA (AMD), but HDCP protected sources cannot be supported
in this case.

Datapath VisionSC-UHD2 Specifications

General

Brand	Datapath
Model	VisionSC-UHD2
Category	PCI Card
Language	English
