Changing Input / Grouping Order
Fig. 4
By default, the Vision software will identify the input order of the cards installed in the system, allocating an input number as
cards are discovered. If the user wishes to change the order either by grouping specic types of Vision cards or by assigning
specic inputs then the J9 links should be set as per the following illustration.
DirectShow users please note:
In addition, if a DirectShow application is used, the dplinks.exe is required to be run to reect the new input conguration
within the DirectShow lter.
To run the dplinks program open the “Run” by clicking on Start button and type dplinks and then press Enter.
The program will run, however no notications are displayed.
6

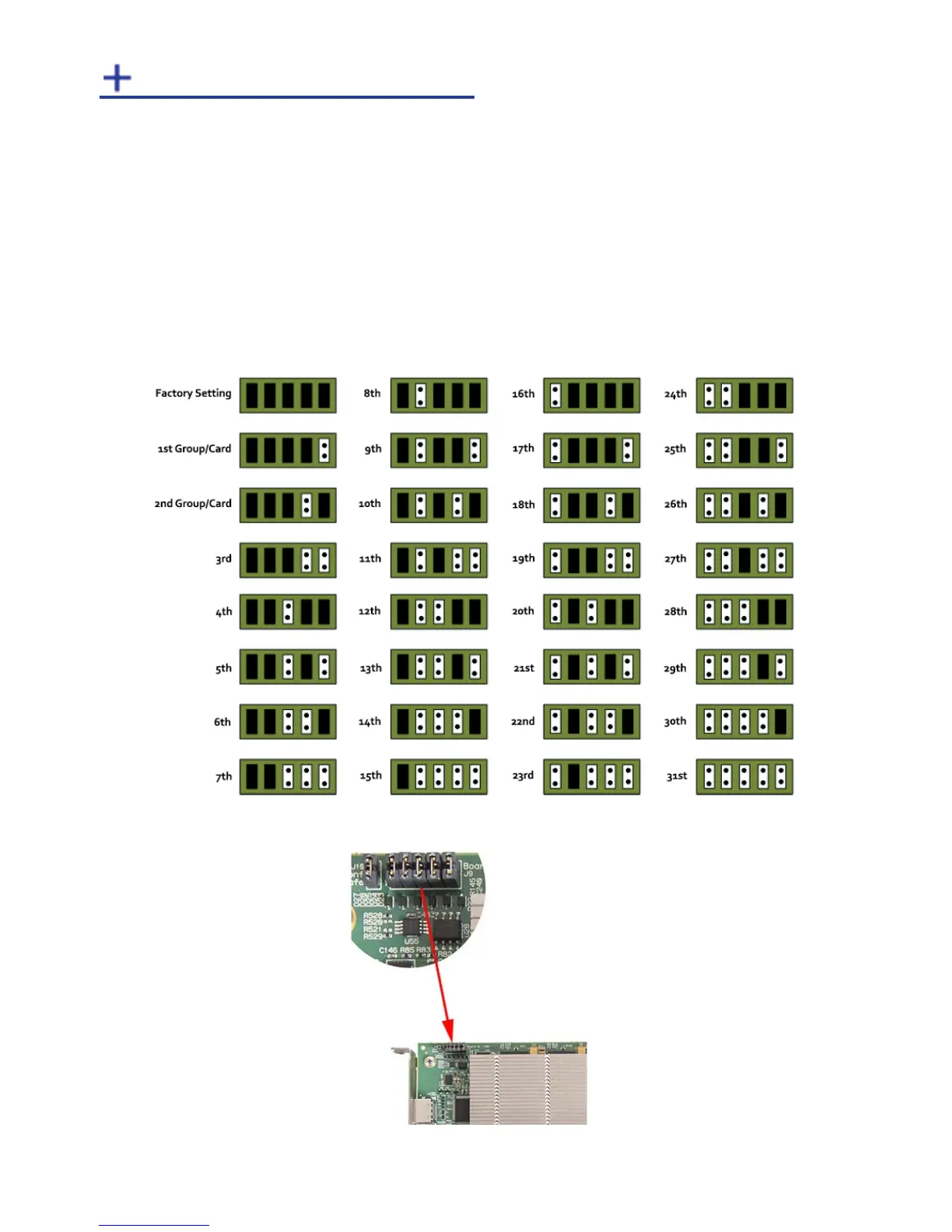

Fig. 3
J9 Links
