Datapath X4 User Guide

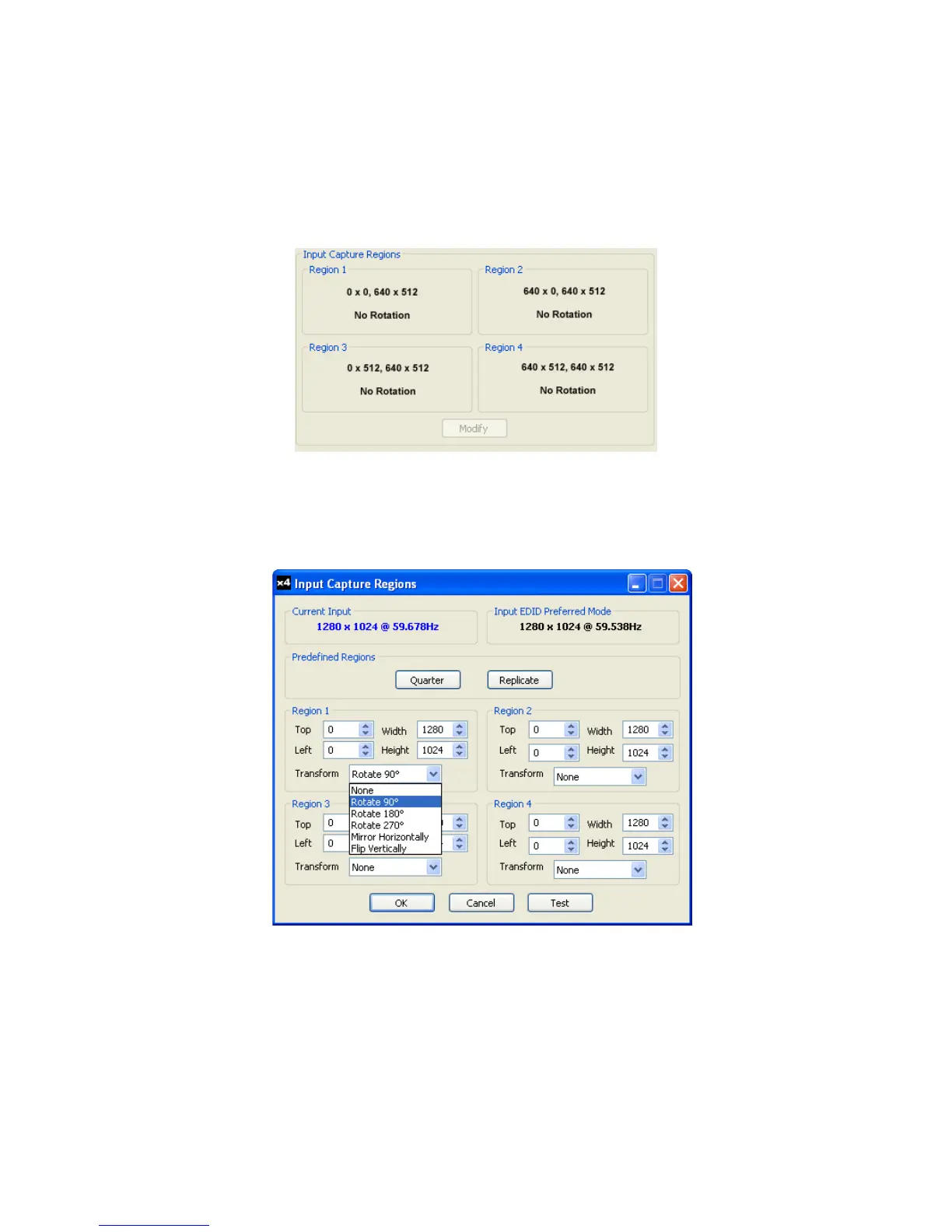

Input Capture Regions
Each output of the x4 can select a dierent region of the input source image. This dialog
(Fig. 9) displays the settings of each region (region 1 corresponds to output 1 etc). The numbers
denote the top, left, width and height coordinates of the region that is to be displayed. Note, these are
described in terms of the current active input resolution. If the input resolution changes, the capture
region coordinates scale to the new input resolution in order to maintain the same proportions.
Fig. 9
To modify any of these settings click on Modify to display the edit dialog (Fig. 10).
Fig.10

Datapath X4 Specifications

General

Number of outputs	4 outputs
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 35 °C
Product color	Black
Output voltage	5 V

Weight and Dimensions

Depth	175 mm
Width	235 mm
Height	44 mm
