Datapath X4 - Editing Input EDID Timings and Standards

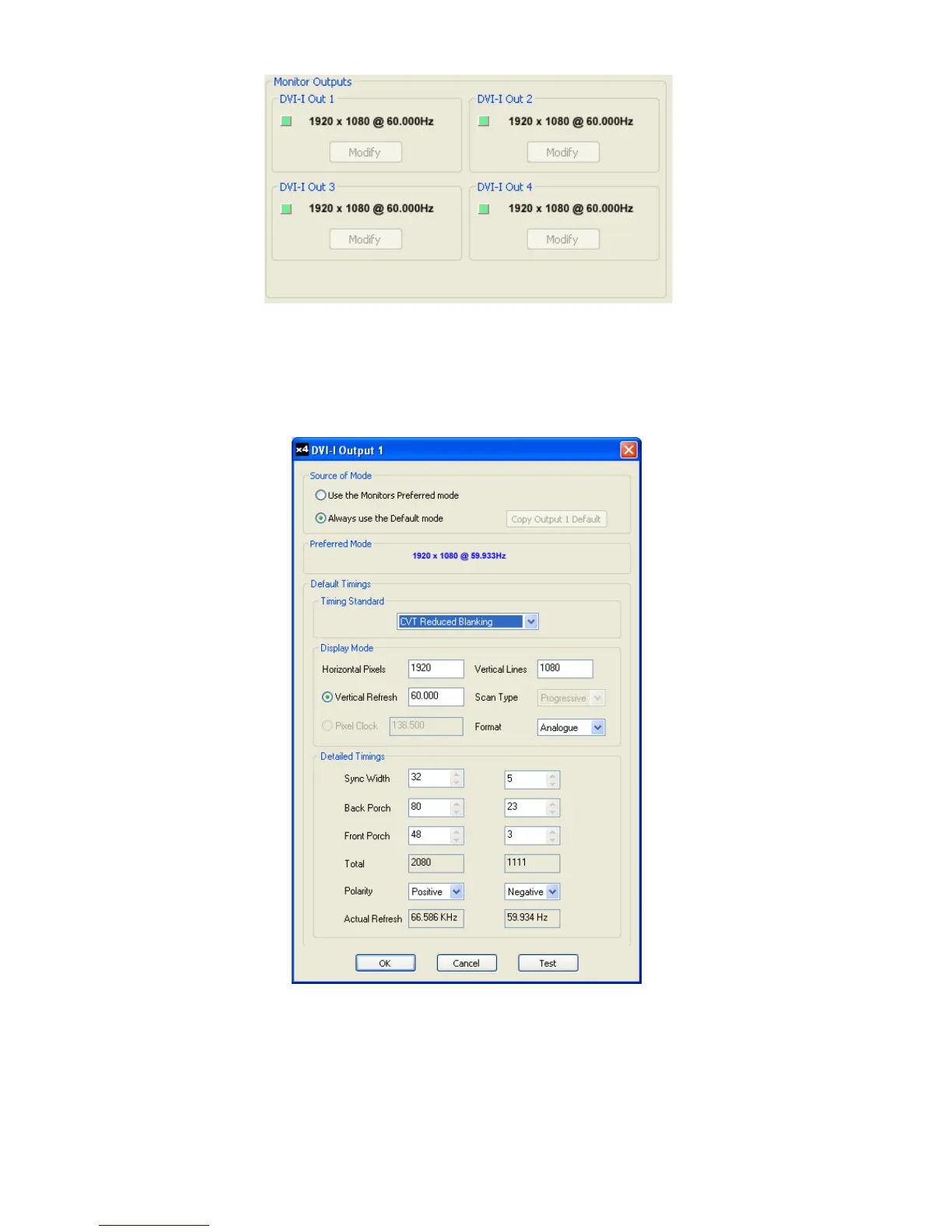

Fig.11
Individual monitor outputs can be congured by clicking on the corresponding Modify button.
This will bring up a timing dialog similar to that of the input timings. This dialog is shown in
Fig.12.
Fig.12
