Datapath X4 - Individual Monitor Output Configuration; Test Pattern Generator

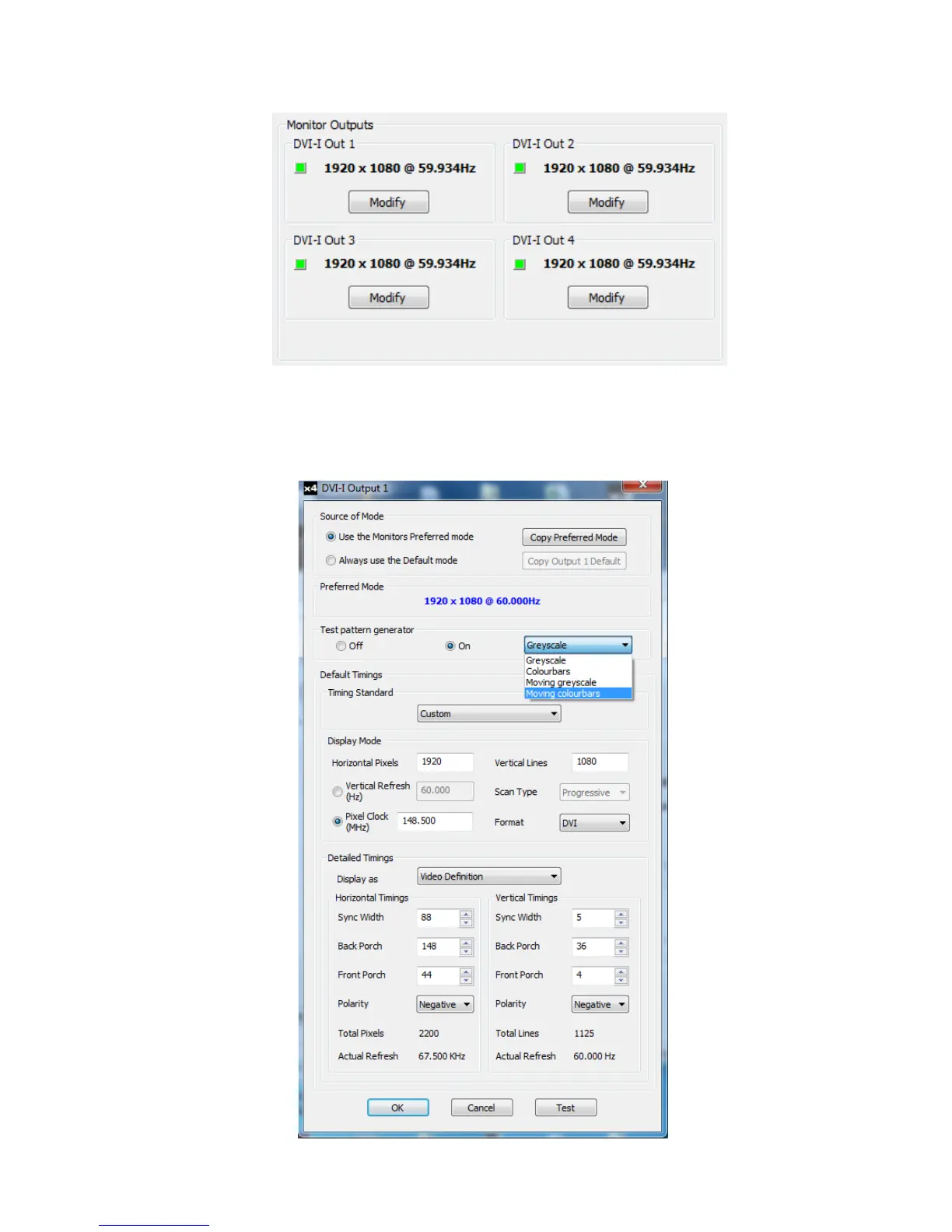

Individual monitor outputs can be congured by clicking on the corresponding Modify button. This will
bring up a timing dialog similar to that of the input timings. This dialog is shown in Fig.14.
24
Fig.13
Grey
The outputs are NOT frame-locked.
Fig.14
