Datavan G-615 - Main Board Jumper Setting and Connector Definition

PRE PARING FOR THE INSTALLATION
23

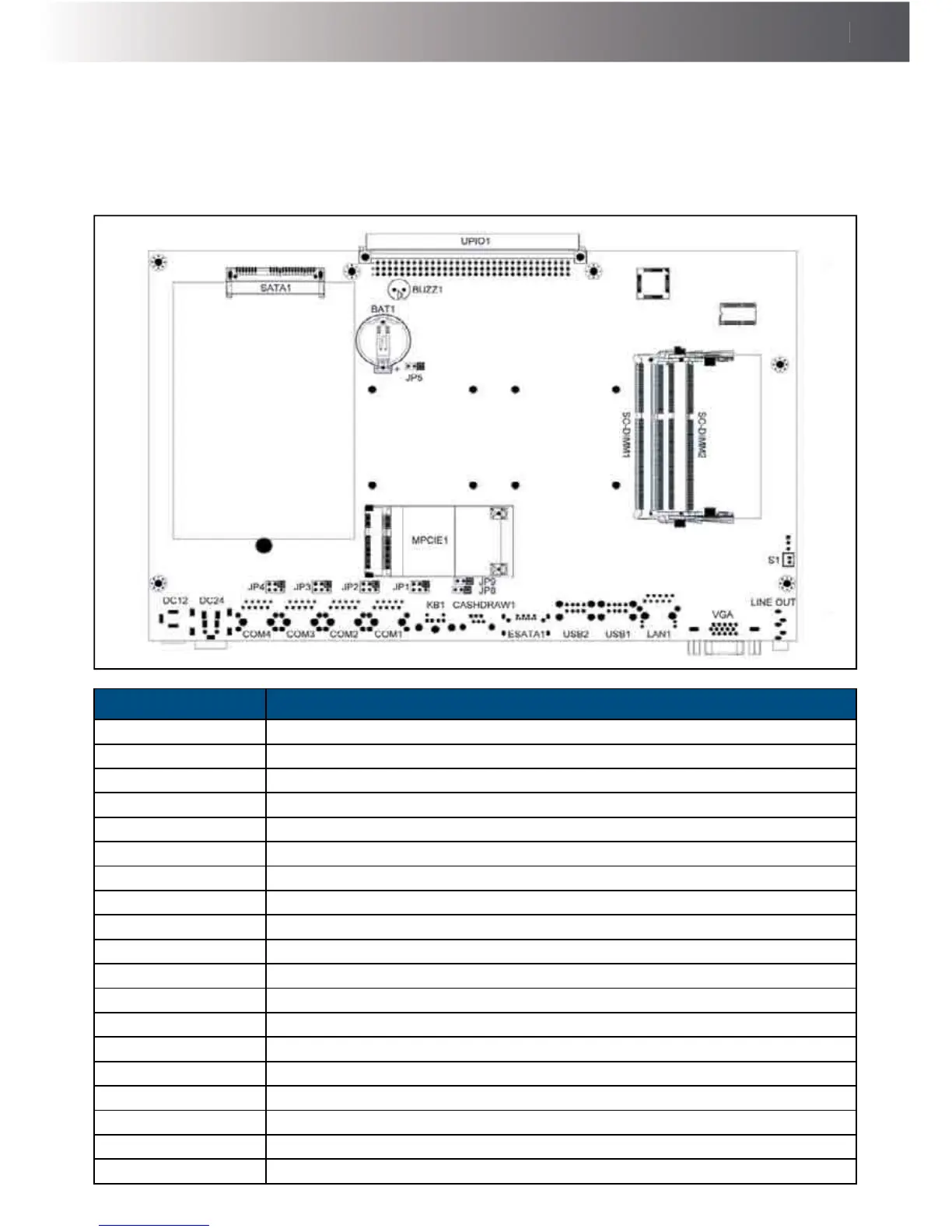

Main Board Jumper Setting and Connector
'H¿QLWLRQ
G-615
Connector/Jumper Description
LINE OUT Audio line output connector
VGA VGA output connector
LAN1 Gigabit LAN connector
USB1 USB2.0 *2 connector
USB2 USB2.0 *2 connector
ESATA1 E-SATA + USB connector
CASHDRAW1 Cash Drawer output
KB1 PS/2 keyboard connector
COM1 COM1 connector
COM2 COM2 connector
COM3 COM3 connector
COM4 COM4 connector
DC24 24V DC power input
DC12 12V DC power output
SATA1 S-ATA connector for HDD/SSD
UPIO1 M/B signal convergence connector
MPCIE1 Mini PCIe connector
S1 Power SW connector
LPT1 Parallel port connector (optional)
