PRE PARING FOR THE INSTALLATION
Extension I/O Brick Board Connector
(For G-715SR only)

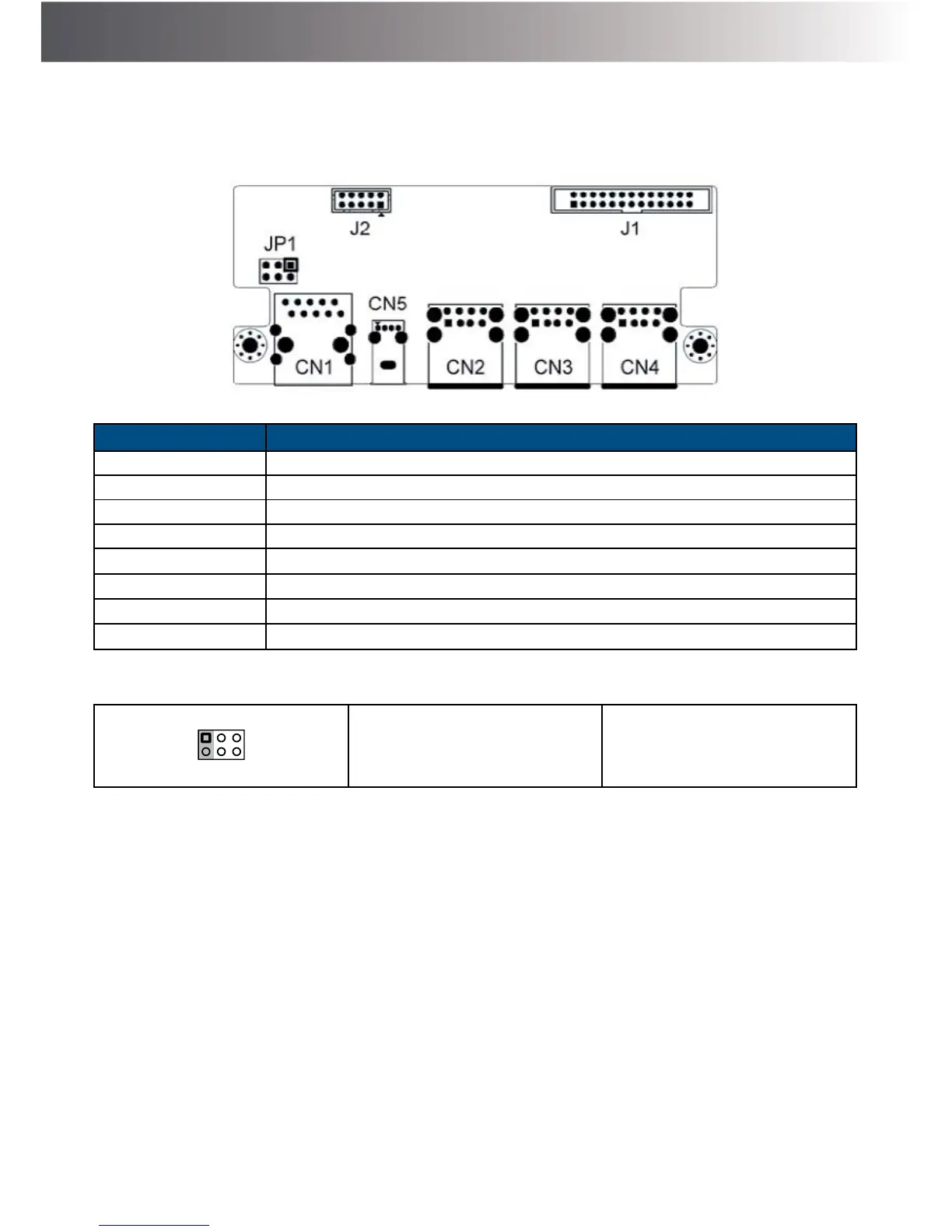

Connector/Jumper Description
J1 USB signal input
J2 COM4 signal input
JP1 COM 4 D-SUB PIN9 VOLTAGE SELECT
CN1 COM4 connector
CN2 24V Powered USB connector
CN3 12V Powered USB connector
CN4 12V Powered USB connector
CN5 USB 2.0 Vertical connector
JP1 COM 4 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V
3-4 +5V
5-6 +12V
Default = 0V
