PRE PARING FOR THE INSTALLATION
JP9 COM 1 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V / RI
3-4 = +5V
5-6 = +12V
Default = 0V
JP12 Keyboard VOLTAGE SETTING
1 2 3
1-2 = 5VSB
2-3 = +5V
Default = Normal
JP13 CASH DRAWER VOLTAGE SETTING
1 2 3
1-2 = +24V
2-3 = +12V
Default = Normal

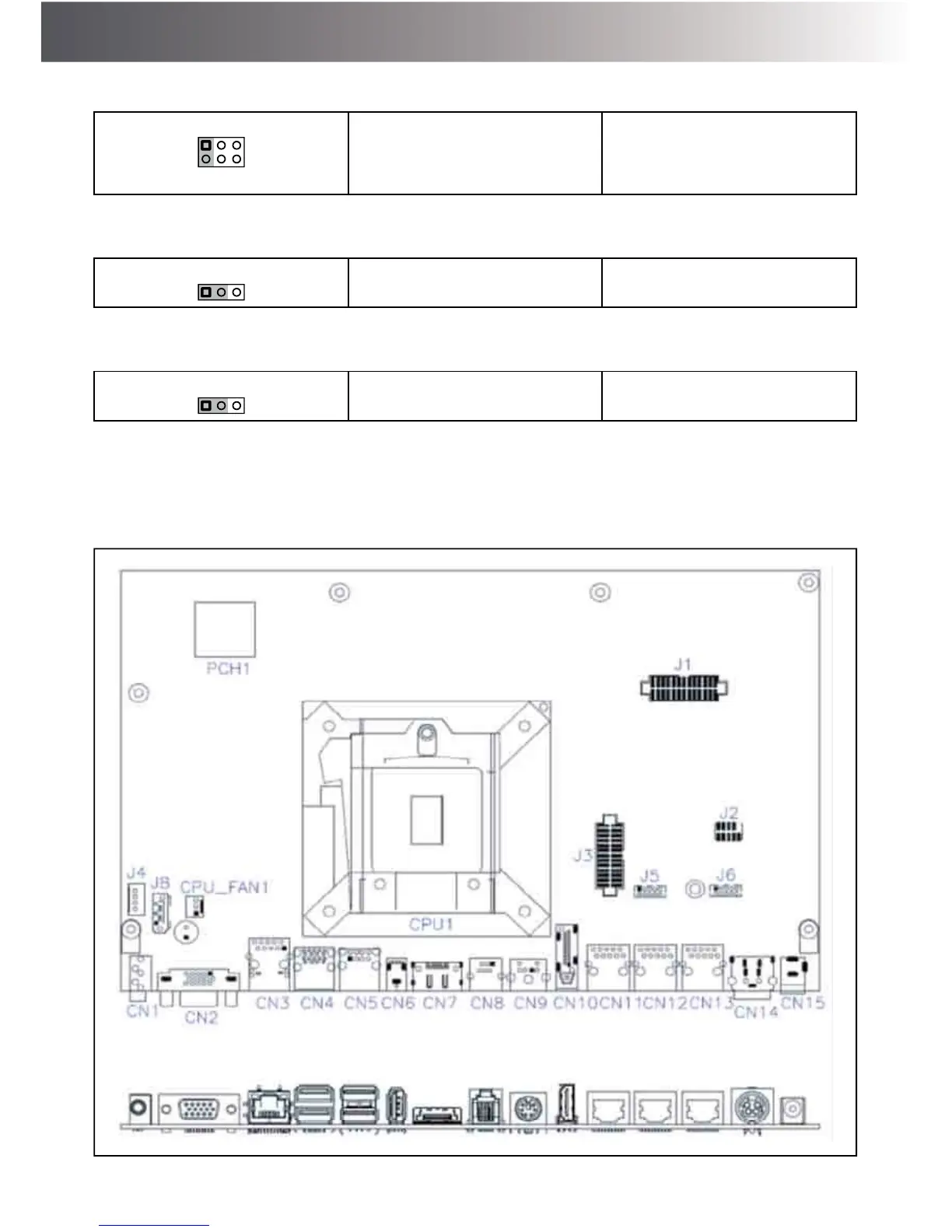

G-715S/G-715SR
Top View
