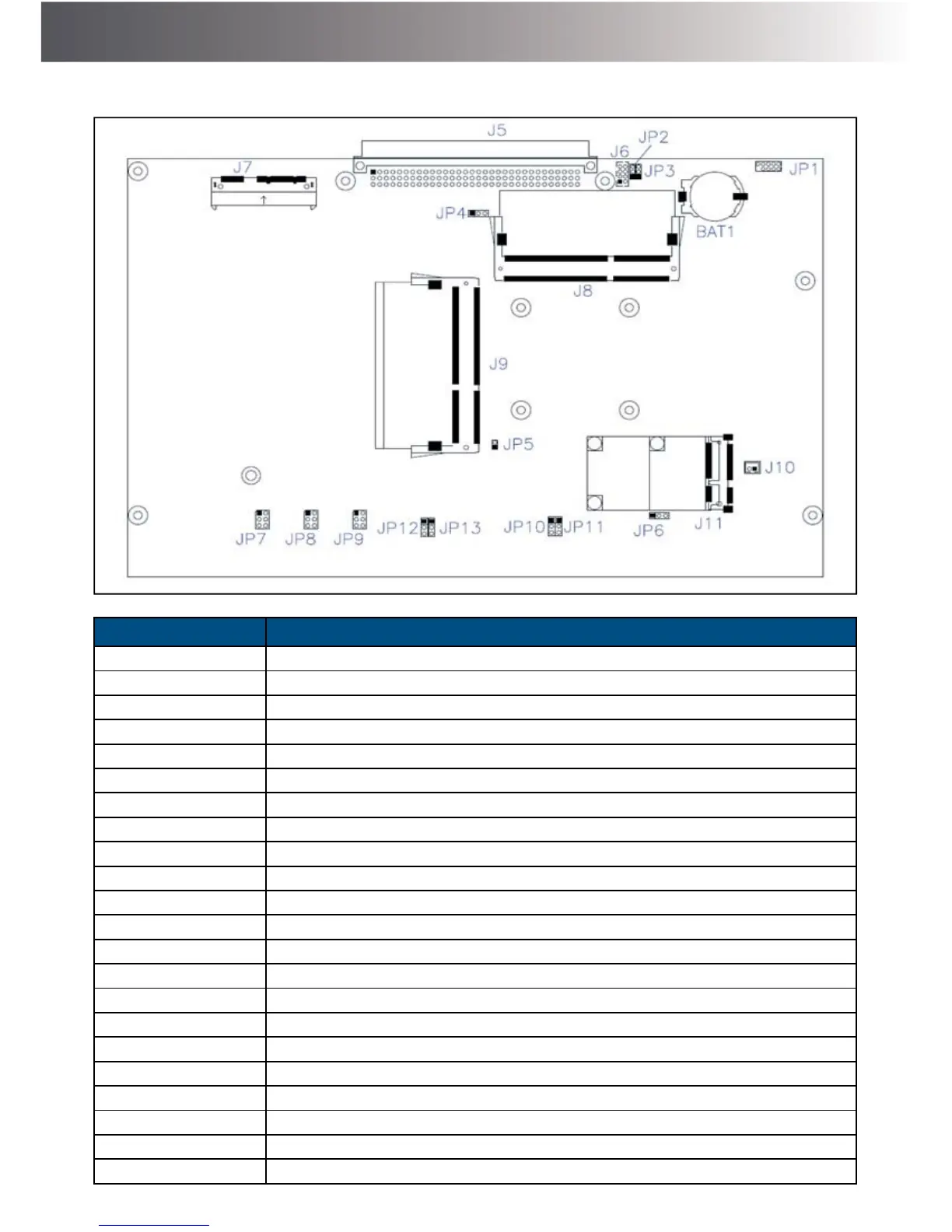

Bottom View
Connector/Jumper Description
CN1 HDMI Vertical connector
CN2 COM1 connector Gigabit LAN connector
CN3 COM1 connector
CN4 COM2 connector
CN5 COM3 connector
CN6 USB3.0 *2 connector
CN7 USB2.0 *2 connector
CN8 Cash Drawer output
CN9 PS/2 keyboard connector
CON10 12V DC power output
CON11 E-SATA + USB connector
CON12 24V DC power input
CON13 Audio line output connector
CON14 VGA output
J1 80 Port Debug Connector (Factory use only)
J2 Parallel Port Connector (optional)
J3 / J4 COM5/4 RS232 Serial Port
J5 M/B Signal convergence connector
J6 System Function Connector
J7 SATA3.0 2.5” HDD/SSD 7+15PIN Dock
J8 DDR3L SO-DIMM (channel 1)
J9 DDR3L SO-DIMM (channel 2)
