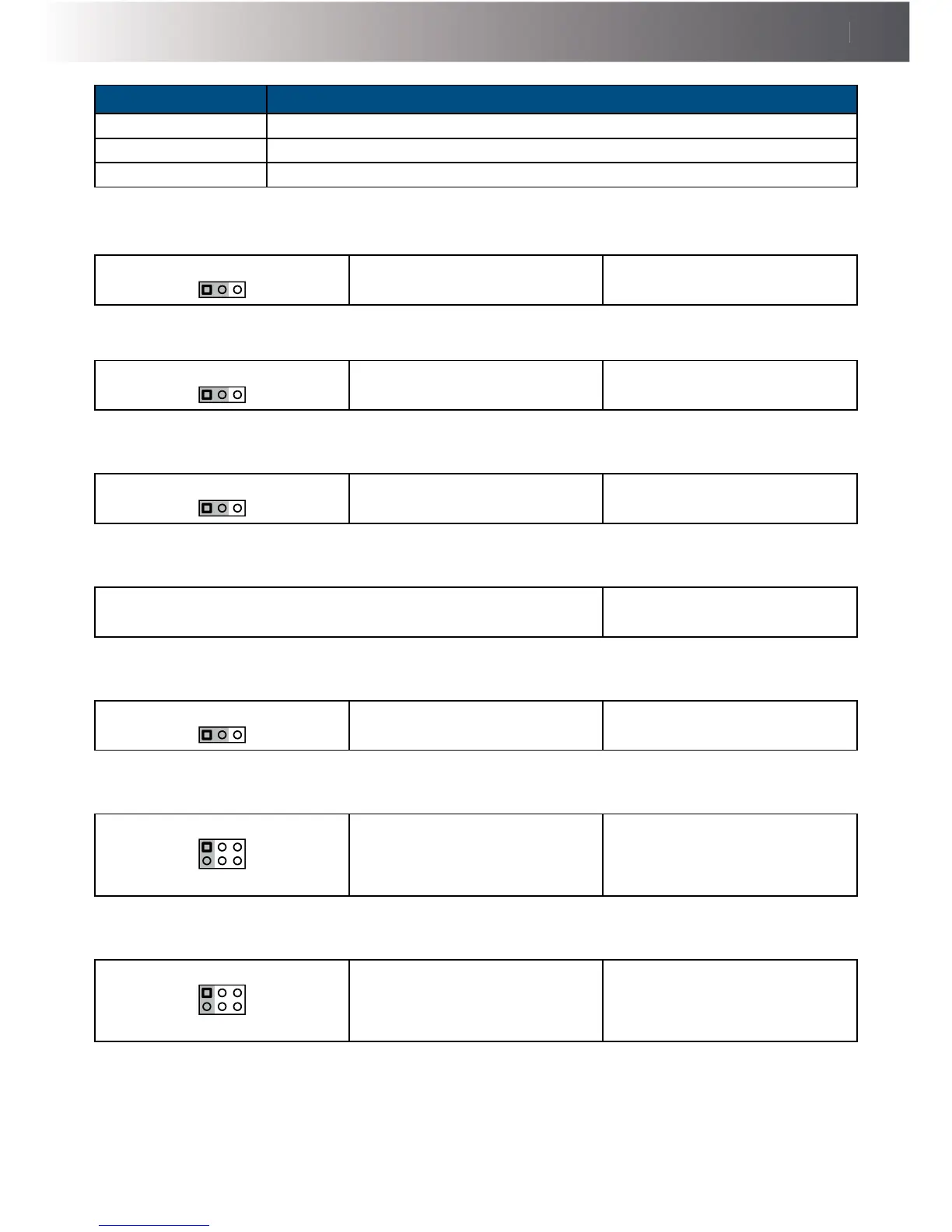

Connector/Jumper Description
J10 Power Button Connector
J11 Mini PCIE V1.2 Connector
JP1 SPI Flash Tool Connector (Factory use only)
JP2 ME CLEAR JUMPER
1 2 3
1-2 = Normal
2-3 = ME clear
Default = Normal
JP3 CMOS CLEAR JUMPER
1 2 3
1-2 = Normal
2-3 = CMOS clear
Default = Normal
JP4 LVDS VOLTAGE SETTING
1 2 3
1-2 = +3.3V
2-3 = +5V
Default = Normal
JP5 Flash Descriptor Security Override (Factory use only)
Open = Disabled
Close = Upgrade Mode
Default = Normal
JP6 / JP10 / JP11 USB VOLTAGE SETTING
1 2 3
1-2 = +5VSB
2-3 = +5V
Default = Normal
JP7 COM 3 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V / RI
3-4 = +5V
5-6 = +12V
Default = 0V
JP8 COM 2 D-SUB PIN9 VOLTAGE SELECT
1 3 5
2 4 6
1-2 = 0V / RI
3-4 = +5V
5-6 = +12V
Default = 0V
