INTRODUCTION
INTRODUCTION

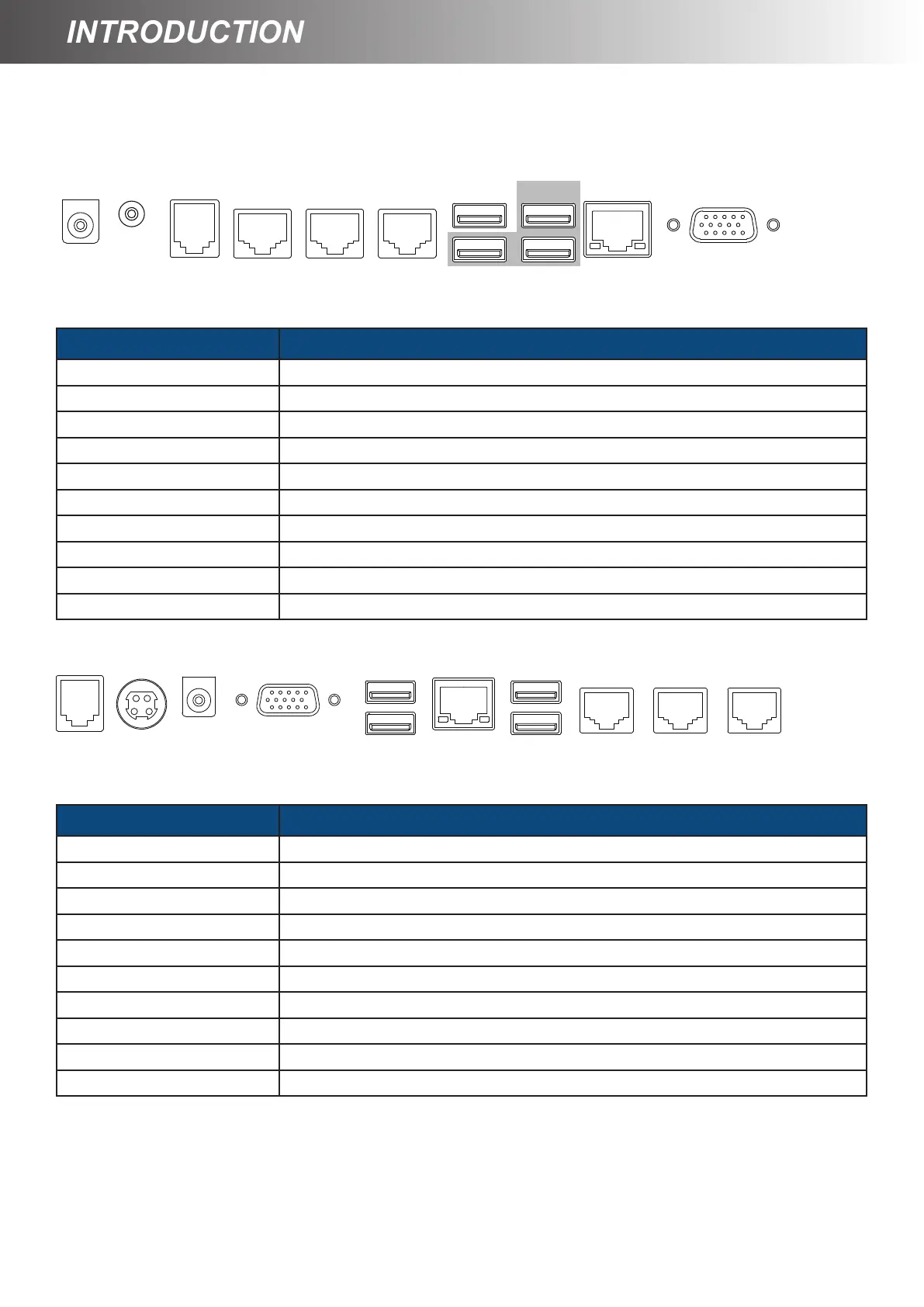

I/O Ports
S-615W
DC1 DC2 DK COM3 COM2 COM1
USB3.0 USB2.0
USB2 USB1 LAN VGA
Item Connector Denition
DC1 DC 12V Output
DC2 DC 12V Input
DK RJ12 Cash Drawer
COM3 RJ50 COM 3 Serial Ports
COM2 RJ50 COM 2 Serial Ports
COM1 RJ50 COM 1 Serial Ports
USB2 USB 3.0 + USB 2.0
USB1 Dual USB 2.0
LAN RJ45 Gigabit LAN
VGA DB-15 VGA Connector
S-715W
DK JS1 JS2
USB1 LAN1 CN1
COM1
VGA1
COM2
COM3
Item Connector Denition
DK RJ12 Cash Drawer
JS1 DC 24V Input
JS2 DC 12V Output
VGA1 DB-15 VGA Connector
USB1 Dual USB 2.0
LAN1 RJ45 Gigabit LAN
CN1 Dual USB 3.0
COM1 RJ50 COM 1 Serial Port
COM2 RJ50 COM 2 Serial Port
COM3 RJ50 COM 3 Serial Port
