PREPARING FOR THE INSTALLATION
INTRODUCTION

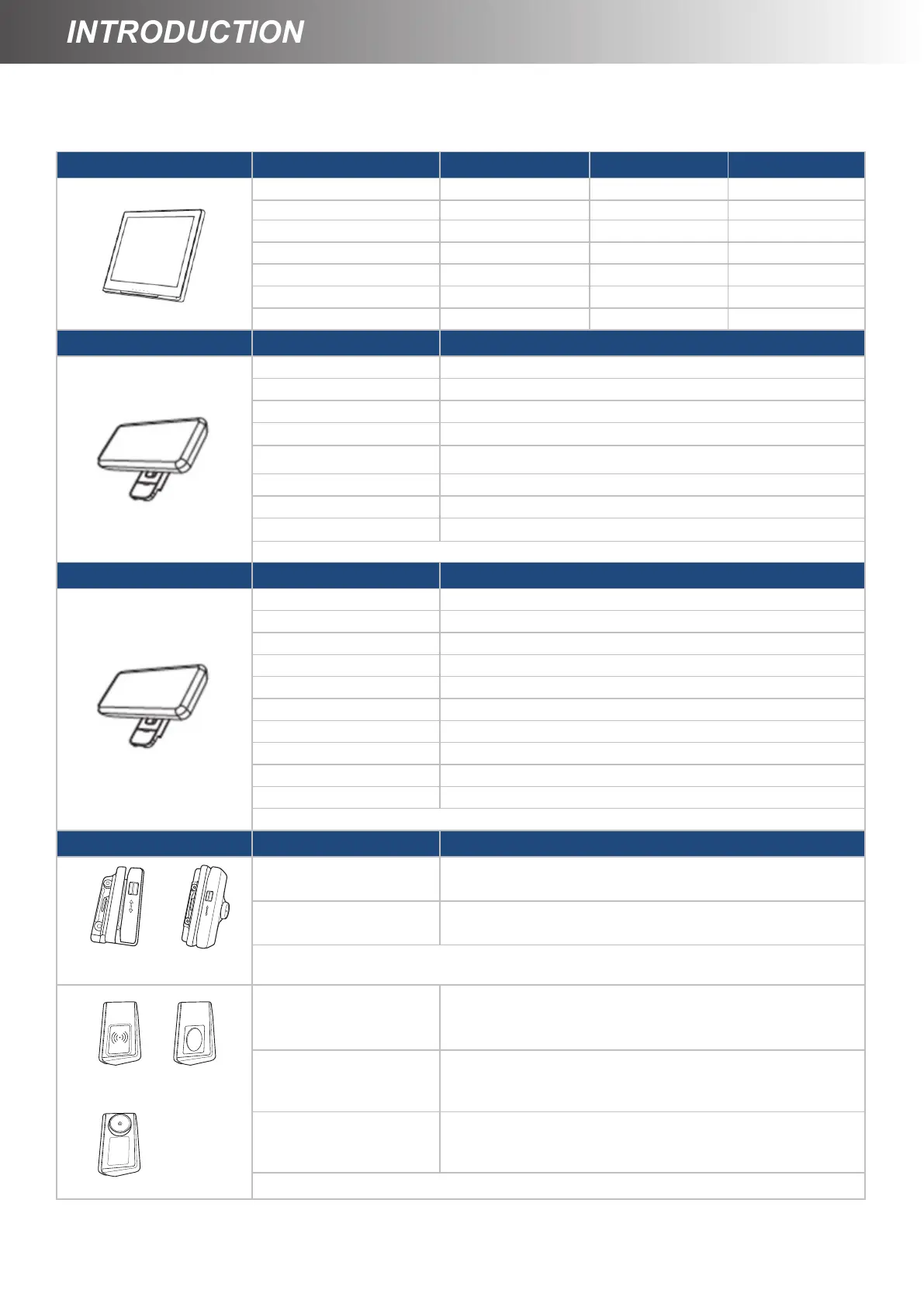

Peripherals Specications
2
nd
LCD display Model No. MN-0810 MN-1090U MN-1510
LCD Panel 8” 10.4” 15”
Resolution 800 x 600 1024 x 768 1024 x 768
Viewing Angle 140° (H) / 125° (V) 85° (H) / 85° (V) 160° (H) / 140° (V)
Response Time 25ms (typical) 25ms (typical) 8ms (typical)
Brightness 250 nits (typical) 350 nits (typical) 250 nits (typical)
Video Input VGA VGA VGA
Power Supply DC 12V DC 12V DC 12V
LCM Model No. CM3000
Polarizer color White
Backlight color Blue
Display Capacity 20 characters x 2 lines
Character format 5 x 8 dots
Character type
International (Default) English-Russia/English-Japanese/Traditional Chinese/
Simplied Chinese (Optional, factory-installed required)
Dot Size 0.93 (W) x 1.11 (H) mm
Input power type 5V DC
Interface RS232
Can be assembled on the same package with the system shipping
VFD Model No. CM7100
Display Method Vacuum Fluorescent Display (VFD)
Polarizer color Yellow green
Backlight color Black
Brightness 500-1000 cd/m2
Display capacity 20 characters x 2 lines
Character format 5 x 7 dot matrix, cursor
Character type 95 Alphanumeric, 32 International characters
Dot size 0.55 (W) X 0.75 (H) mm
Input power type 5V DC
Interface RS232
Can be assembled on the same package with the system shipping
2 in 1 Identication Reader Interface RS232
Magnetic Stripe
Reader (MSR)
MSR + iButton
Reader
MSR
ISO Track 1/2/3 single/dual/ triple tracks of magnetic card, support ANSI/ISO
Standards7810, 7811 1/5, 7812 & 7813. USB HID Keyboard mode interface
MSR + iButton Detector
Dallas DS1990A compliment / With leading / ending programming function.
USB HID Keyboard mode interface
Can be assembled on the same package with the system shipping
RFID
Radio-Frequency
Identification Reader
(RFID)
iButton Reader
Fingerprint
Reader
Biometric
Fingerprint
Recognizer
Digital Personal U. are .U 4500B (Optical Type / Blue Light) Module
Size: Approx. 57.7mm * 35.8mm*11.0mm Compatible with USB 1.1 / 2.0 (Full
Speed). USB HID Keyboard mode interface
RFID reader
Frequency 13.56MHz. ISO14443A card type MIFARE® 1K/4K/8K card type.
Read only. USB HID Keyboard mode interface
iButton Detector
Dallas DS1990A compliment / With leading / ending programming function.
USB HID Keyboard mode interface
Can be assembled on the same package with the system shipping
