3. Connections and Controls

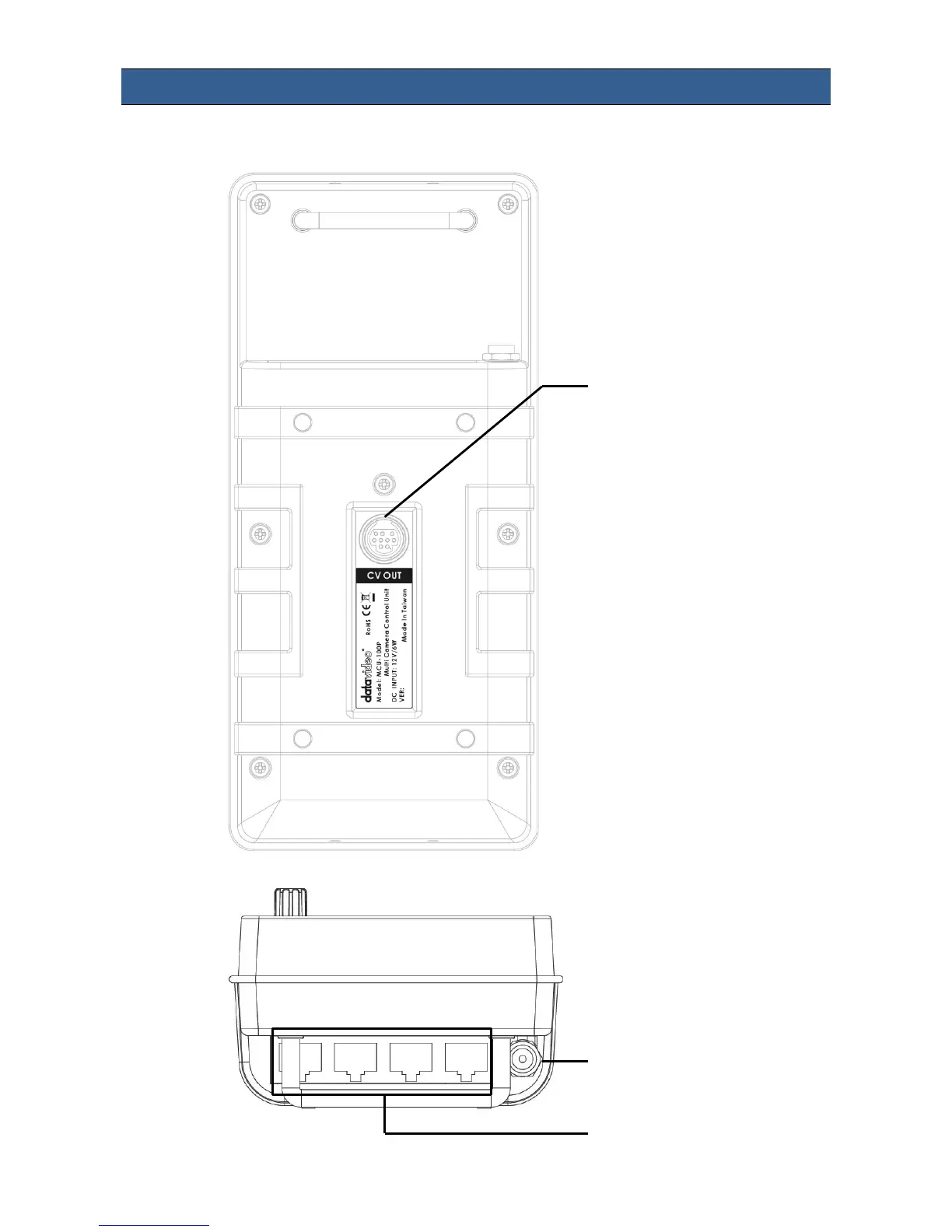

3.1 I/O Panel Connectors
Remote Control
RJ-45 Interface
12V DC Input
This 9 pin Mini Din port can be used
for confidence and composition
monitoring and in some cases to
view the camera’s own LCD/OSD
menus.
To use this feature, please connect
the Mini-Din end of the CB-40 cable
(1 Mini Din to 4 CV Out) to this
port.
CB-40 is an optional accessory.
