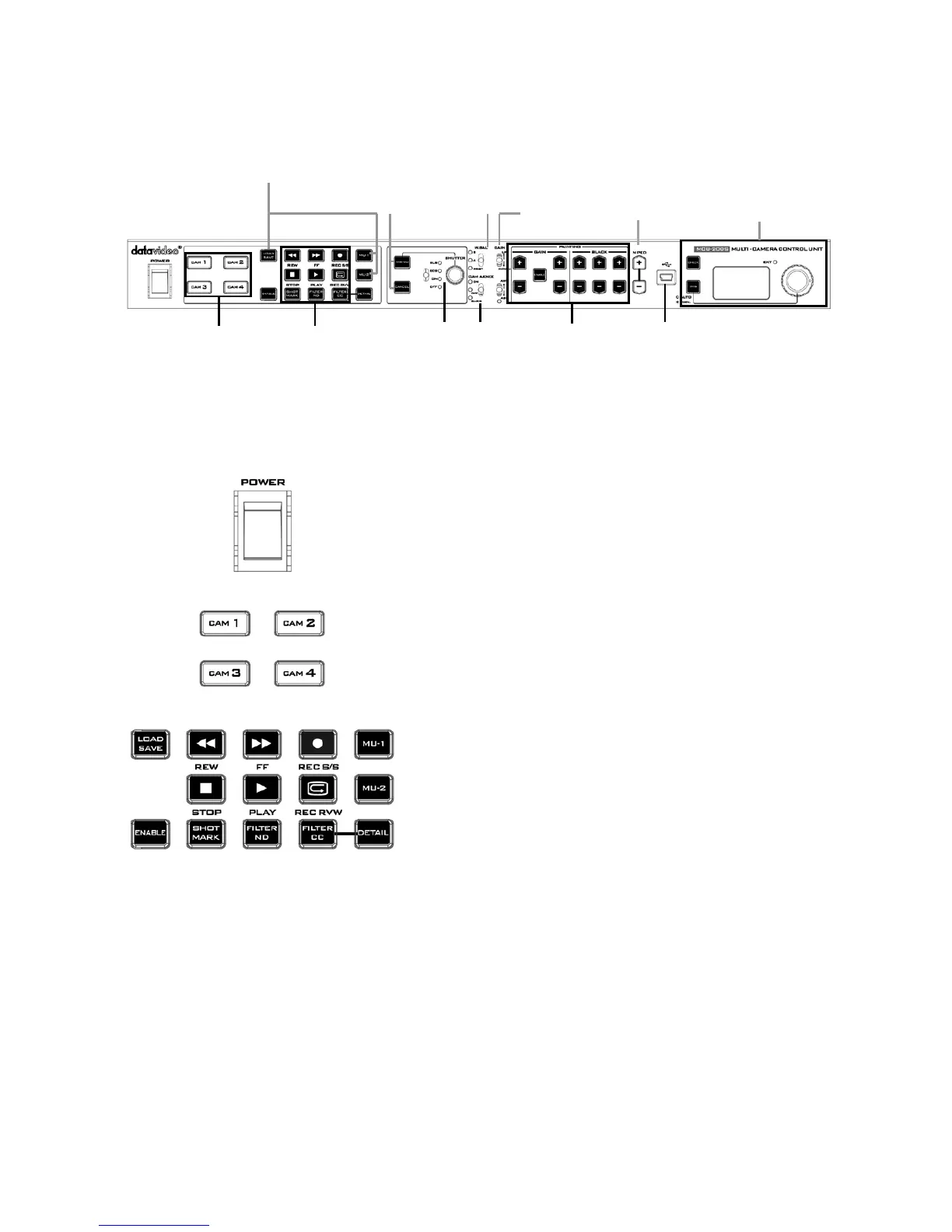

3.2 Front View
Keyboard Control Guide
Power switch
Use this switch to power the MCU-200S On or Off.
Camera selection
Select the button for the camera that you wish to control.
MCU-200S Memory stores
Using the LOAD SAVE button it is possible to transfer the
current setting from one camera to another.
MU-1, MU-
2 can be used to store settings within the
MCU-200S.
Note: The LOAD SAVE / MU1 / MU2 functions are not
applicable to SONY EX3 & PMW-300EX cameras.
Recorder / Playback functions
ENABLE when selected activates the recorder / playback
functions of the chosen camera. This includes rewind
[REW], fast forward [FF], record start/stop [REC S/S], stop,
play and record check [REC RVW].
REC RVW makes it possible to check what has just been
recorded (2 seconds REC review) by pressing this button
during REC pause.
Camera
Selection
Load / Save
Recorder /
Playback
Functions
Menu
Control
Shutter
Selection
Camera
Video
Signals
Enable
Gain
White /
Black
Balance
Painting
Adjustment
Master
Pedestal
Control
Iris Adjustment /
LED Display
Firmware
UPDATE
