Datavideo RMC-185 User Manual

8

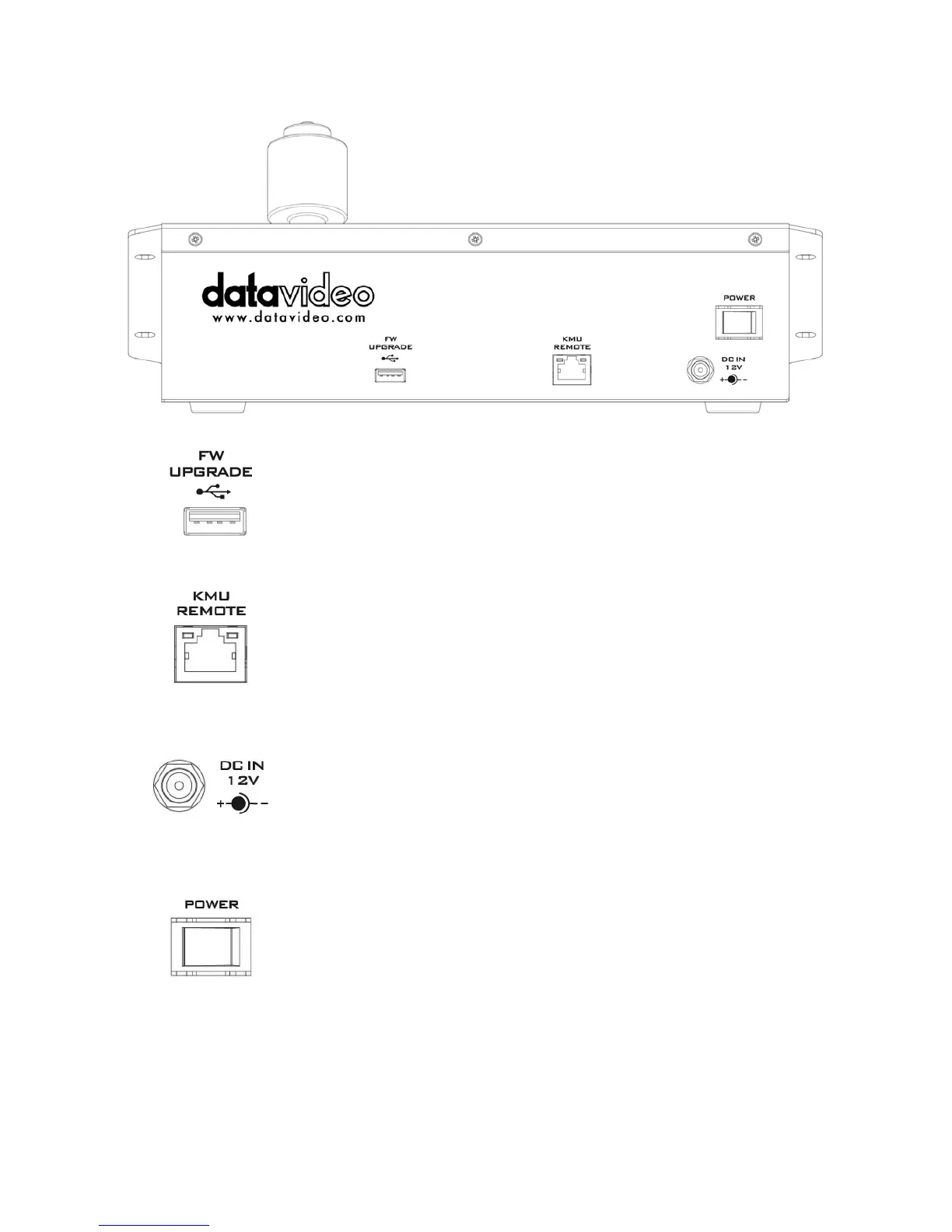

2.2 Rear Panel - Connections
Firmware Upgrade
USB type A port
for connection to a computer during the firmware
upgrade process.
RJ-45 port to connect the KMU-100
The RJ-45 ports are provided on the RMC-185 rear to connect the KMU-
100. The communication protocol is RS-422, so use an RJ-45-to-DSub
cable to connect the RMC-185 to the RS-422 port located on the KMU-
100 rear panel.
DC In Socket
Connect the supplied 12V 0.5A PSU to this socket. The connection can
be secured by screwing the outer fastening ring of the DC In plug to the
socket.
Power On/Off Switch
Switches the device ON / OFF.

Datavideo RMC-185 Specifications

General

Brand	Datavideo
Model	RMC-185
Category	Controller
Language	English
