Connecting the supply media
Cooling lubricant
2
Setup instructions neo
1.21
DATRON AG
2-5
Data

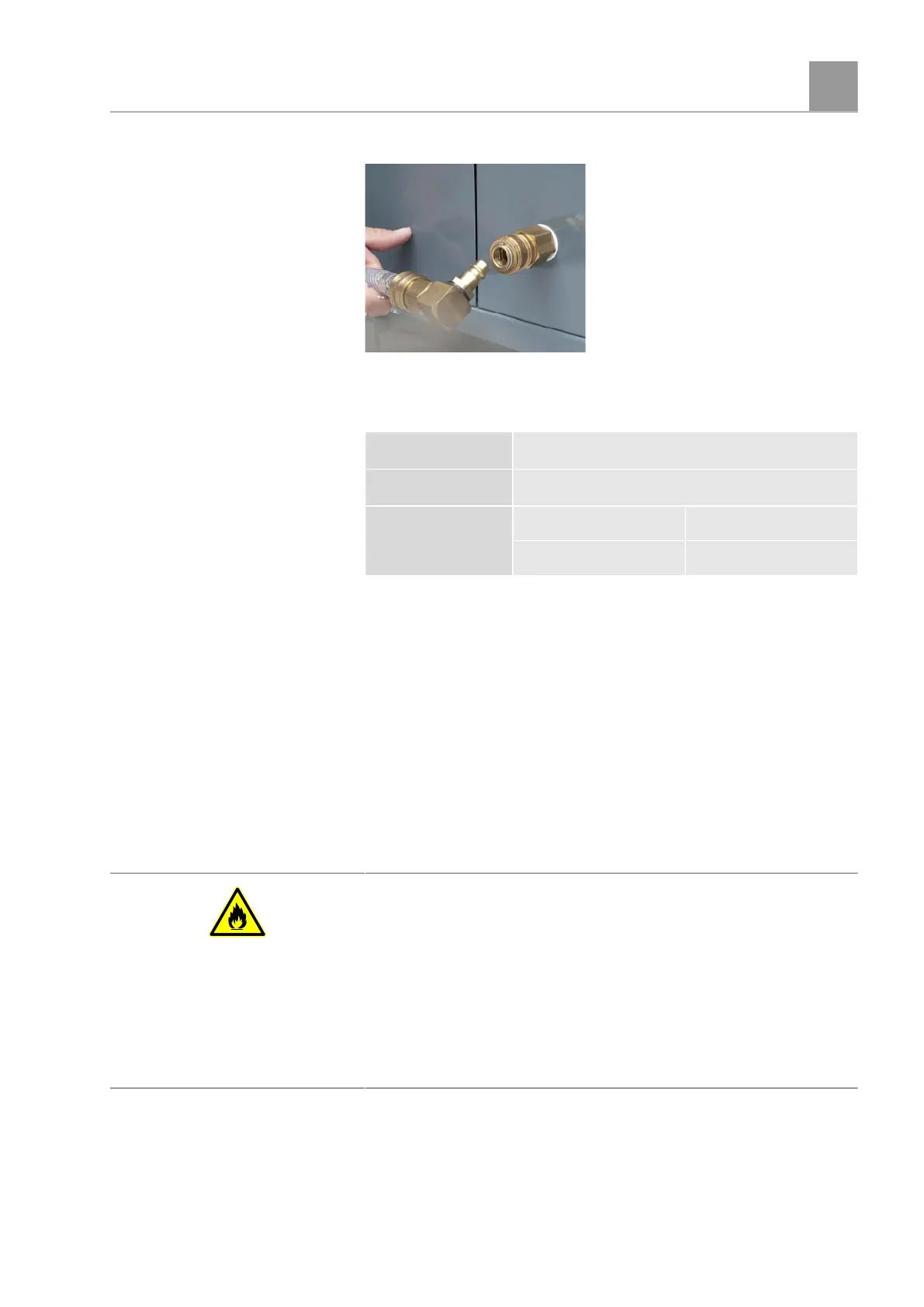

Fig. 2-3: Compressed air connection 1/2" rapid action hose
coupling
Required pressure
7 to 10 bar
Connection
1/2" rapid action hose coupling (NW 7.2 mm)
max. 300 l/min Machine
Compressed air
consumption
approx. 100 l/min Compressed air gun
Compressor
Design your compressed air supply so that there is a continuous
supply available to the DATRON machine. Depending on the
type of compressor, the capacity must lie much higher than the
consumption of the machine and the supply buffered via a boiler,
so that the compressor has sufficient cooling-off time available.
Please have the manufacturer help you with the design of the
compressor.
2.6 Cooling lubricant
Select a suitable cooling lubricant depending on the application.
WARNING
In the following cases, ethanol is not permissible as a cooling
lubricant:
■
Ethanol must not be used as a cooling lubricant when
machining steel or other metals that generate sparks during
machining. Danger of burns due to spark formation! Use a
different suitable cooling lubricant (e.g. fatty alcohol).
■
Ethanol is not permitted as a cooling lubricant when suctioning
chips. Danger of explosion in the vacuum cleaner!
