4: Technical Description
4-10 PRC-BC4-MS
4.5 Display Board
The Display board includes all the FAULT, CHARGING, and READY LEDs
for each charging station on the PRC-BC4.

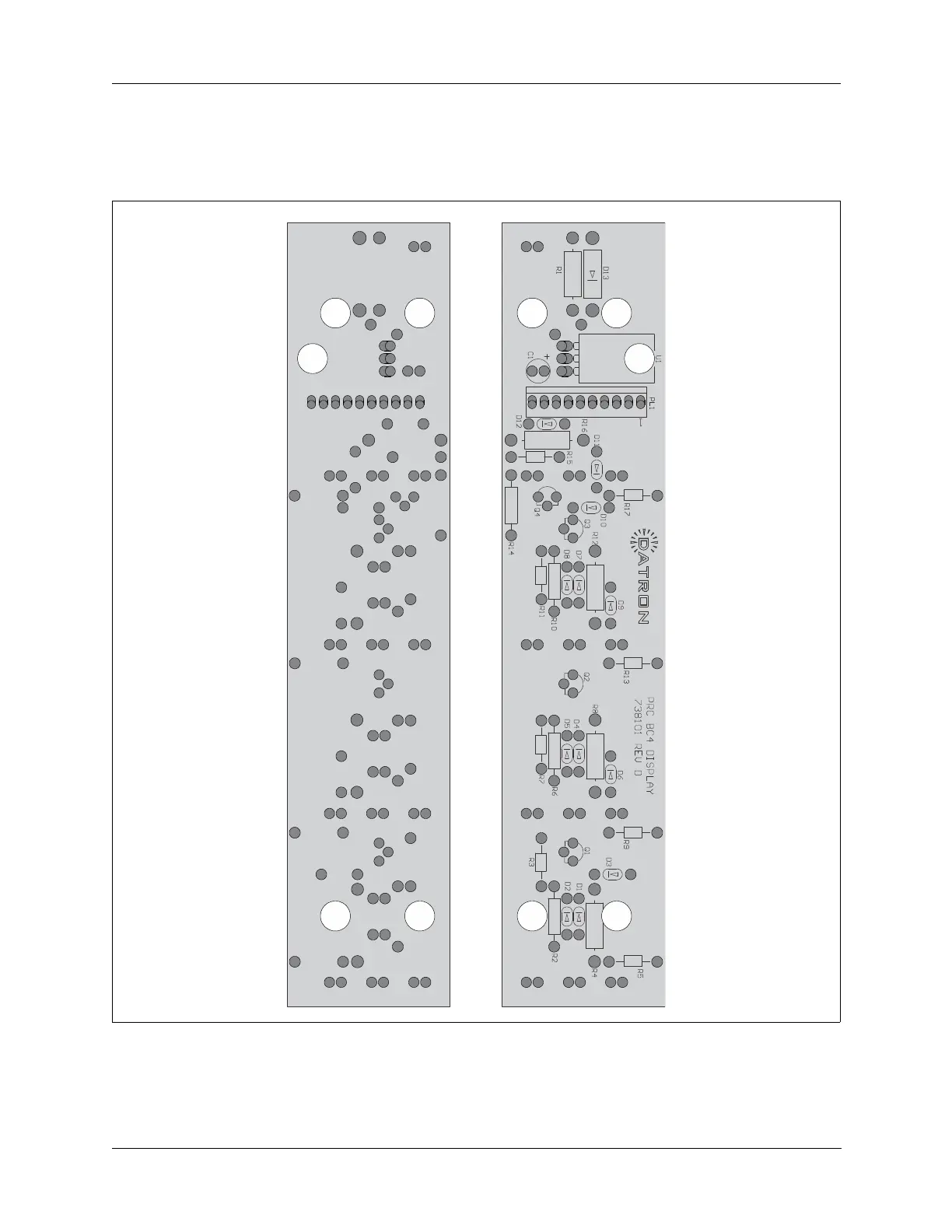

Figure 4-3 Display Board Component Locations (738101 Rev. D)
