Brakes
Datsun
1 RETAINER
2 WIPER SEAL
3 PISTON
SEAL
4 PISTON
5 HOLDDOWN
PIN
6 SPRING
7 SUPPORT BRACKET
8 CALIPER PLATE
9 CLIP
10 BLEEDER SCREW
11 CYLINDER
12 TORSION
SPRING
13 PAD
14 MOUNTING BRACKET
15 PIVOT PIN

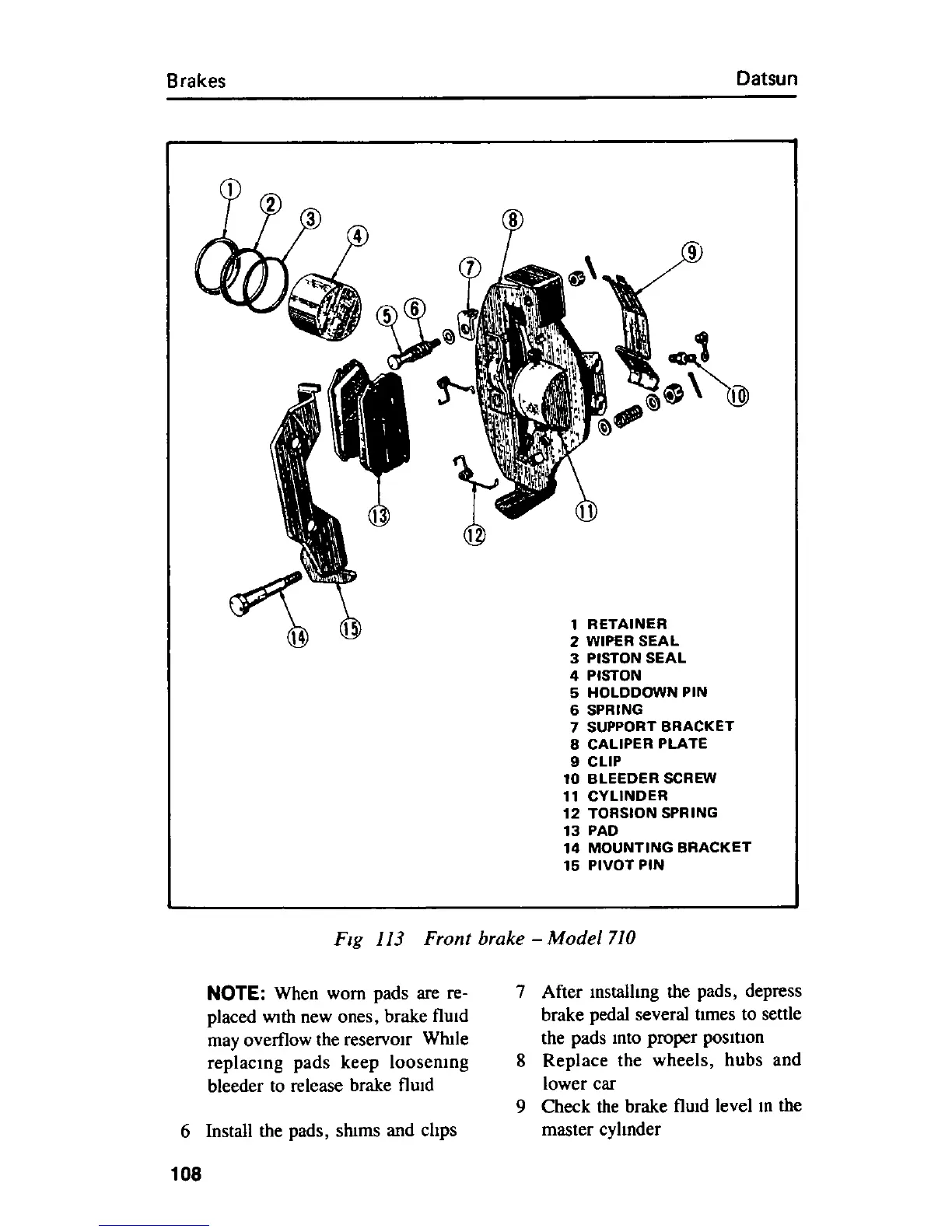

Fig
II3 Front brake Model 70
7 After
mstalhng
the
pads depress
brake
pedal
several times to settle
the
pads
mto
proper pOSItIOn
8
Replace
the wheels hubs and
lower
car
9 Check the brake flUid level 10
the
master
cyhnder
NOTE When
worn
pads
are re
placed
With new ones brake
flUid
may
overflow the reservOir While
replacmg pads keep loosemng
bleeder
to
release
brake
flUid
6 Install the
pads
slums
and
chps
