Datsun B210 User Manual

Datsun
Brakes
REAR DRUM BRAKE
SHOES
REPLACEMENT
If the
parkmg
brake fails to hold the
car
when
apphed
or If
the
rear wheels
are
nOIsy dunng brakmg
the
possibil
Ity
eXists
that
the
brake
shoes
are worn
to
the
polOt
of
replacement
If
the
shoes
are
worn to
wlthm 0 8 mm
1 32
10
of
the nvet
heads
they
should be
re
placed
Further
operation
10
thiS condl
l10n
will lead to senous
sconng
of
the
drums and
make
It
necessary
for
them
to
be
macluned Here s how
to
replace
the shoes
I Raise rear of
car and
place
on
safety
stands
2
Remove
l1re and
wheel
assembly
3 Remove
brake drum If
drum
IS
hard
to remove
use 8 mm
5 16
10
diameter
bolts
to
dnve drum
out
4
Tum
pm
900
and
remove anl1 rattle
spnngs Fig
114
5 Remove return
spnngs
and brake
shoes
InstallatIOn IS the
reverse
of
removal
1 BACKING
PLATE
2
RETURN SPRING
ADJUSTER
SIDE
3 BRAKE SHOE ADJUSTER
4 BRAKE SHOE ASSEMBLY
5 ANTI
RATTLE
PIN
6 WHEEL CYLINDER LEVER
7 REAR WHEEL CYLINDER
8 RETURN
SPRING
CYLINDER
SIDE
9
BLEEDER
10
LOCK PLATE
A
11 LOCK
PLATE
B
12
LOCK PLATE
C AND D
13
DUST COVER

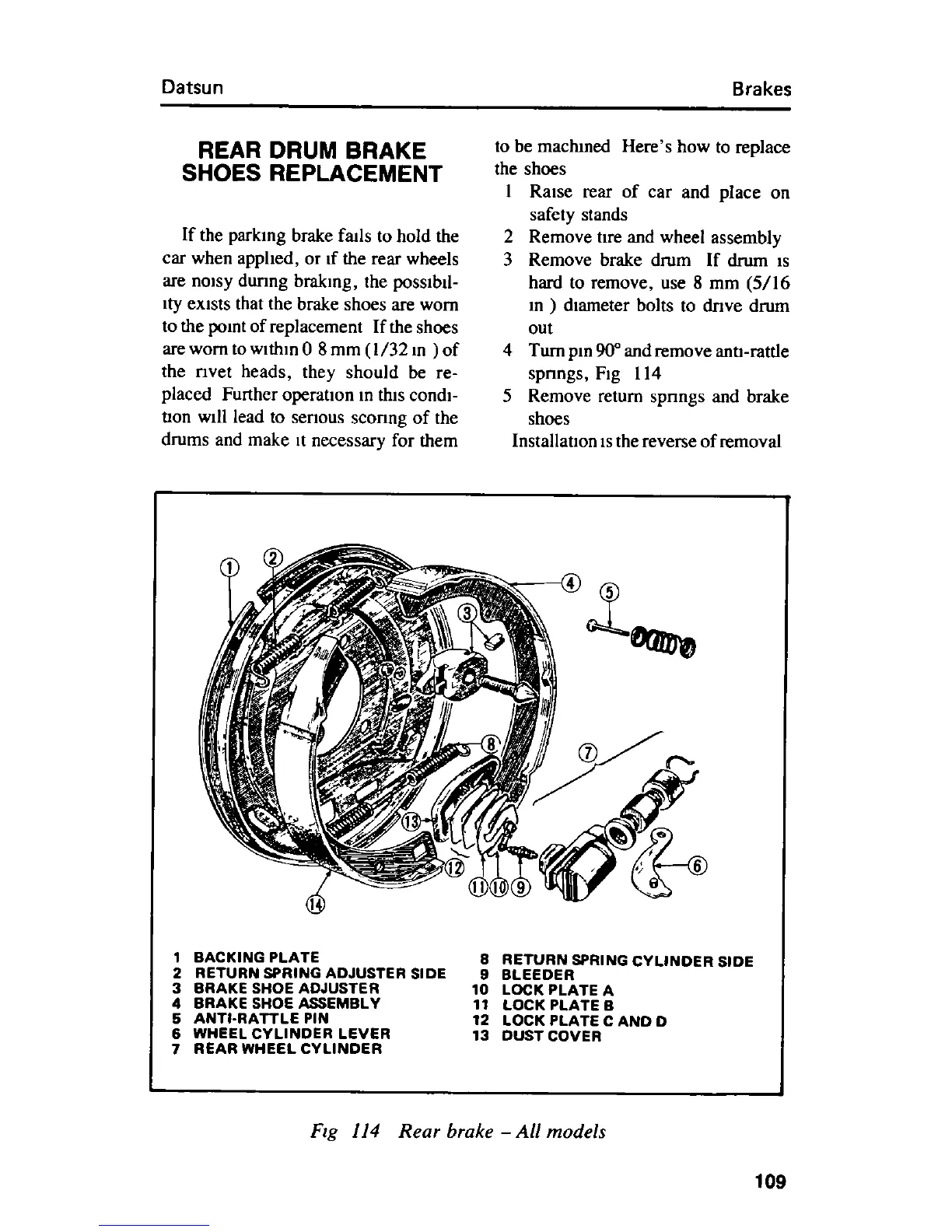

Fig
114 Rear brake All models
109
