Datsun B210 - Page 62

Datsun
Fuel
System
1 FUEL PUMP CAP
2 CAP GASKET
3 VALVE PACKING
ASSEMBLY
4 FUEL PUMP VALVE
ASSEMBLY
5 VALVE RETAINER
6 DIAPHRAGM ASSEMBLY
7 DIAPHRAGM SPRING
8 PULL ROD
9 LOWER BODY SEAL
WASHER
10 LOWER BODY SEAL
11 INLET
CONNECTOR
12 OUTLET
CONNECTOR
13
ROCKER ARM SPRING
14 ROCKER
ARM
15
ROCKER
ARM SIDE PIN
16 FUEL PUMP
PACKING
17
SPACER
FUEL PUMP
TO CYLINDER BLOCK

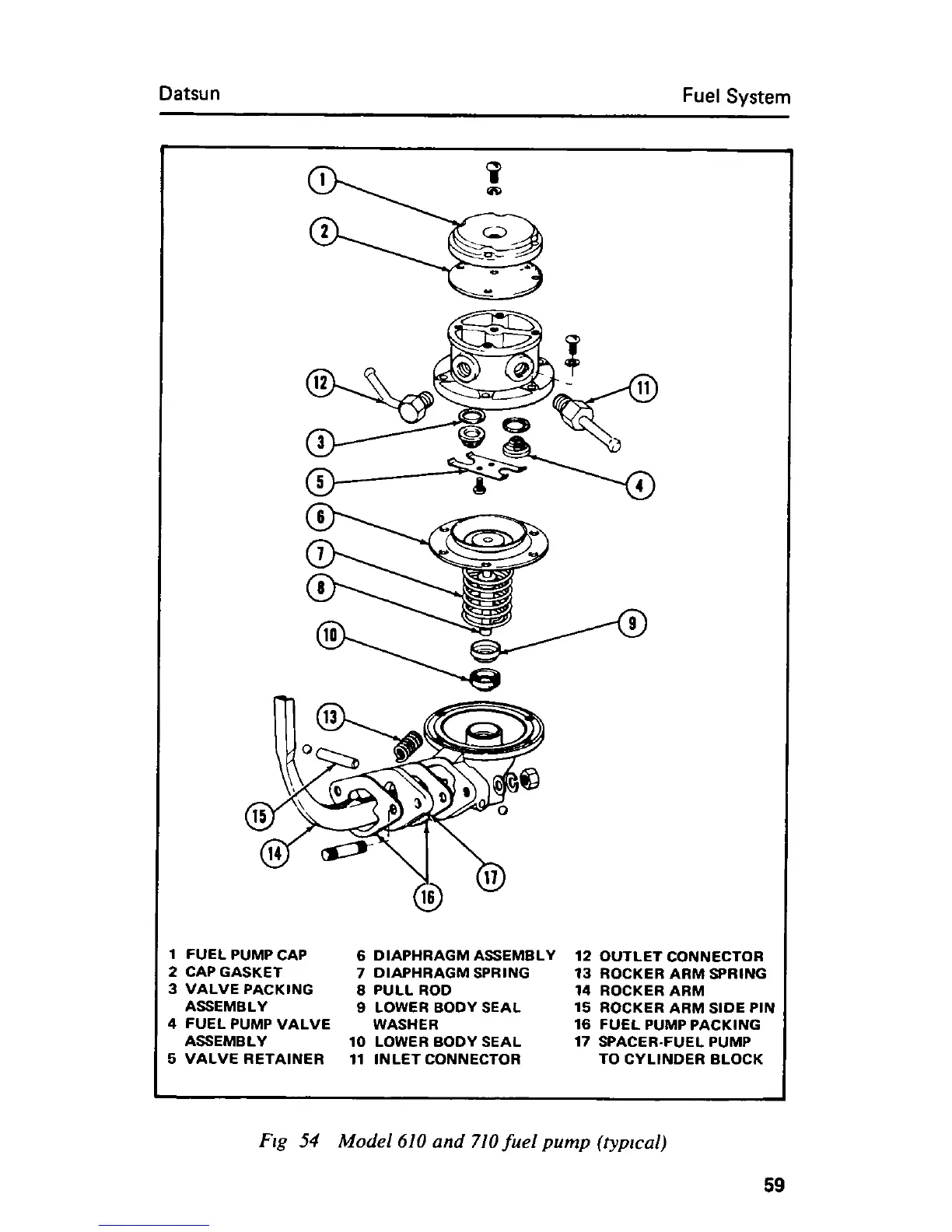

FIg
54 Model 610 and 710
fuel pump tYPIcal
