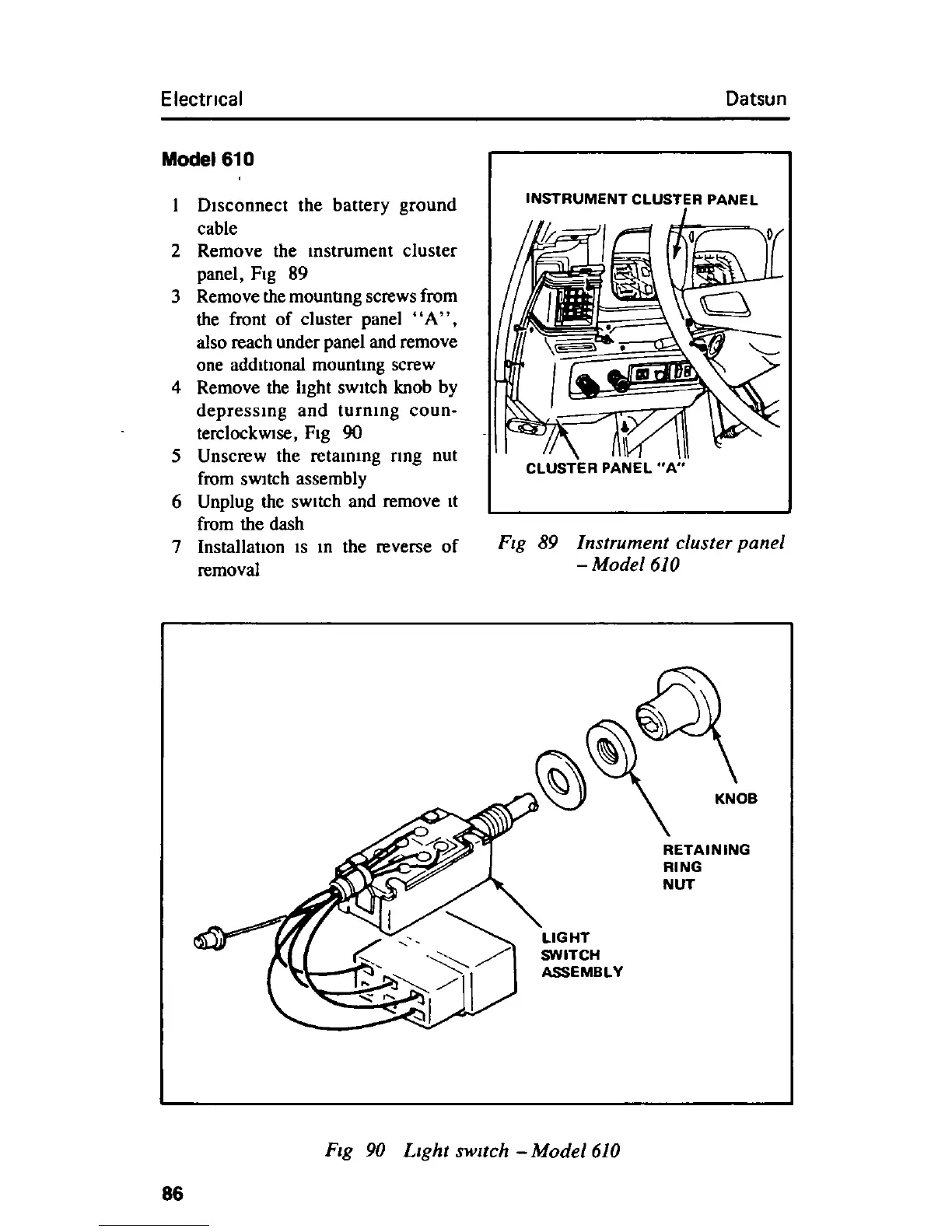

Electrical
Model 610
Datsun
Disconnect the
battery ground
cable
2 Remove
the mstrument
cluster
panel Fig
89
3 Remove
the
mountmg
screws
from
the front of cl uster
panel
A
also reach under
panel
and remove
one additional
mountmg
screw
4
Remove
the
I1ght
sWitch knob
by
depressmg
and
turnmg
coun
terclockwise
Fig
90
5 Unscrew the
retammg nng
nut
from switch
assembly
6
Unplug
the sWitch and remove It
from
the
dash
7
Installation IS
m
the reverse
of
removal
INSTRUMENT
CLUSTER PANEL
CLUSTER
PANEL
AU
FIg
89
Instrument
cluster
panel
Model 610
RETAINING
RING
NUT
LIGHT
SWITCH
ASSEMBLY
86
Fig
90
Light
switch Model
610
