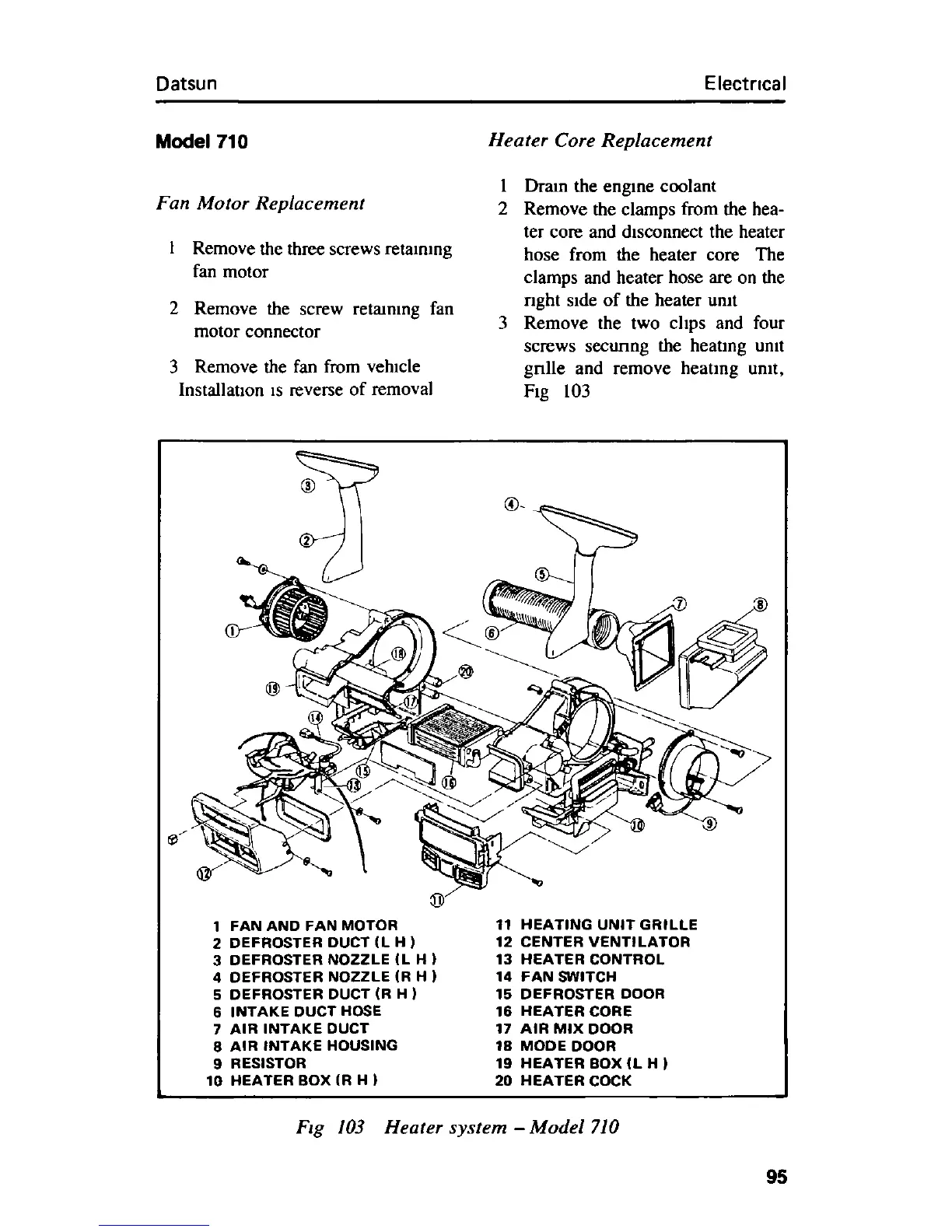

Datsun Electrical
Model 710
Fan Motor
Replacement
Remove
the three
screws
retammg
fan motor
2
Remove the screw
retammg
fan
motor
connector
3 Remove the fan from
vehicle
Installalion IS reverse
of removal
Heater Core
Replacement
1
Dram the
engme
coolant
2
Remove
the
clamps
from the hea
ter
core and disconnect
the
heater
hose from
the
heater core The
clamps
and
heater hose are on the
nght
side
of the heater
umt
3
Remove the two
chps
and four
screws
secunng
the
heatmg
umt
gnlle
and remove
heatmg
umt
Fig
103
1 FAN AND
FAN
MOTOR
2
DEFROSTER
DUCT
L H
3 DEFROSTER NOZZLE
L H I
4 DEFROSTER
NOZZLE R H I
5 DEFROSTER
DUCT R H
6
INTAKE
DUCT HOSE
7
AIR INTAKE DUCT
8
AIR
INTAKE HOUSING
9 RESISTOR
10
HEATER BOX
IR
H I
11 HEATING UNIT GRILLE
12 CENTER
VENTILATOR
13 HEATER
CONTROL
14 FAN
SWITCH
15 DEFROSTER DOOR
16 HEATER CORE
17 AIR MIX
DOOR
18 MODE DOOR
19 HEATER BOX
IL
H
I
20 HEATER
COCK
Fig
103
Heater
system
Model 710
95
