DAVIS Vantage Vue Manual

Running the Software
14
To set transceiver options:

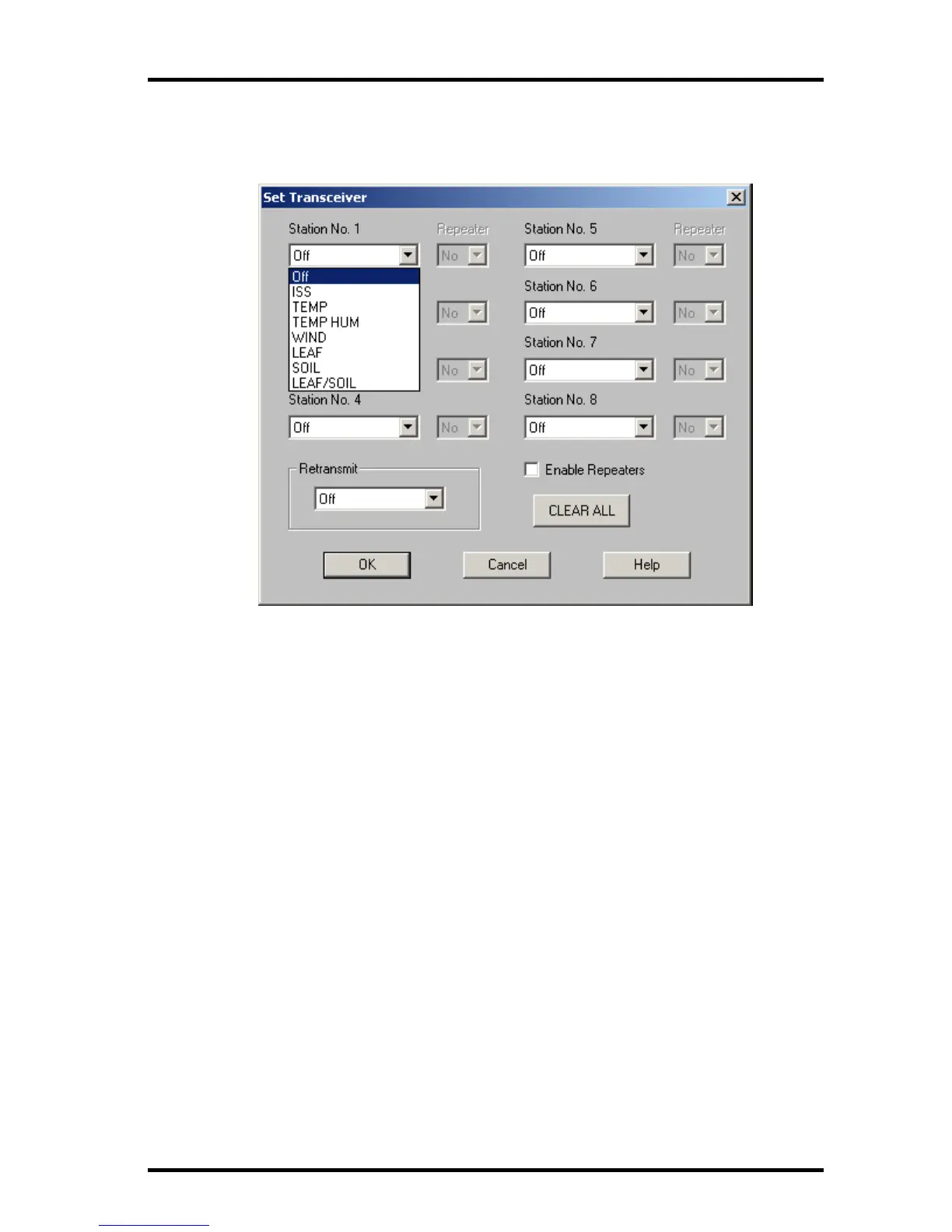

1. Select Set Transceiver from the Setup menu. The Set Transceiver dialog
box displays.
2. Select a Station Type for each of the possible 8 transmitter IDs (“channels”)
the Envoy may be receiving. See the WeatherLink Online Help System for
more information on configuring the stations, the retransmit feature, and
configuring the Envoy for using repeaters.

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
