How to use drainpipe
If the additional drain hose is too long,
cut some at A or B point.
Water drainage
The drain hose should drain smoothly
1. The height of the drain hose should be less
than 10cm, otherwise the drainage will not be
smooth and need a long time to drain, the machine
may stop during working.
2. Do not step on or press the drain hose.
4. Purchase a proper hose if you need additional drain hose.
Its diameter should not less than 30mm and length should
not exceed 1.5m.
A B
3. Cut the drain hose if it is too long. Cut the front end of the
hose slantingly to make drainage smoothly.

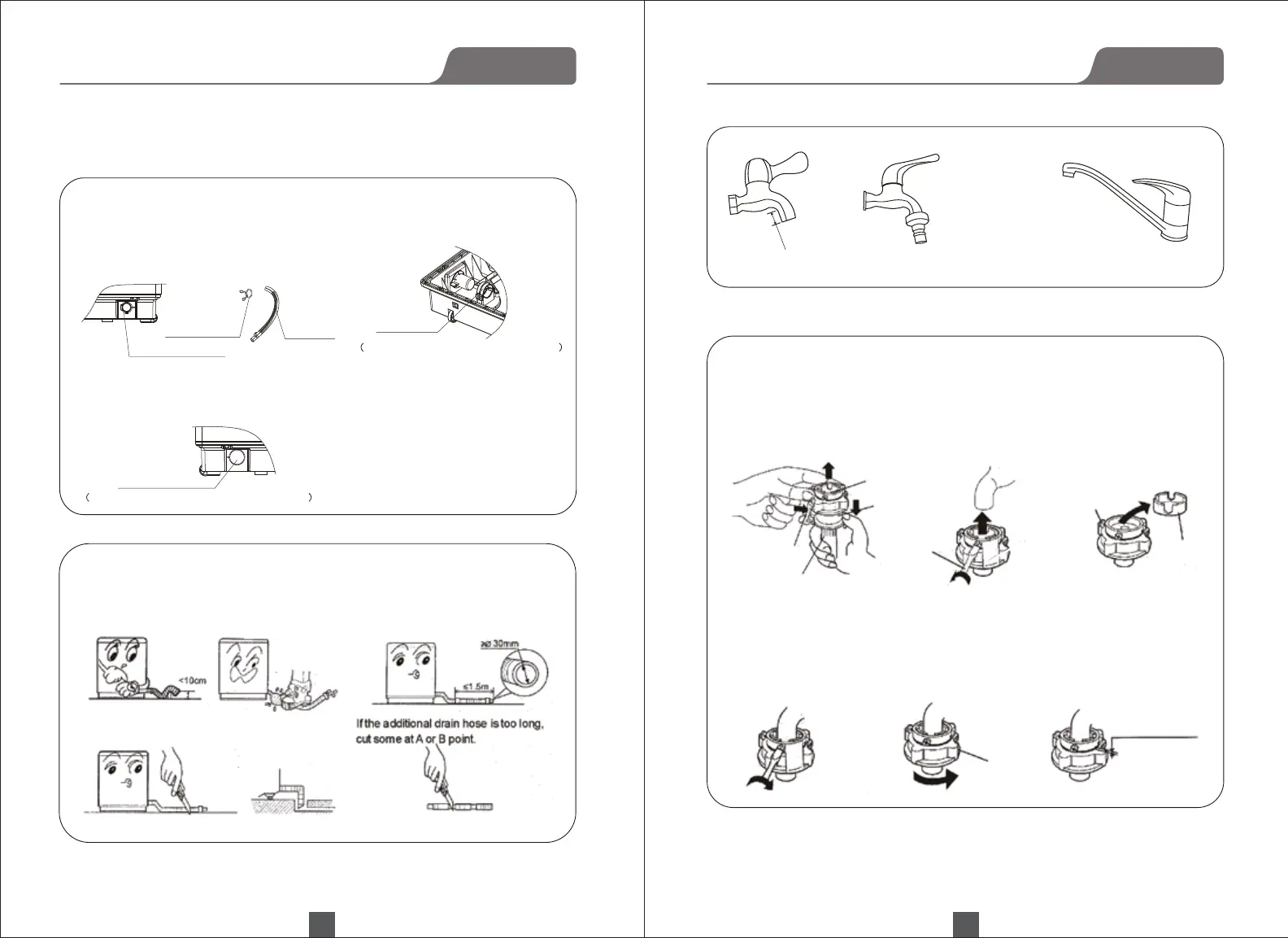

How to change the direction of the drainpipe
1. Take off the drainpipe and drainpipe clip from
drainpipe connector, put some soft mat on the oor,
make washing machine front side adown and gently
put down the washing machine front side on the mat,
demount the screws on the back cover with screwdriver
and take out the back cover. Demount one screw that
xed the drainpipe connector (on right of the washing
machine), loosen the drainpipe connector.
3. With proper force to take down drainpipe gate stopper
on left side of the washing machine. The drainpipe gate
stopper is xed on washing machine base with two
clips, please see the xing type from the place of
opening back cover.
2. Extrude the drainpipe with proper force
and take out drainpipe hoop (on right of the
washing machine), make the inner
drainpipe loosen.
4. Pull the inner drainpipe to another side,
please do not make the inner drainpipe
distortion; as per foregoing description,
x inner drainpipe with drainpipe hoop,
with one screw x
drainpipe connector,
install the drainpipe gate stopper to
another side, make washing machine
standing gently, x back cover with screw
and install the drainpipe and drainpipe
clip into the drainpipe connector.
Install drainpipe
Set drainpipe clip into the drainpipe to 2-3cm (from the drainpipe end that without pothook
to set), then install the drainpipe into the right drainpipe connector and x the drainpipe
and drainpipe connector with the clip, after that put up the drainpipe clip on the cabinet.
Drainpipe hoop
Drainpipe gate stopper
Drainpipe connector
Drainpipe
Drainpipe clip
(Section sketch map for washing machine right side)
Section sketch may inside washing machine
Section sketch map for washing machine left side
Water inlet installation
>10mm
Lock lever
Inlet hose
Inlet hose connector
Slider
Screwdriver
Bolt
Bushing
Before twisting, about 4mm
After twisting, less 2mm
Nut
Illustration 1
Illustration 2
Illustration 3
Illustration 6
Illustration 5
Illustration 4
Tap selection
Suitable tap
Not suitable tap
The front end should be longer than 10mm. The tap exit end face
should be at and smooth, if not le it to avoid leakage.
Connect the inlet hose connector with the tap
1. Press the lower end of the lock lever and push down the slider, take off the inlet hose
connector from the inlet hose, see illustration 1.
2. Loosen the four bolts on the inlet hose connector till the tap can be accessed, then
set the inlet hose connector in the tap, see illustration 2. (if the tap caliber is too larger and
could not set the inlet hose end, unscrew the four bolts and take out the bushing, tap exit
end must at, otherwise it will leak, see illustration 3).
3. Fasten the four bolts in the inlet hose connector evenly, see illustration 4.
4. Twist the fastening nut as the illustration, see ill
ustration 5.
Remark: Before twisting the nut, the threading is about 4mm above the upper surface of the nut, after twisting,
the threading is less than 2mm above the upper surface of the nut, see illustration 6.
Before using
Before using
,
