Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
13
f) Screw in the large cap.
2.3.10 Chassis
Inspect, clean or replace it monthly if necessary and lubricate it quarterly.
a) Grease the chassis bushings and bearings with some grease quarterly to make sure that they can
operate smoothly and enjoy an extended life;
b) If it’s used in extremely wet, muddy or dusty conditions, we recommend you to service it more
often.

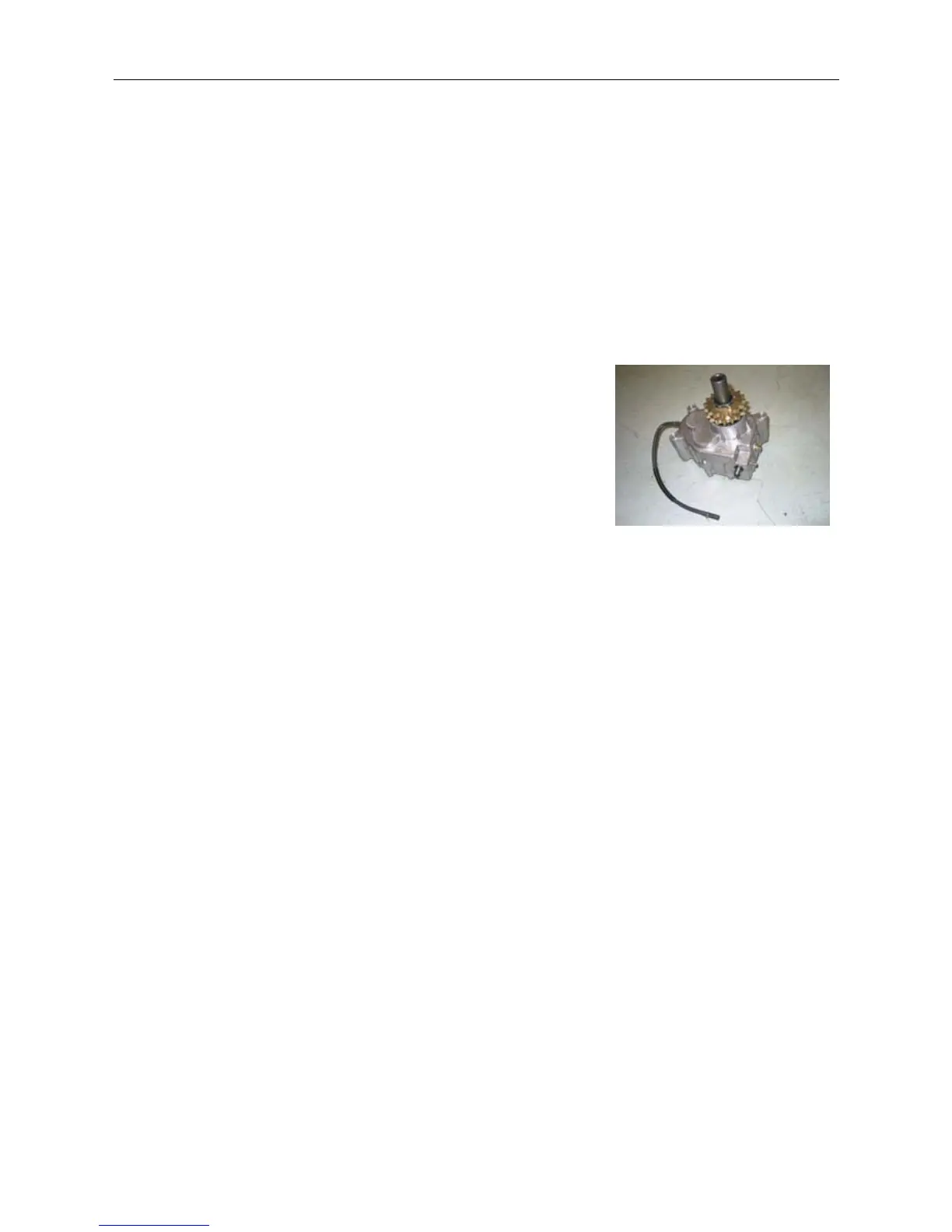

2.3.11 Reverser Adjustment
a) Press down the reverse lever to the "FW" position so that the
units can move forward;
Pull back the lever to "BW" so that the units can move backward.
b) Adjusting Nut #1 on the top of the reverse cable can adjust the
mesh status inside the reverse gear box. In the forward position
there should be about 1/4 inch play in the cable for the correct
adjustment.
