Dazon Raider Max 175S - Engine; Lubrication System

Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
14
3. Engine
3.1 Lubrication System

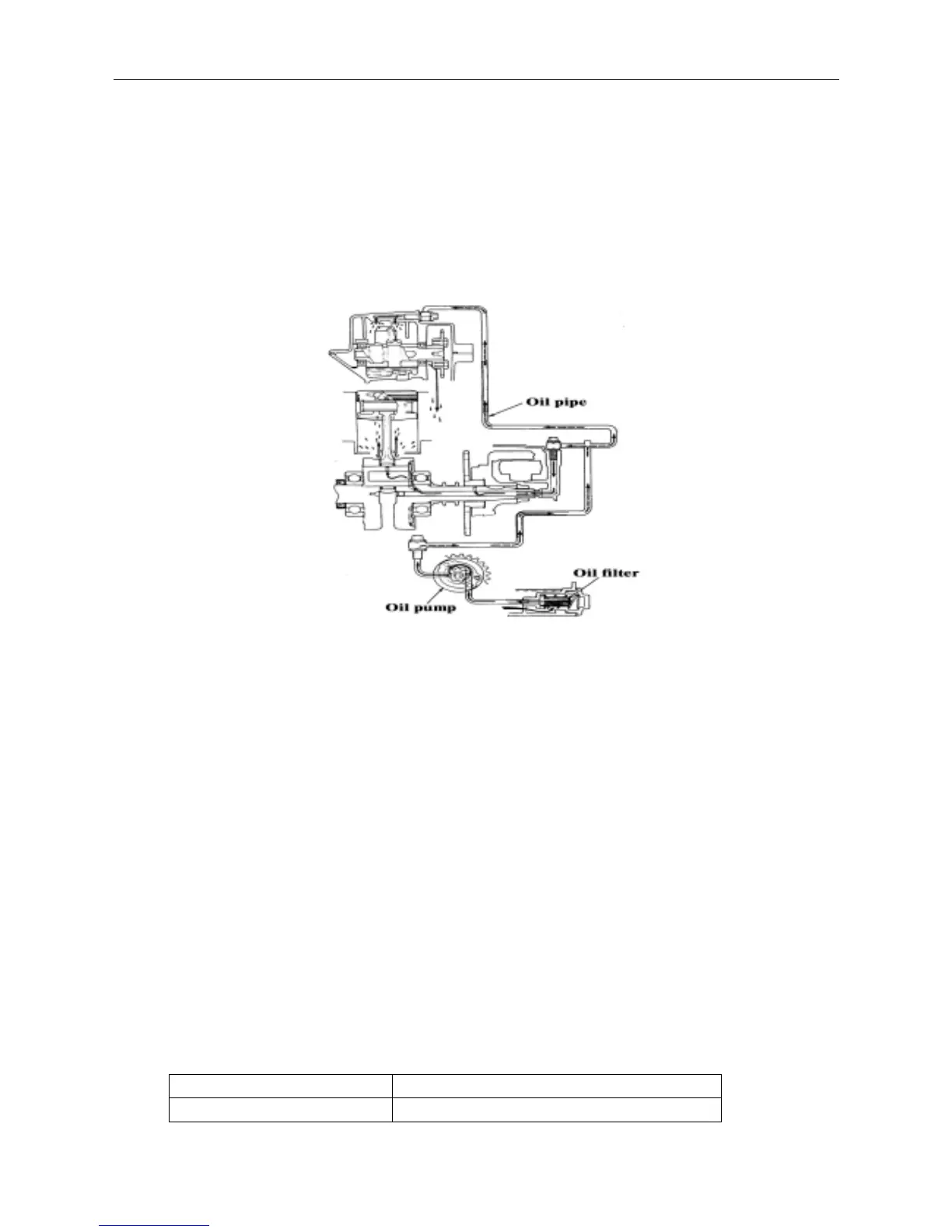

3.1.1 Lubrication diagram
3.1.2 Trouble shooting
z The engine oil level is too low.
a) The engine oil is consumed naturally;
b) The engine oil leaks;
c) The piston rings are worn.
z The engine oil is dirty.
a) The engine oil isn’t replaced in time;
b) The cylinder head gasket is damaged.
z The lubrication isn’t good.
a) The engine oil level is too low;
b) The oil filter is clogged, or the oil pipes are clogged;
c)
The oil pump is damaged
3.1.3 Specifications
Engine Oil Capacity 1.0L (Disassembling) 0.8L (Replacing)
Engine Oil 10W/30SF
