Dazon Raider Max 175S - Final Transmission Box

Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
22
3.4 Final Transmission Box

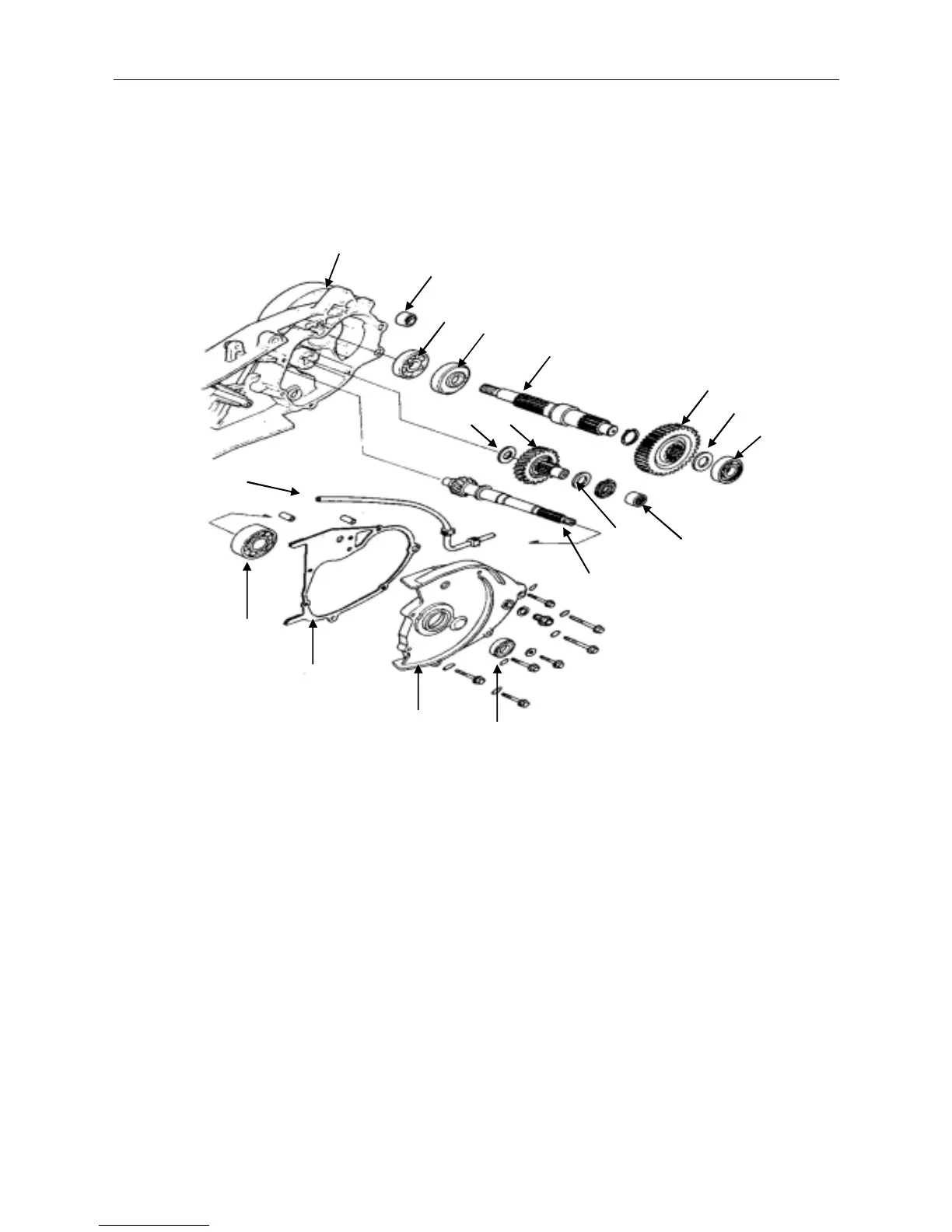

3.4.1 Disassembly Diagram
1.Crankcase, Left 2.Shock Absorber Sleeve, Rear
3.Bearing 6004LU 4.Oil Seal 27*42*7
5.Final Shaft 6.Gear, Final Shaft
7. Washer 17.2*25*1 8. Bearing 6203
9.Needle Bearing NK 1412 9.Washer 14.5*28*1
11. Transmission Shaft, Counter 12.Washer 14.5*32*1
13. Transmission Shaft, Main 14.Oil Seal 20*32*6
15.Gearbox 16.Gasket, Gearbox
17.Bearing 6204 18.Breather Pipe, Gearbox
1
2
8
13
12 11
10
9
3
4
5
6
7
14
17
16
15
18
