3.6 Crankcase & Crankshaft

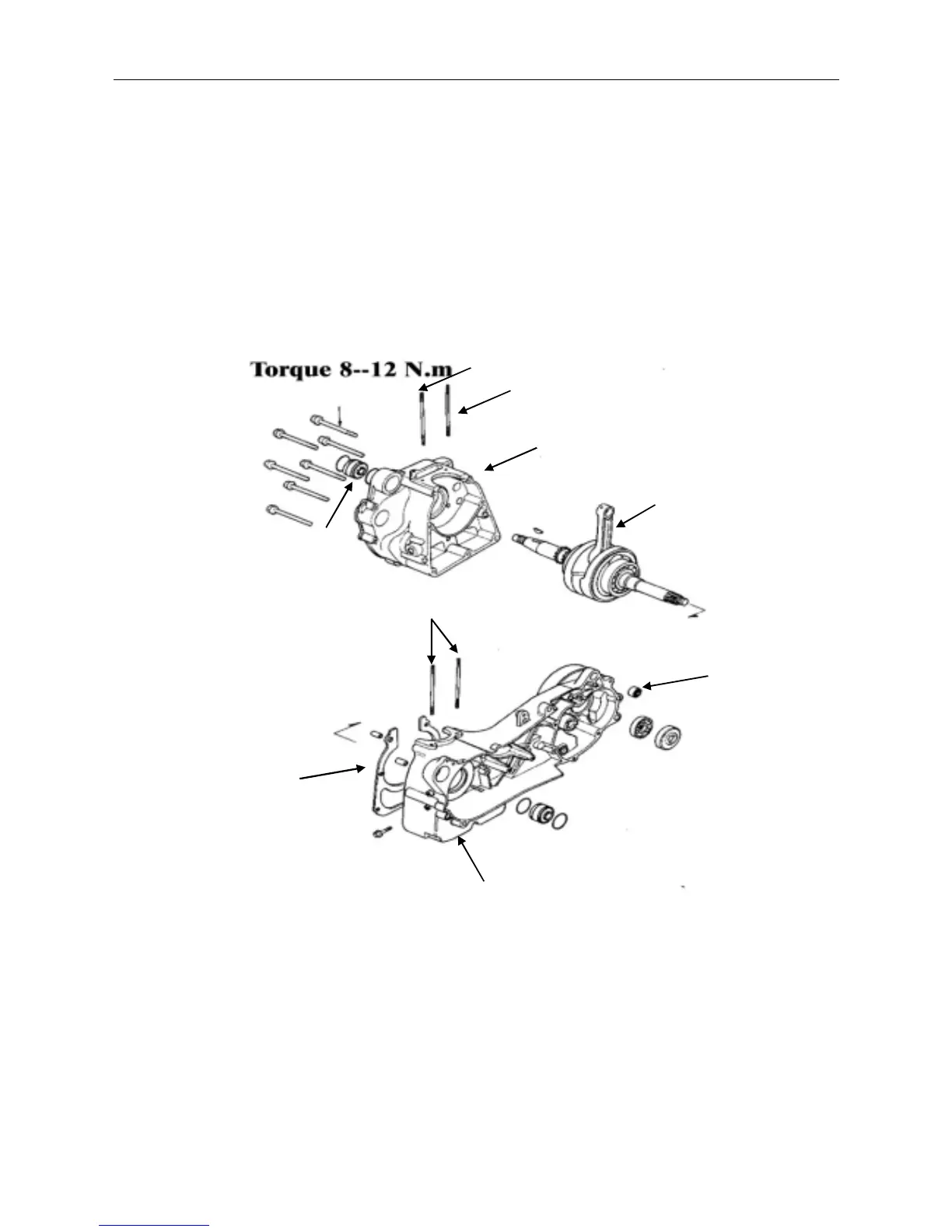

3.6.1 Disassembly Diagram
1.Shock Absorber Sleeve, Front 2.Stud Bolt M8*172
3.Stud Bolt M8*162 4.Crankcase ,Right
5.Connecting Rod, Crankshaft 6.Gasket, Left Crankcase
7. Stud Bolt M8*162 8. Crankcase, Left
9. Shock Absorber Sleeve, Rear
1
3
4
2
5
6
7
9
8
