Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
24
3.5 AC Generator & Starting Clutch

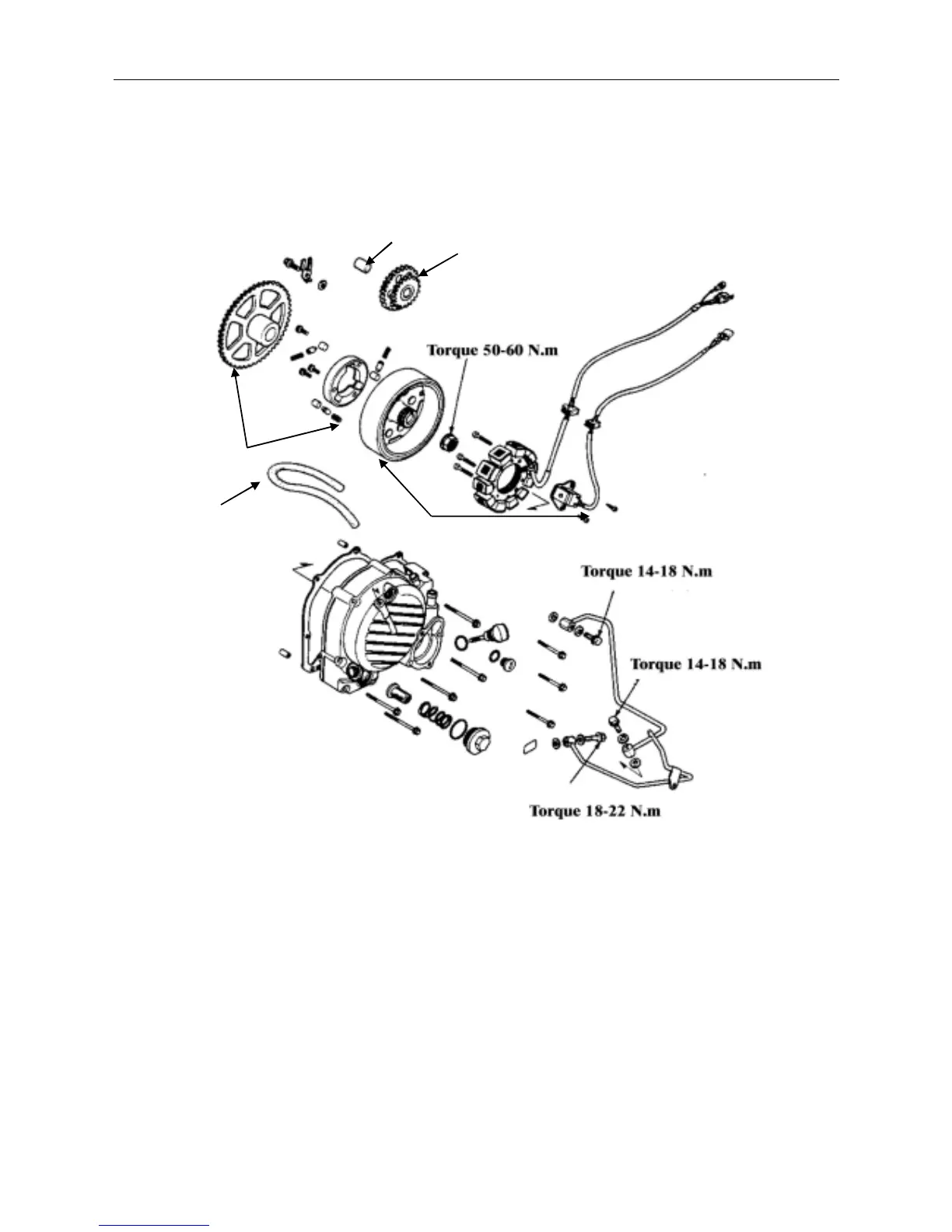

3.5.1 Disassembly Diagram
1.Clutch,Starting 2.Reduction Gear Shaft, Starting
3. Reduction Gear, Starting 4.Magneto
5.Oil Level Dip Stick 6. Oil-Pass Bolt A
7. Oil-Pass Bolt B 8. Oil Pipe
9. Oil-Pass Bolt C 10.Cap, Oil Filter Screen
11.Spring, Oil Filter Screen 12.Oil Filter Screen
13.Crankcase Cover, Right 14.Gasket, Right Crankcase Cover
15.Breather Pipe, Right Crankcase Cover
1
2
3
15 4
5
To Next Page
