Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
15

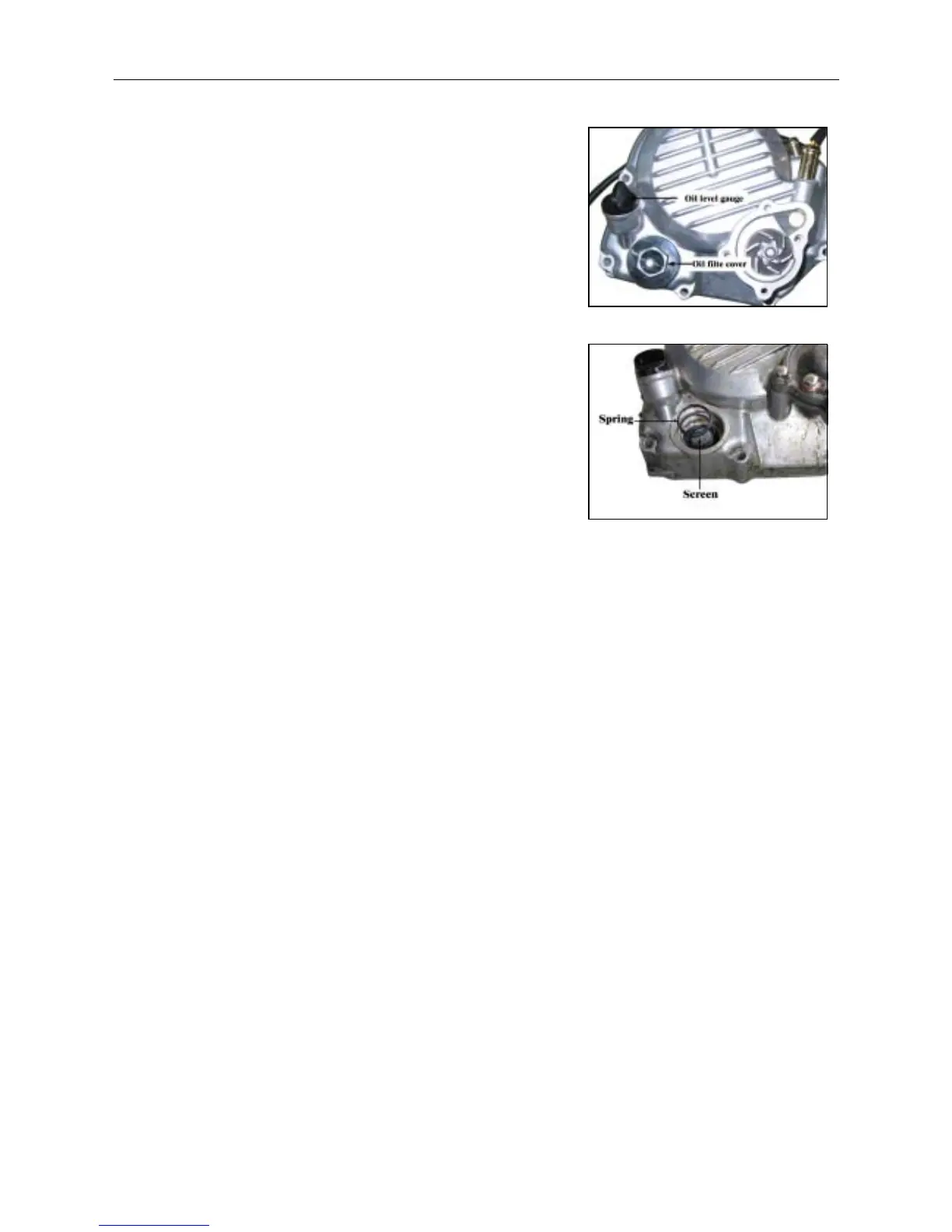

3.1.4 Engine Oil
z Inspection
a) Stop the engine;
b) Stay the vehicle on the flat ground for 2-3 minutes;
c) Inspect the oil level.
Note: The oil level gauge shouldn’t be screwed in.
z Replacement
a) Remove the oil filler cover, and drain out the oil remnant
when the engine is warm;
b) Reassemble the cover;
Torque: 18-20 N.m.
c) Check if the O-rings are damaged; replace if necessary;
d) Fill in the same type of engine oil;
Engine oil capacity: 1.0 L (Disassembling)
0.8L (Replacing)
Engine oil type: 10W/30SF
e) Start the engine to check if there is any oil leakage;
f) Stop the engine and check the oil level again.
z Engine Oil Screen
a) Drain out the oil;
b) Take out the spring filter;
c) Assemble the screen, spring and filter cap;
d) Add enough oil into the engine.
