Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
18

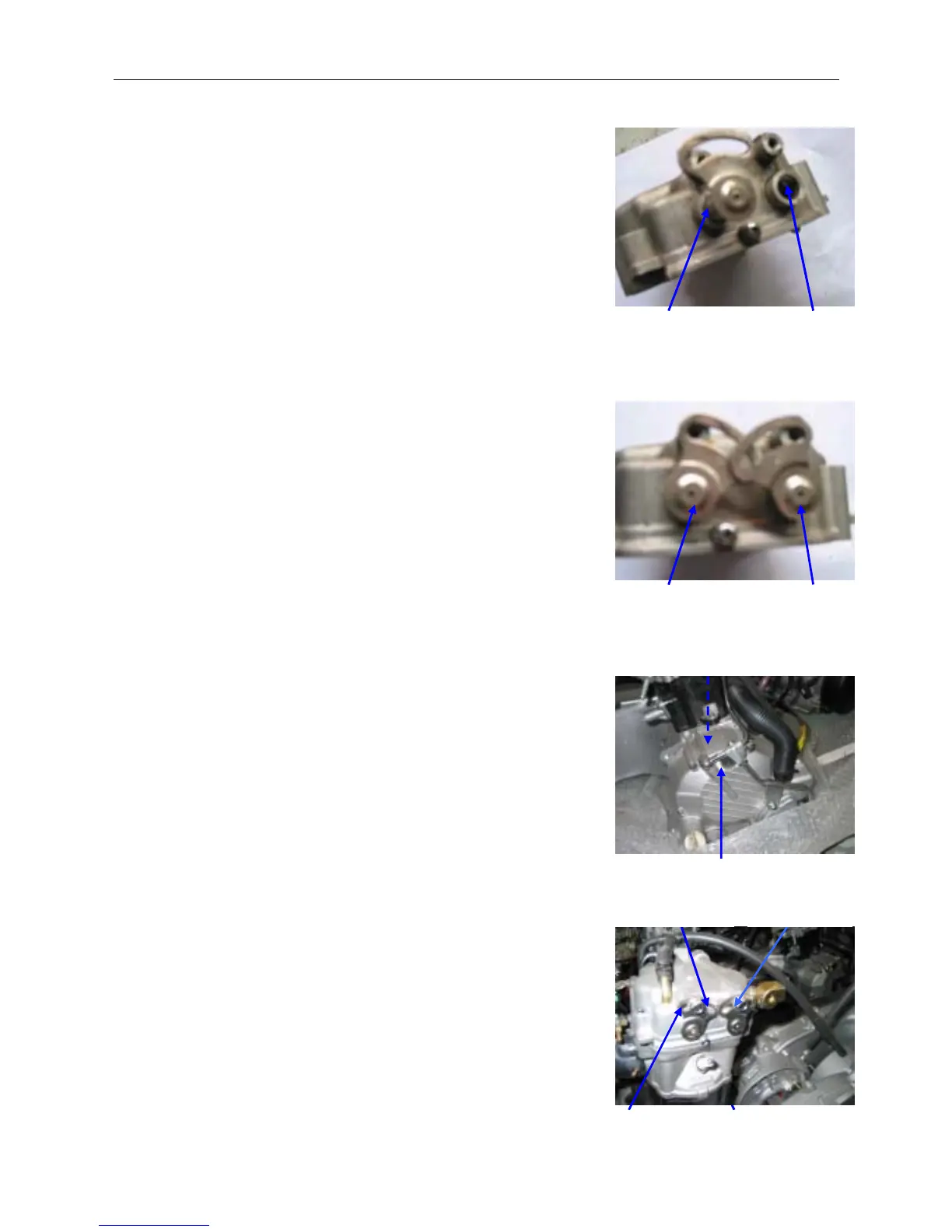

c) Insert the rocker arm shaft with the mark “IN” into the hole on
the left side of the cylinder head cover and the hole of the rocker
arm;
At the same time, insert the rocker arm shaft with the mark “EX”
into the holes on the right side of the cylinder in the same way;
d) Turn the dials of the two rocker arms to the position as shown
in the picture;
Fasten the two dials.
3.2.4. Adjust Valve Clearance
a) Open the engine peephole cap;
Adjust the flywheel “ T ” to the maximum reading, while
the engine piston reaches the top dead point;
b) Loosen the lock bolts at the intake / exhaust valve dials;
;
Hole on Left Side
of Cylinder
Hole on Right Side
of Cylinder
Rocker Arm of
Ex. Valve
Rocker Arm of
In. Valve
En
