Raider Max 175 (single-seat, double-seat): Service Manual EEC Version:2.0 April 2005
35
b) Connect a tube with the fuel-adding line of the carburetor;
Connect the yellow wire of the choke with the battery + electrode;
Connect the green wire of the choke with the battery - electrode.
Blow with mouth after 5 min.
If the air does not go smoothly, it is normal.
Remove the automatic choke wire from the battery.
Blow with mouth after 30 min.
If the air goes smoothly, it is normal.
3.8.6 Inspection of Fuel Level
a) Check the fuel level of the main jet.
b) Fuel level: 18.5+/-1.0mm
c) Check the float and assemble the float fuel tube.

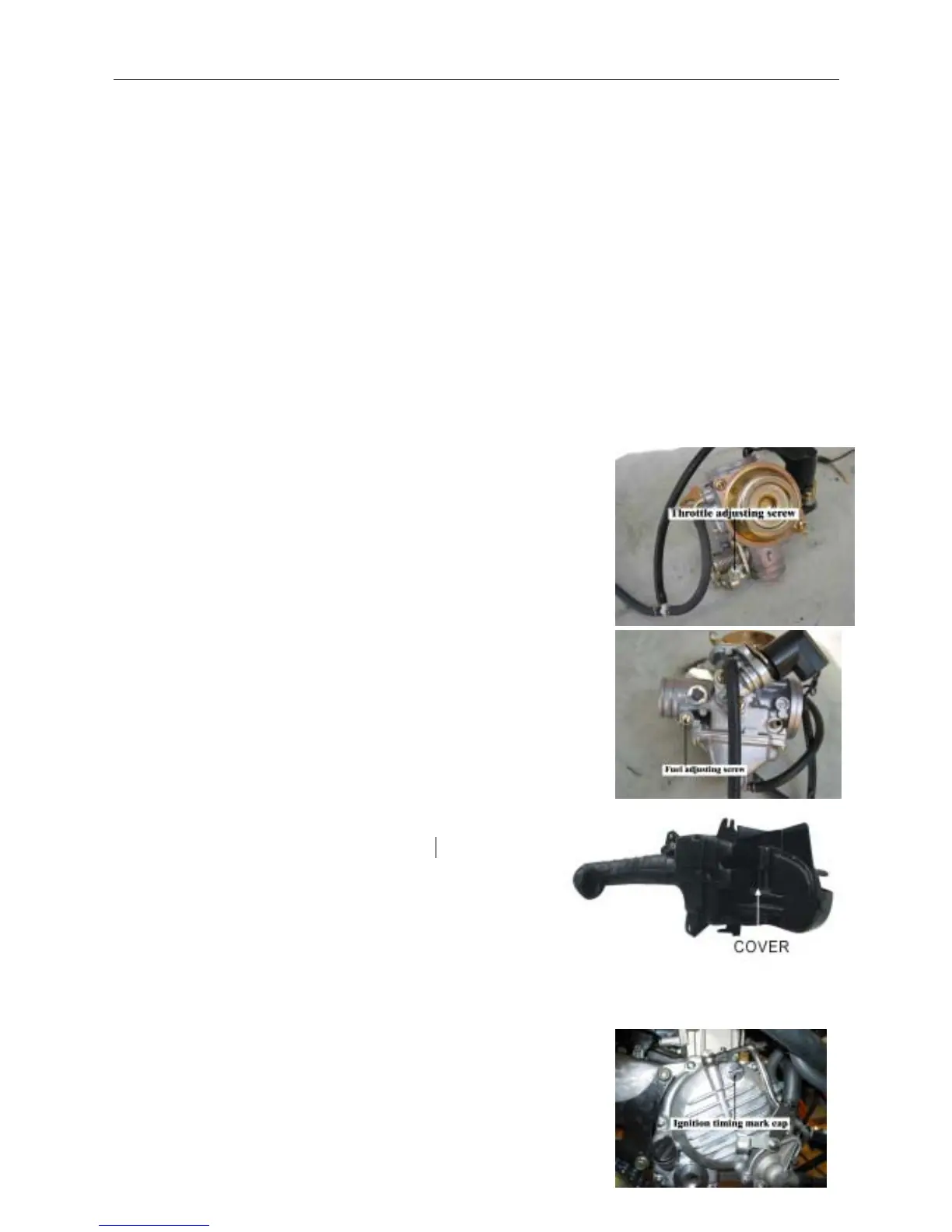

3.8.7 Adjustment of Idle Speed
a) Adjust the idle speed after warming up the engine.
b) Close the fuel adjusting screw fully; turn back the standard 1
3/4 turning.
c) Adjust the adjusting screw to the specified idle speed.
d) Turn the adjusting screw left and right slightly.
e) Repeat the steps 2, 3.
f) Adjust the throttle adjusting screw to the idle speed position
(1,500+/-100rpm).
g) Run the engine from the low speed to high speed, run the
engine at the idle speed for 10 to 15 seconds to see if the idle
speed is stable;
If it changes, repeat the steps 2-5.
3.8.8 Air Cleaner
a) Check if the air cleaner is damaged;
Replace with a new one if necessary.
b) Clean the air cleaner every 1,000 km.
c) Replace the air cleaner every 5,000km.
3.8.9 Ignition Timing
The C.D.I. is used, so there is no need to adjust the ignition timing.
If the ignition timing is abnormal, check the C.D.I. and AC generator.
z Inspection of Ignition Timing
a) Use the ignition-timing lamp.
