PM 1000 – 1 kW FM Broadcasting Transmitter - USER’S MANUAL
10 /101

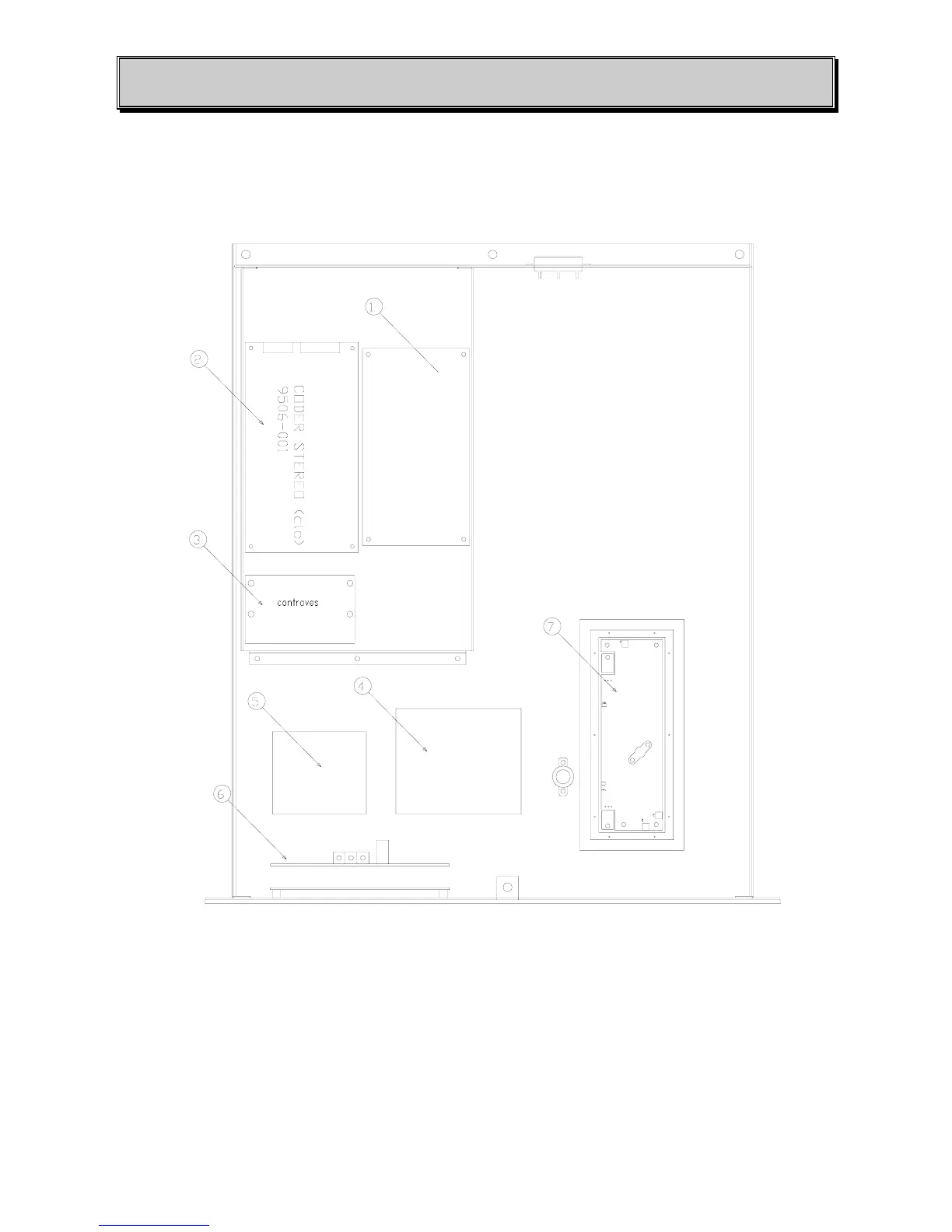

Fig. 1.4 – PM1000 TRANSMITTER BOTTOM VIEW
1) Sintel ’96 modulator board 5) Power supply board 0601-008
2) Coder stereo board 6) Measure boards
3) Contraves board (/C option) 7) AMP30, 30 W pre-amplifier board
4) Power supply board RS 75-24
