DB ELETTRONICA TELECOMUNICAZIONI S.p.A.
PM 1000 – 1 kW FM Broadcasting Transmitter - USER’S MANUAL
47 /101

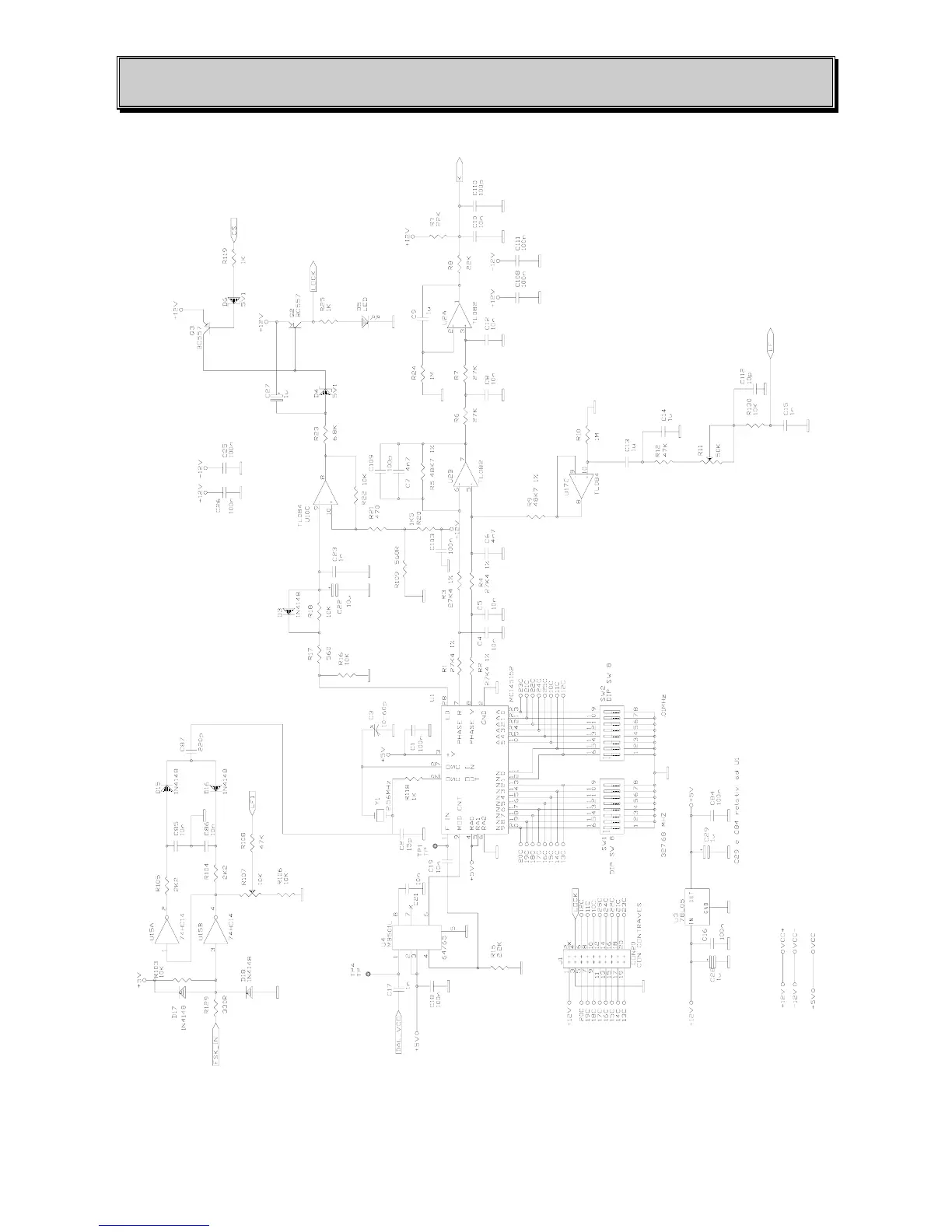

Fig. 6.2 - PLL STAGE ELECTRICAL SCHEMATIC
