DB ELETTRONICA TELECOMUNICAZIONI S.p.A.
PM 1000 – 1 kW FM Broadcasting Transmitter - USER’S MANUAL
7 /101

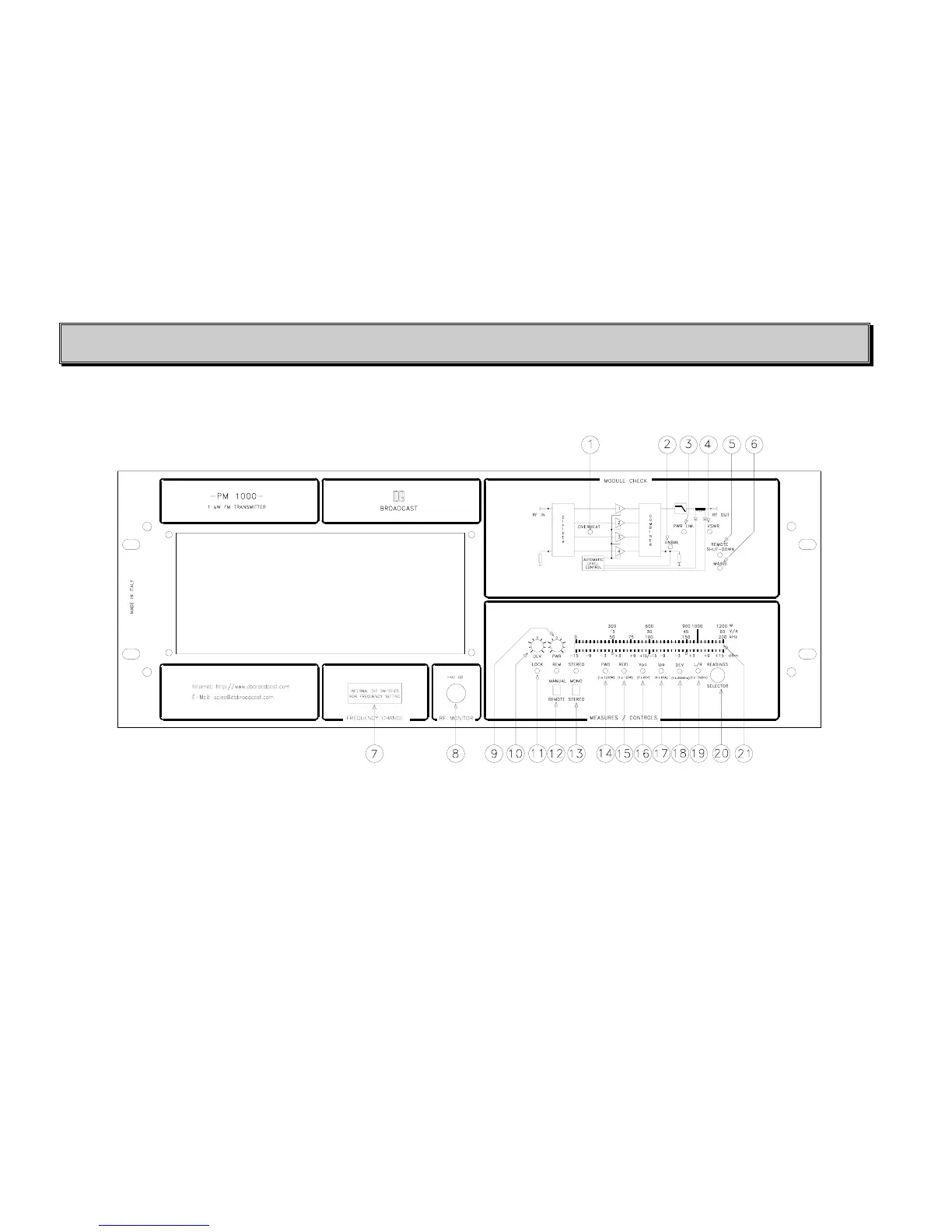

Fig. 1.1 - PM1000 TRANSMITTER FRONT VIEW
1) Overtemperature protection indicator 7) Contraves (option /C) 13) Mono/Stereo mode selector 19) L/R channel level measure indicator
2) Indicator of unbalancing between modules 8) RF monitor BNC connector 14) Forward power measure indicator 20) Measure selector
3) Power limiter indicator 9) Output power trimmer adj. 15) Reflected power measure indicator 21) Measure instrument
4) VSWR protection indicator 10) Deviation trimmer adj. 16) Vpa voltage measure indicator
5) Remote shut-down indicator 11) Lock frequency indicator 17) Ipa current measure indicator
6) Indicator of the on/off transmitter state 12) Manual/Remote selector 18) Frequency deviation measure indicator
