DB ELETTRONICA TELECOMUNICAZIONI S.p.A.
PM 1000 – 1 kW FM Broadcasting Transmitter - USER’S MANUAL
8 /101

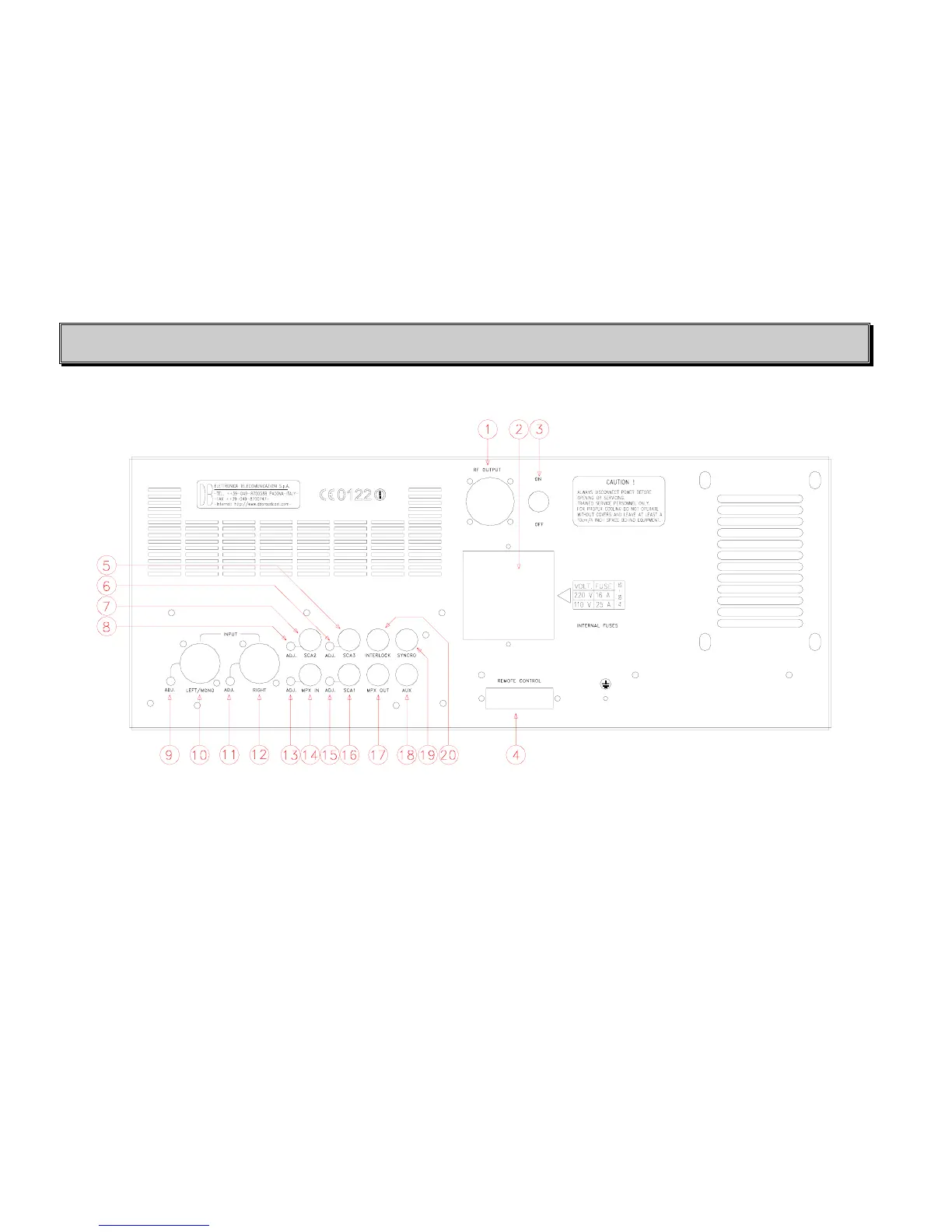

Fig. 1.2 – PM1000 TRANSMITTER REAR VIEW
1) RF output DIN 7/16” connector 7) SCA2 input BNC connector 13) MPX input level adj. 19) Sync. input BNC connector
2) Mains power supply connector 8) SCA2 level adj. 14) MPX input BNC connector 20) Interlock BNC connector
3) Mains On/Off switch 9) Left channel (or mono) input level adj. 15) SCA1 level adj.
4) Remote control DB25 connector 10) Left channel (or mono) input XLR connector. 16) SCA1 input BNC connector
5) SCA3 input BNC connector 11) Right channel input level adj. 17) MPX Out BNC connector
6) SCA3 level adj. 12) Right channel input XLR connector 18) AUX input BNC connector
