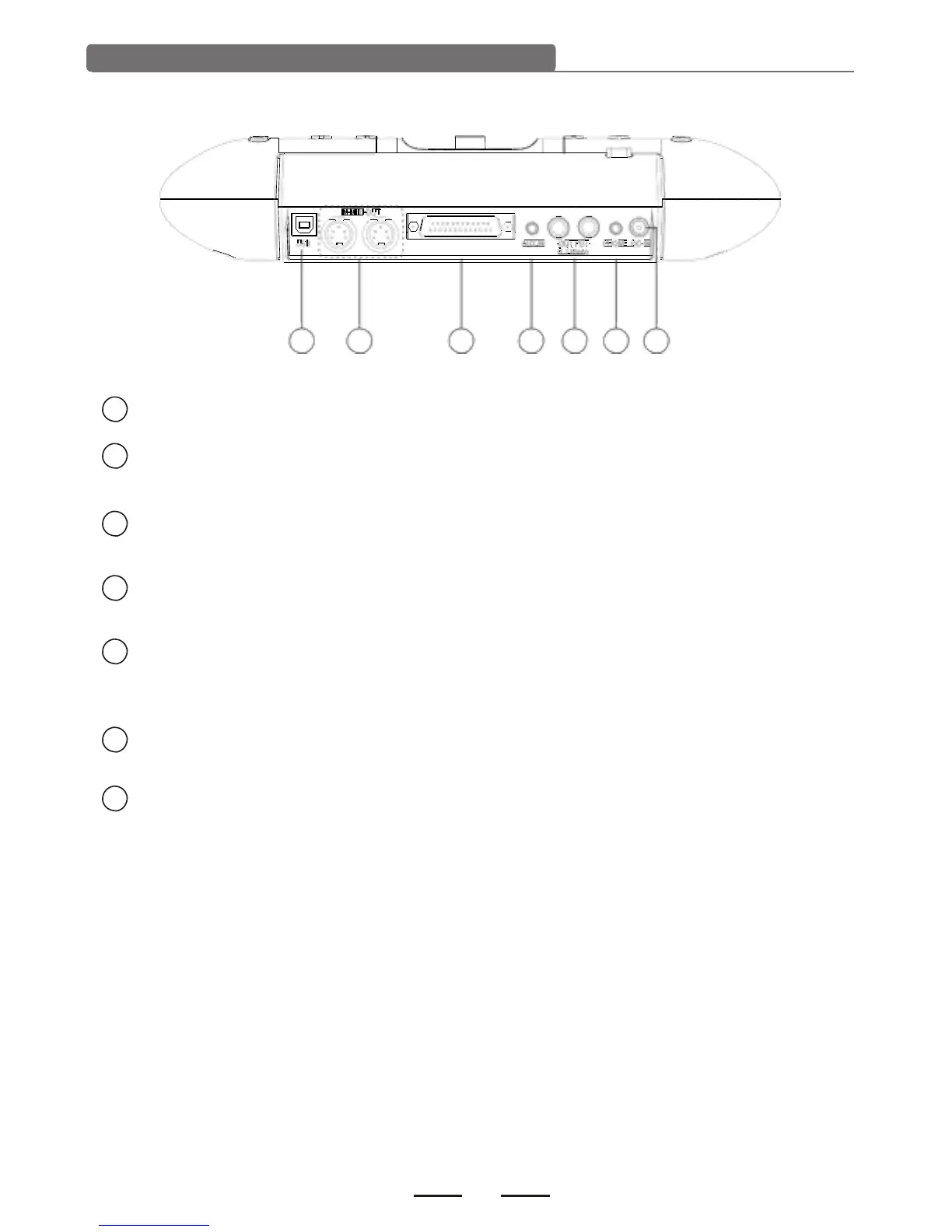

Rear panel
16 17 18 19 20 21 22
16 USB interface
Connects with PC to deliver MIDI signal.
17 MIDI in/out port
Connects with external MIDI devices (The drum MIDI signal outputs via MIDI OUT to
external audio source. The external MIDI signal inputs to the drum via MIDI IN.)
18 Trigger in connector
Pad signal input connector.
19 AUX IN
External stereo input connector, e.g. MP3 or CD player.
20 -OUTPUT- L/mono R
The stereo output connector to connect with audio system or drum amp, L/R stereo
output and L/mono output
21 PHONE
Stereo phone output connector.
22 DC-In
Power adaptor connector,9V DC
