DBL Technology Co., Ltd. GoIP User Manual
www.dbltek.com Technical Support: support@dbltek.com
When a GSM channel receives an incoming call, the call can either be answered by the device or forwarded
to a SIP extension or IVR. For more details, please see Section 3.3.8 for Call In configuration.

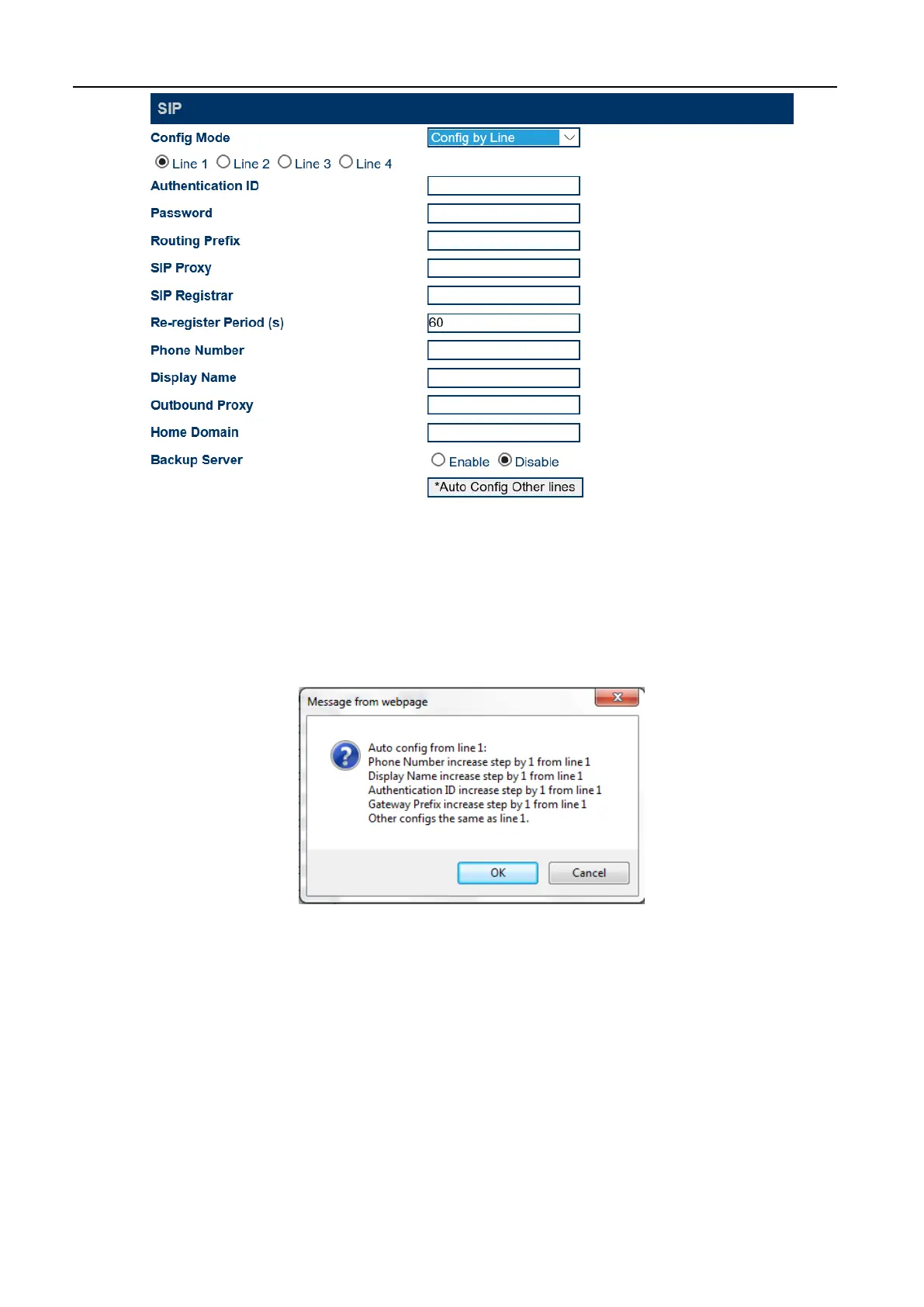

Please note that the parameters defined in this mode are for each line. Their definitions are the same as
those defined in the parameters table for Single Server mode. The "*Auto Config Other lines" option is
only available for Line 1. Clicking this button after Line 1 is configured will automatically configure other
lines with the Line 1 settings with the changes displayed in the following message box.
3. Config. By Group (for all models except GoIP-1)
This mode is basically a combination of Single Server mode and Config. By Line mode. It allows lines to be
split up into groups. Each group only uses one SIP registration for all the lines assigned to the group.
Each line can be assigned to only one of the 4 predefined groups in the Grouping section.
In this mode, the Routing Prefix is assigned to the Group rather than to the Channel. Its function is the
same as the Routing Prefix for Config. by Line. The syntax for the Routing Prefix is defined in the Parameter
Table for Single Server Mode.
Please note that the parameters listed in this figure are the same as the parameters defined in the Config.
By Line mode except these are parameters for a "Group" rather than for a "Line". Backup Server and
Grouping. However, these parameters are group properties rather than line properties.
