96

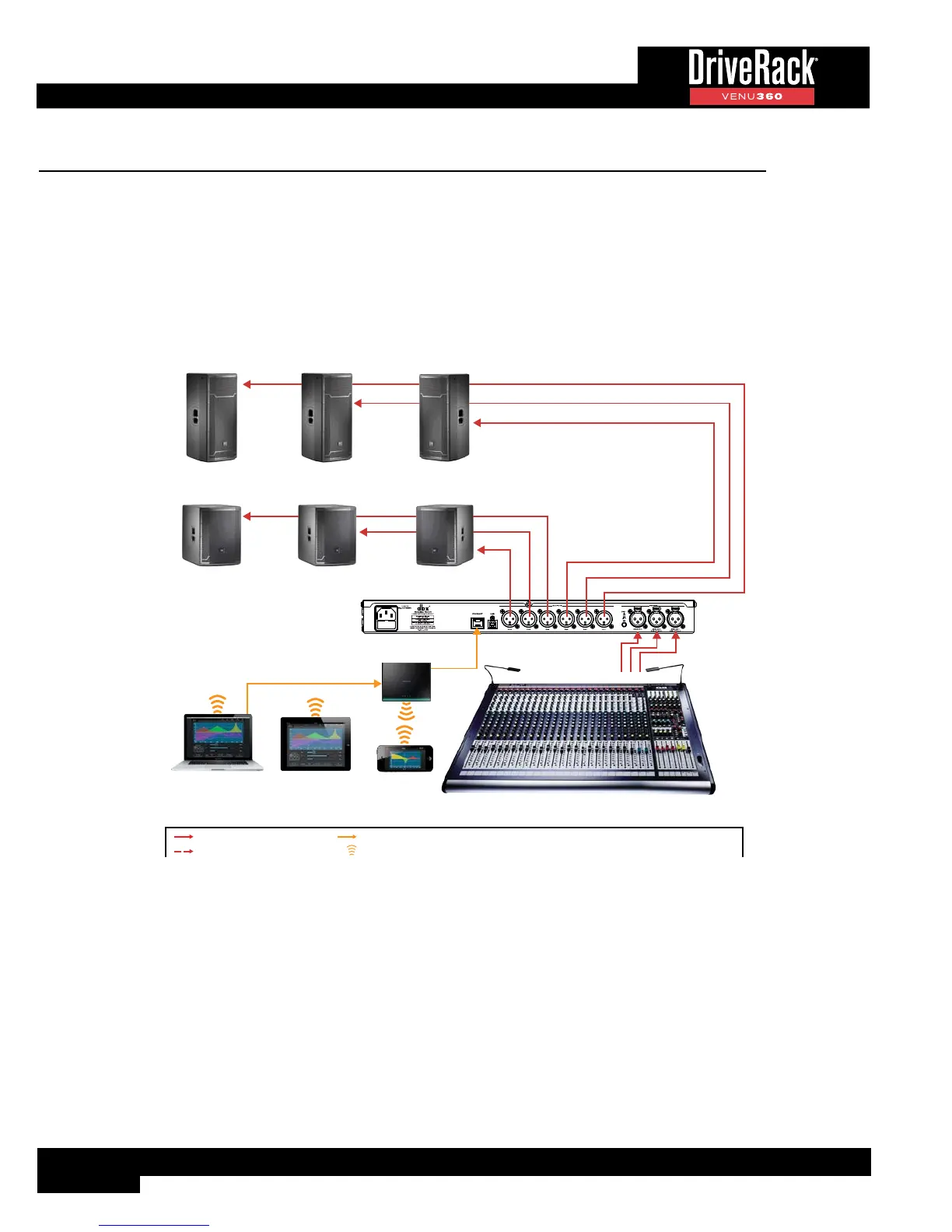

Application 4: LCR Full Range Powered Mains + Subs
This application is suited for use with an LCR system consisting of full range main speakers and subwoofers.
Application Notes:
• Make sure your mixer and amplifiers (or powered speakers) are turned off before making connections.
• Make connections as described in ‘Making Connections’ on page 4 then apply power to the system according
to the instructions described in ‘Applying Power’ on page 4.
• Press the WIZARD button then run the Setup Wizard and follow the on-screen instructions. Or, if you know your
speakers and amps aren’t listed in the Setup Wizard, you can simply load preset 97 and start from there.
or or
CR L
Wireless Router
Windows
®
or Mac
®
Computer
iOS
®
or Android
®
Tablet
iOS
®
or Android
®
Phone
or
or or
LEGEND
Left ChannelL
R Right Channel
Center ChannelC
Aux ChannelA
Channel 11
2 Channel 2
Ethernet Connection
Wi-Fi Signal
Analog Audio Connection
Optional
Mixer
Left Powered Speaker
Left Powered Sub
Center Powered Speaker
Center Powered Sub
Right Powered Speaker
Right Powered Sub
To Next Page
