Motorized Faders
The 31 motorized faders of the 480R make editing and recalling EQ settings a breeze. The 31
faders control the graphic EQ of the currently selected channel of the selected DriveRack™.
IEC Power Cord Receptacle
The 480P comes with switchable power supply that will accept voltages ranging from 100V-240V
at frequencies from 50Hz-60Hz. An IEC cord is included.
RS485 Link to 480R (DB-9 connector type)
This input connector is used to connect to the 480R.
RS485 Link to Network Master (DB-9 connector type)
This input connector is used to connect 480R to the network master.
RS485 Link to 480R (RJ-45 connector type)
This input connector is used to connect to the 480R.
RS485 Link to Network Master (RJ-45 connector type)
This input connector is used to connect 480R to the network master.
RS232 PC Connection
This input is used to connect a PC to the 480R.
RS485/ PC Select Button
This recessed button is used to select the link to master connector or the PC
Power Switch
Turns the 480P and 480R on and off.

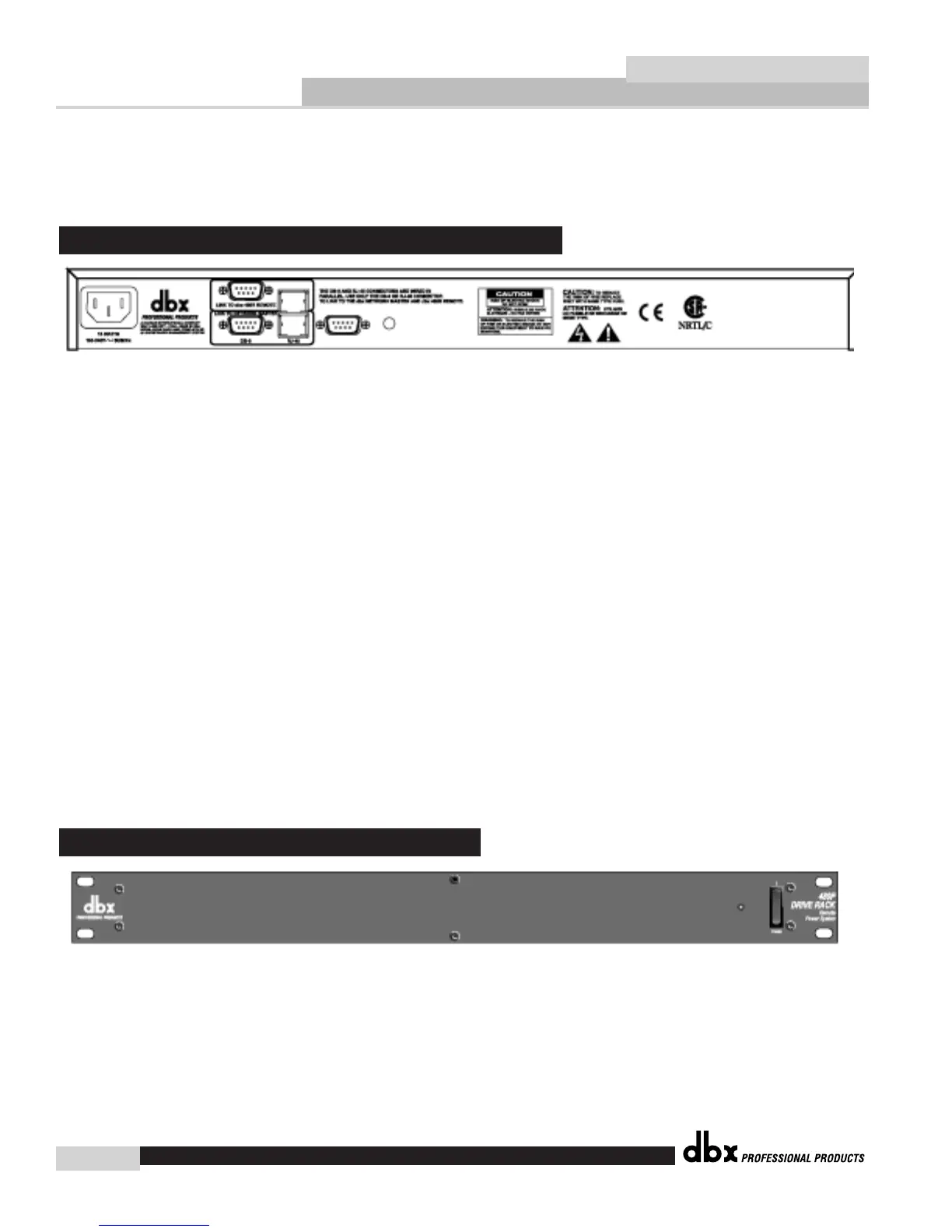

Front Panel (480P)
Rear Panel Connections (480P)
