S4600 series Installation manual Chapter 1 Introduction
1-4

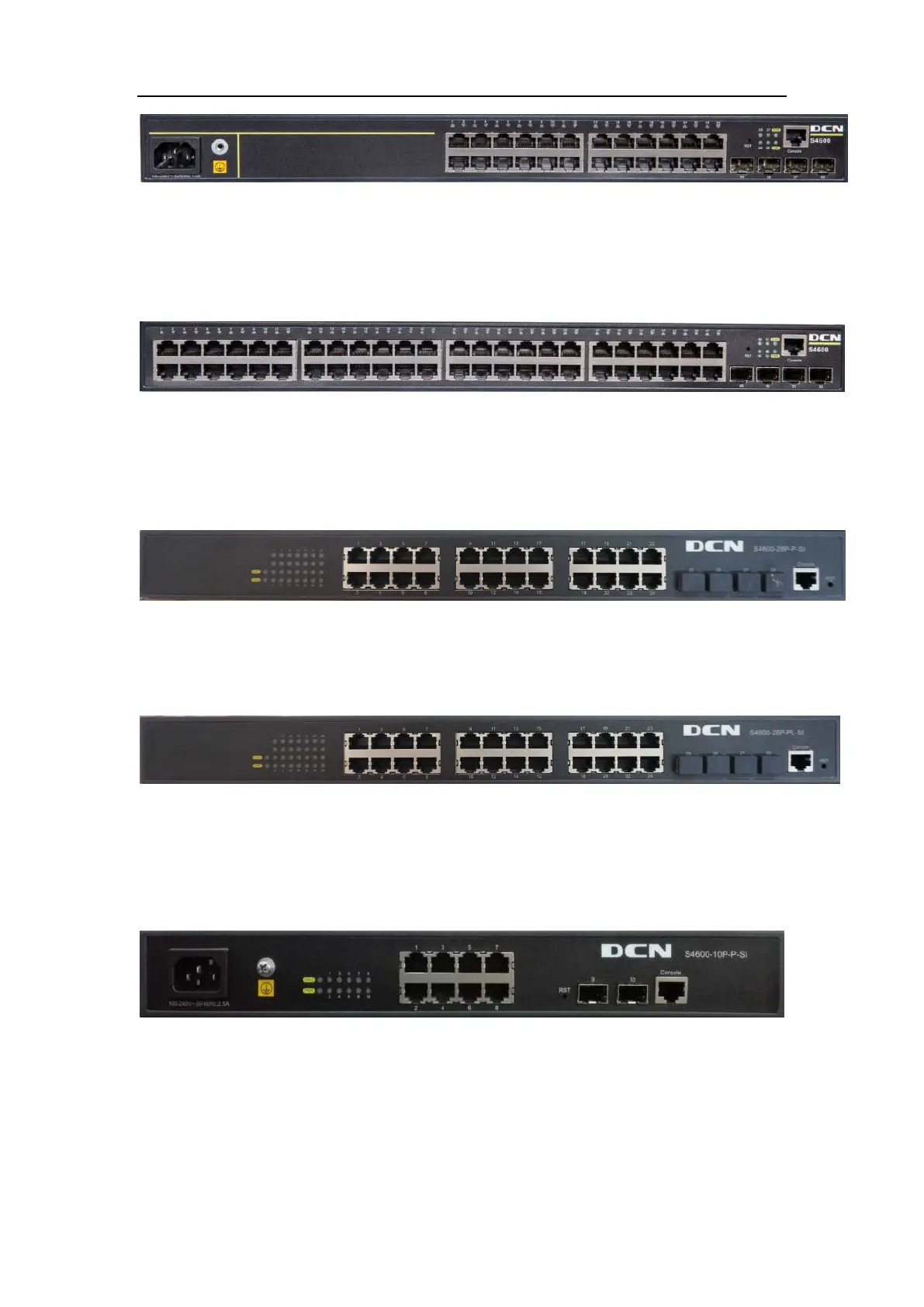

Fig 1-9 Front Panel of S4600-28P-SI
S4600-52P-SI provides 48 10/100/1000Base-T ports, 4 1000Mb SFP ports, 1
Console port, 1 system reset button, 54 LEDs.
The front panel of S4600-52P-SI series is shown as follow:
Fig 1-10 Front Panel of S4600-52P-SI
S4600-28P-P-SI provides 24 10/100/1000Base-T ports, 4 1000Mb SFP ports, 1
Console port, 1 system reset button, 30 LEDs.
The front panel of S4600-28P-P-SI series is shown as follow:
Fig 1-11 Front Panel of S4600-28P-P-SI
S4600-28P-PL-SI provides 24 10/100/1000Base-T ports, 4 1000Mb SFP ports, 1
Console port, 1 system reset button, 30 LEDs.
The front panel of S4600-28P-PL-SI series is shown as follow:
Fig 1-12 Front Panel of S4600-28P-PL-SI
S4600-10P-P-SI provides 8 10/100/1000Base-T ports, 2 1000Mb SFP ports, 1
Console port, 1 system reset button, 12 LEDs, 1 220V AC power socket and 1 grounding
screw.
The front panel of S4600-10P-P-SI series is shown as follow:
Fig 1-13 Front Panel of S4600-10P-P-SI
S4600-28C-SI provides 24 10/100/1000Base-T ports, 2 1000Mb combo ports,2
1000Mb SFP ports, 1 Console port, 1 system reset button, 28 LEDs, 1 220V AC power
socket and 1 grounding screw.
The front panel of S4600-28C-SI series is shown as follow:

DCN S4600 Series Specifications

General

Series	S4600 Series
Category	Switch
Layer Support	Layer 2/3
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	10/100/1000Base-T ports, SFP/SFP+ ports
VLAN Support	4K VLAN
Stacking	Yes
Power Supply	AC 100-240V, 50/60Hz
Management	Web, CLI, SNMP
Jumbo Frame	9K bytes
Dimensions (W x D x H)	440mm x 44mm
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
MAC Address Table	16K entries
Weight	Varies by model
