DCN S4600 Series User Manual

S4600 series Installation manual Chapter 1 Introduction
1-3
 Relative Humidity
5%～95%, no condensate
 Dimension
S4600-10P-SI: W×D×H 250mm×180mm×43.6mm
S4600-28P-SI: W×D×H 442mm×220mm×43.6mm
S4600-52P-SI: W×D×H 442mm×220mm×43.6mm
S4600-28P-P-SI: W×D×H 442mmX260mmx43.6mm
S4600-28P-PL-SI: W×D×H 442mmX280mmx43.6mm
S4600-10P-P-SI: W×D×H 340mmX200mmx43.6mm
S4600-28C-SI: W×D×H 442mm×230mm×43.6mm
 Weight
S4600-10P-SI: 1.00±0.1kg
S4600-28P-SI: 2.20±0.1kg
S4600-52P-SI: 2.65±0.1kg
S4600-28P-P-SI: 3.90±0.1kg
S4600-28P-PL-SI: 3.63±0.1kg
S4600-10P-P-SI: 2.15±0.1kg
S4600-28C-SI: 2.20±0.1kg
 Average no trouble time
At least 21, 0000 hours MTBF
1.3 Description of Hardware
1.3.1 Front Panel
S4600-10P-SI provides 8 10/100/1000Base-T ports, 2 1000Mb SFP ports, 1 Console
port, 1 system reset button, 12 LEDs, 1 220V AC power socket and 1 grounding screw.
The front panel of S4600-10P-SI is shown as follow:

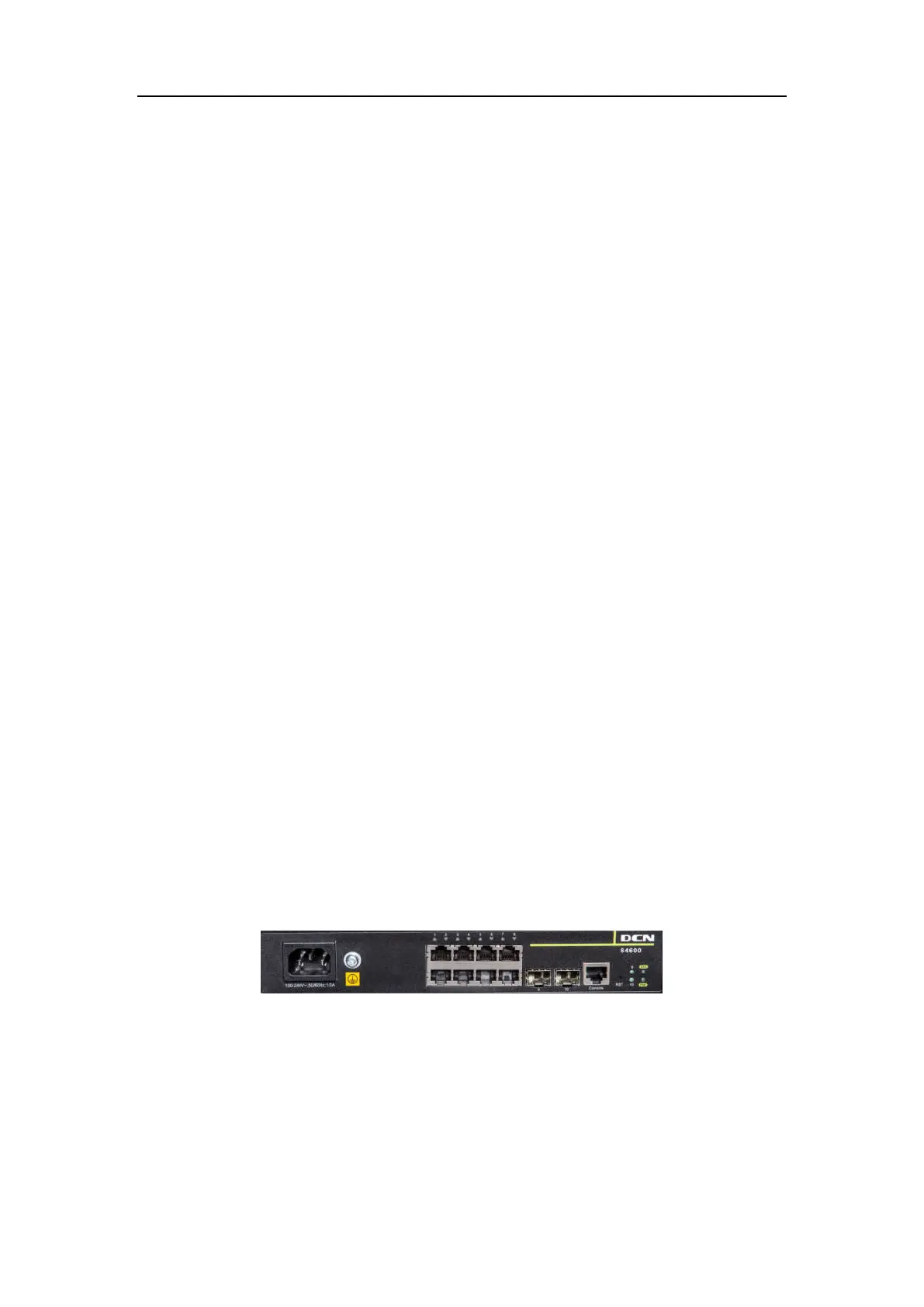

Fig1-8 Front Panel of S4600-10P-SI
S4600-28P-SI provides 24 10/100/1000Base-T ports, 4 1000Mb SFP ports, 1
Console port, 1 system reset button, 30 LEDs, 1 220V AC power socket and 1 grounding
screw.
The front panel of S4600-28P-SI is shown as follow:

DCN S4600 Series Specifications

General

Series	S4600 Series
Category	Switch
Layer Support	Layer 2/3
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	10/100/1000Base-T ports, SFP/SFP+ ports
VLAN Support	4K VLAN
Stacking	Yes
Power Supply	AC 100-240V, 50/60Hz
Management	Web, CLI, SNMP
Jumbo Frame	9K bytes
Dimensions (W x D x H)	440mm x 44mm
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
MAC Address Table	16K entries
Weight	Varies by model
