DCN S4600 Series User Manual

S4600 series Installation manual Chapter 1 Introduction
1-6
1.3.3 Status LEDs
S4600 series switches include port indicator and system status indicator, as shown in
below and described in the following table.
1.3.3.1 Port Indicator Description

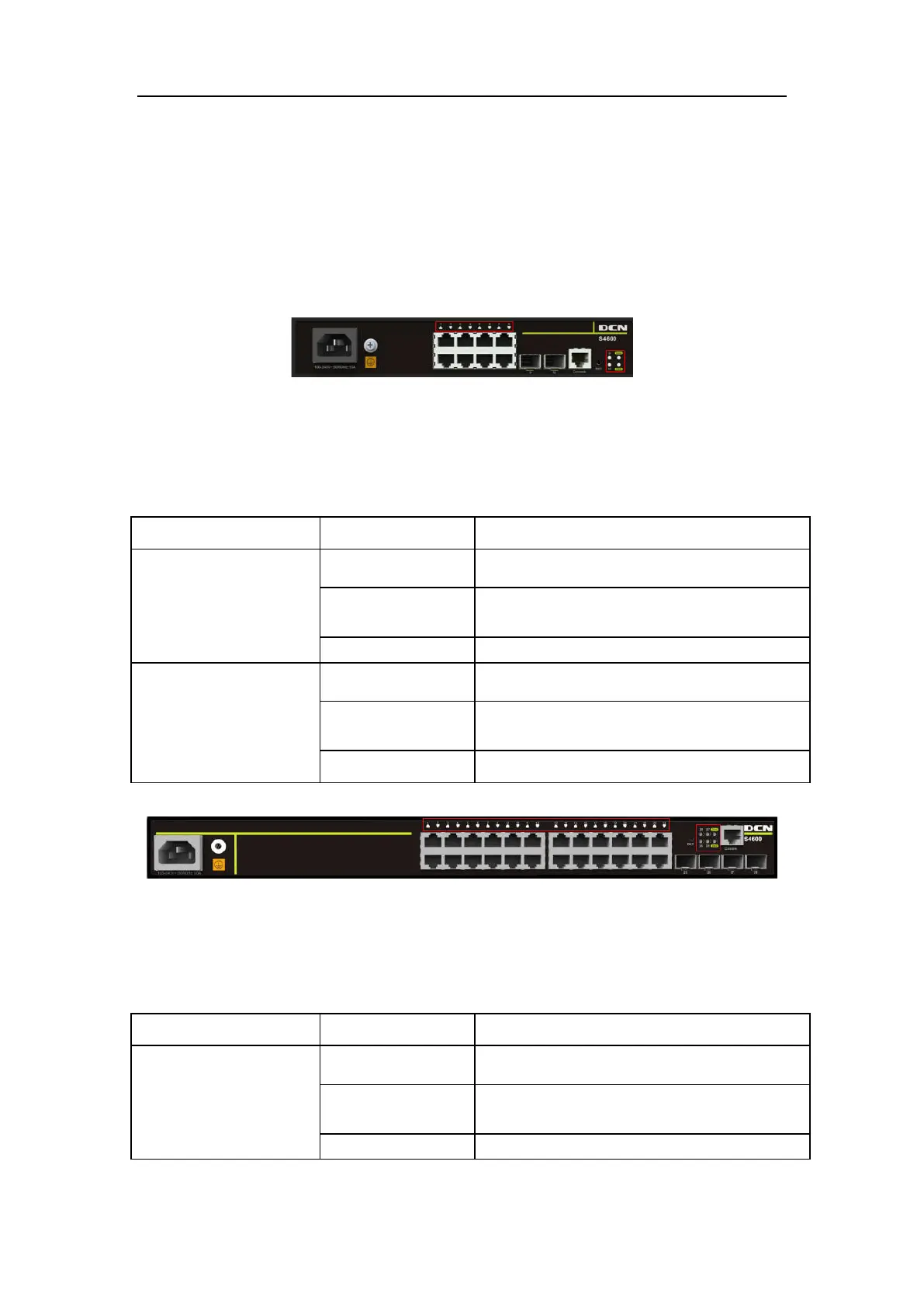

Fig 1-21 S4600-10P-SI LED diagram
Table 1-1 S4600-10P-SI port indicator description
Panel Symbol Status Description
Port1-8(Link/Act)
On (Green) The port is linked successfully
Flash (Green)
The port is linked successfully, and
receive/send data
Off The port is not link
Port9/10(Link/Act)
On (Green)
SFP port is linked successfully
Flash (Green)
SFP port is linked successfully, and
receive/send data
Off SFP port is not link
Fig 1-22 S4600-28P-SI LED diagram
Table 1-2 S4600-28P-SI port indicator description
Panel Symbol Status Description
Port1-24(Link/Act)
On (Green) The port is linked successfully
Flash (Green)
The port is linked successfully, and
receive/send data
Off The port is not link

DCN S4600 Series Specifications

General

Series	S4600 Series
Category	Switch
Layer Support	Layer 2/3
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	10/100/1000Base-T ports, SFP/SFP+ ports
VLAN Support	4K VLAN
Stacking	Yes
Power Supply	AC 100-240V, 50/60Hz
Management	Web, CLI, SNMP
Jumbo Frame	9K bytes
Dimensions (W x D x H)	440mm x 44mm
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
MAC Address Table	16K entries
Weight	Varies by model
