S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) Chapter 2 Hardware Installation
2-6
2.3 Installation Guide
2.3.1 Installing Switch

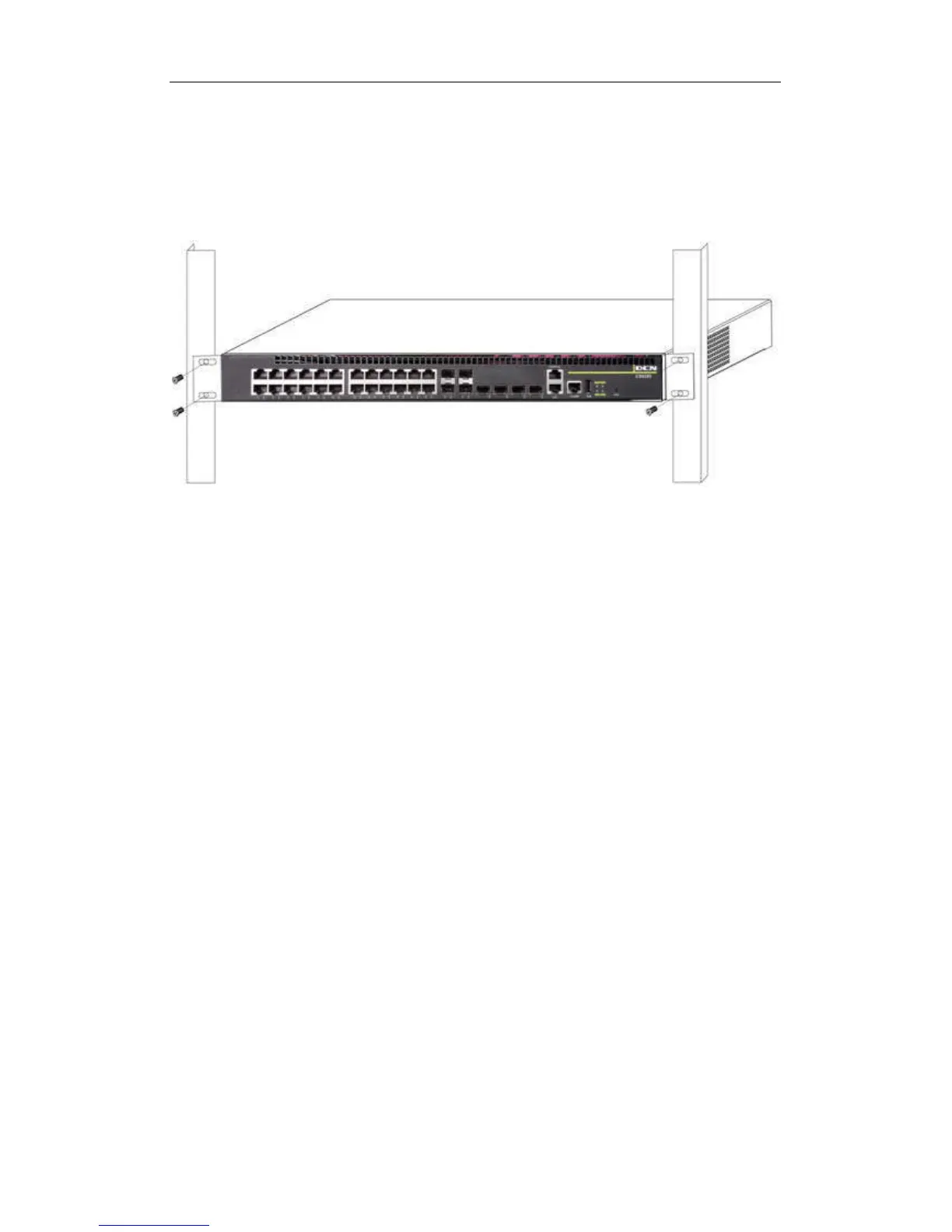

Fig 2-1 Install sketch map on the rack
Please mount S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) series on the 19’’ rack as
below:
1. Attach the 2 brackets on the S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) series with
screws provided in the accessory kit.
2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the
S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) series to the rack with the screws provided.
Leave enough space around the switch for good air circulation.
Caution!
The brackets are used to fix the switch on the rack. They can’t serve as a bearing.
Please place a rack shelf under the switch. Do not place anything on top of the switch. Do
not block the blowholes on the switch to ensure the proper operation of the switch.
2.3.2 Connecting Console
S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) series provides a Mini-USB serial console
port.
