S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) Chapter 2 Hardware Installation
2-7

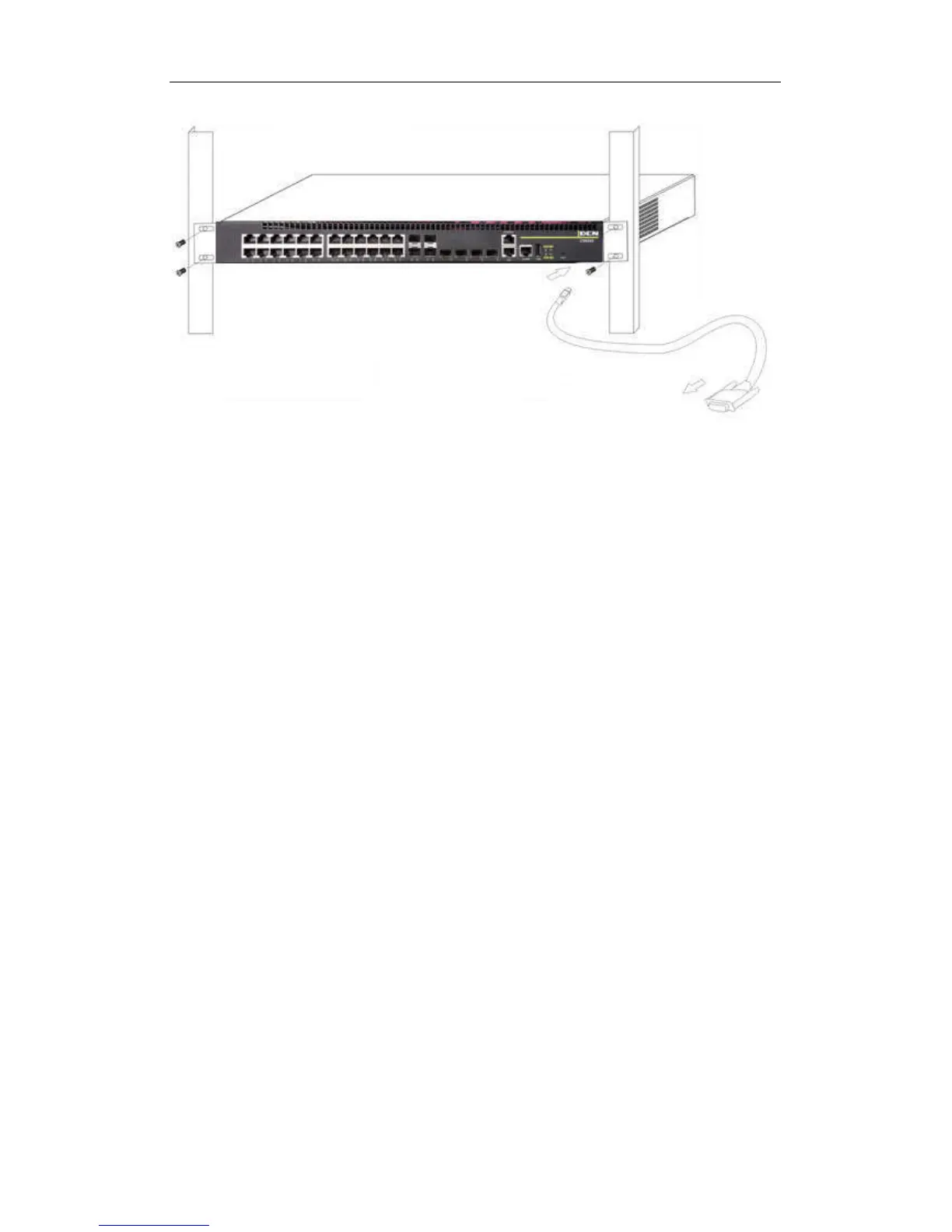

Fig 2-2 Connecting Console to switch
The connection procedure is shown below:
1. Find the console cable provided in the accessory kit. Attach the Mini-USB end to
console port of the switch.
2. Connect the other side of the console cable to a character terminal (PC).
3. Power on the switch and the character terminal. Configure the switch through the
character terminal.
2.3.3 SFP Transceiver Installation
S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) series provide multiple 1000Mb SFP transceiver
slots.
The procedure for installing SFP transceiver is shown below:
Step 1: Put on a ESD wrist strap (or antistatic gloves).
Step 2: Insert SFP transceiver to the guide rail inside the fiber interface line card. Do not
put the SFP transceiver up-side-down.
Step 3: Push SFP transceiver along the guide rail gently until you feel the transceiver snap
into place at the bottom of the line card.
Note: SFP transceiver supports the hot swap.
Caution!
Do not stare directly at the 2 fiber bores in the SFP transceiver when the switch is in
operation, otherwise the laser may hurt your eyes.
2.3.4 SFP+ extended module Installation
