DCN S5750E-16F-SI-R User Manual

S5750E-16(28)(52)F(C)(X)(-P)-SI(R2.0) Chapter 1 Introduction
1-6
USB interface, 1 reset button and 1 Console port. As shown:

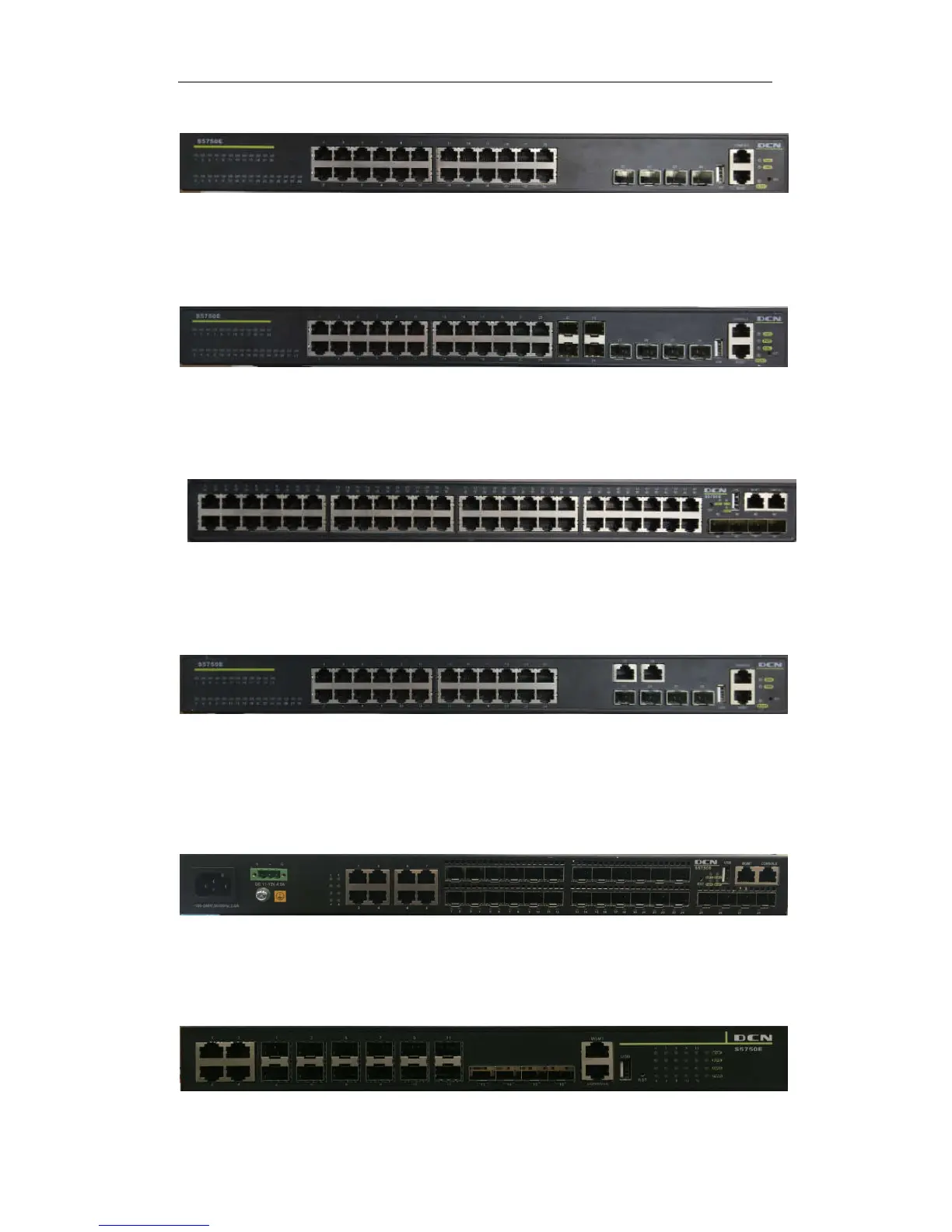

Fig 1-1 Front Panel of CS5750E-28X-SI
S5750E-28X-P-S ethernet switches provide 20 100/1000Base-TX auto negotiation
ehternet ports, 4 1000Mb Combo ports, 4 10Gb optical ports, 5 function LEDs, 1
network management port, 1 USB interface, 1 reset button and 1 Console port.
Fig 1-2 Front Panel of S5750E-28X-P-SI
S5750E-52X-SI Ethernet switches provide provide 48 100/1000Base-TX auto
negotiation ehternet ports, 4 10Gb optical ports, 1 network management port, 1 USB
interface, 1 reset button and 1 Console port.
Fig 1-3 Front Panel of S5750E-52X-SI
S5750E-28C-SI Ethernet switches provide provide 24 100/1000Base-TX auto
negotiation ehternet ports, 2 Combo ports,2 10Gb optical ports, 1 network management
port, 1 USB interface, 1 reset button and 1 Console port.
Fig 1-4 Front Panel of S5750E-28C-SI
S5750E-28F-SI-R ethernet switches provide 8 1000Mb Combo ports, 16 1Gb
optical ports, 4 10Gb optical ports ,4 function LEDs, 1 network management port, 1
USB interface, 1 reset button, 1 Console port, 1 ground screw hole, 1 AC plug-in
interface and 1 DC plug-in interface.
Fig 1-5 Front Panel of S5750E-28F-SI-R
S5750E-16F-SI-R ethernet switches provide 4 1000Mb Combo ports, 8 1Gb optical
ports, 4 10Gb optical ports ,4 function LEDs, 1 network management port, 1 USB
interface, 1 reset button and 1 Console port.
Fig 1-6 Front Panel of S5750E-16F-SI-R

DCN S5750E-16F-SI-R Specifications

General

Brand	DCN
Model	S5750E-16F-SI-R
Category	Switch
Language	English
