RADIANT ASSEMBLY
RADIANT ASSEMBLY INSTALLATION:

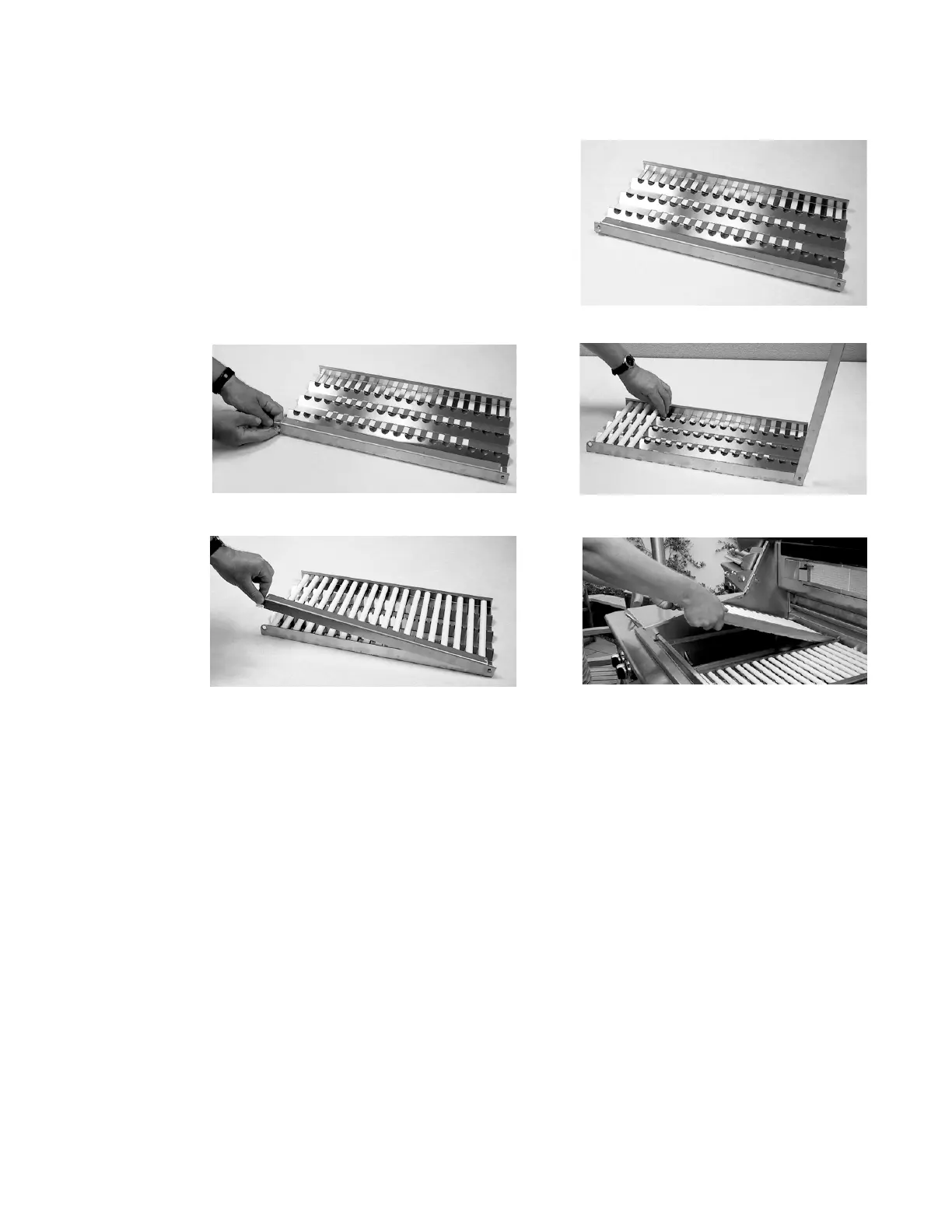

1. Unpack ceramic rods and remove radiant (Fig. 19) from the unit.
2. Unlock radiant end cap by pushing it up with two fingers
(Fig. 20).
3. Place 17 ceramic rods on the radiant (Fig. 21).
4. Lock radiant end cap (Fig. 22).
5. Place the assembled radiant in the unit (Fig. 23).
Note:
In case a ceramic rod breaks:
a) Unlock radiant end cap by pushing it up with two fingers (Fig. 20) or pliers may be used.
b) Replace broken ceramic rod.
c) Lock radiant end cap.
FIG. 19
FIG. 20
FIG. 21
FIG. 22
FIG. 23
