DCS RDV2 User Manual

15
AA
B
C
B
A
B
D
E
C

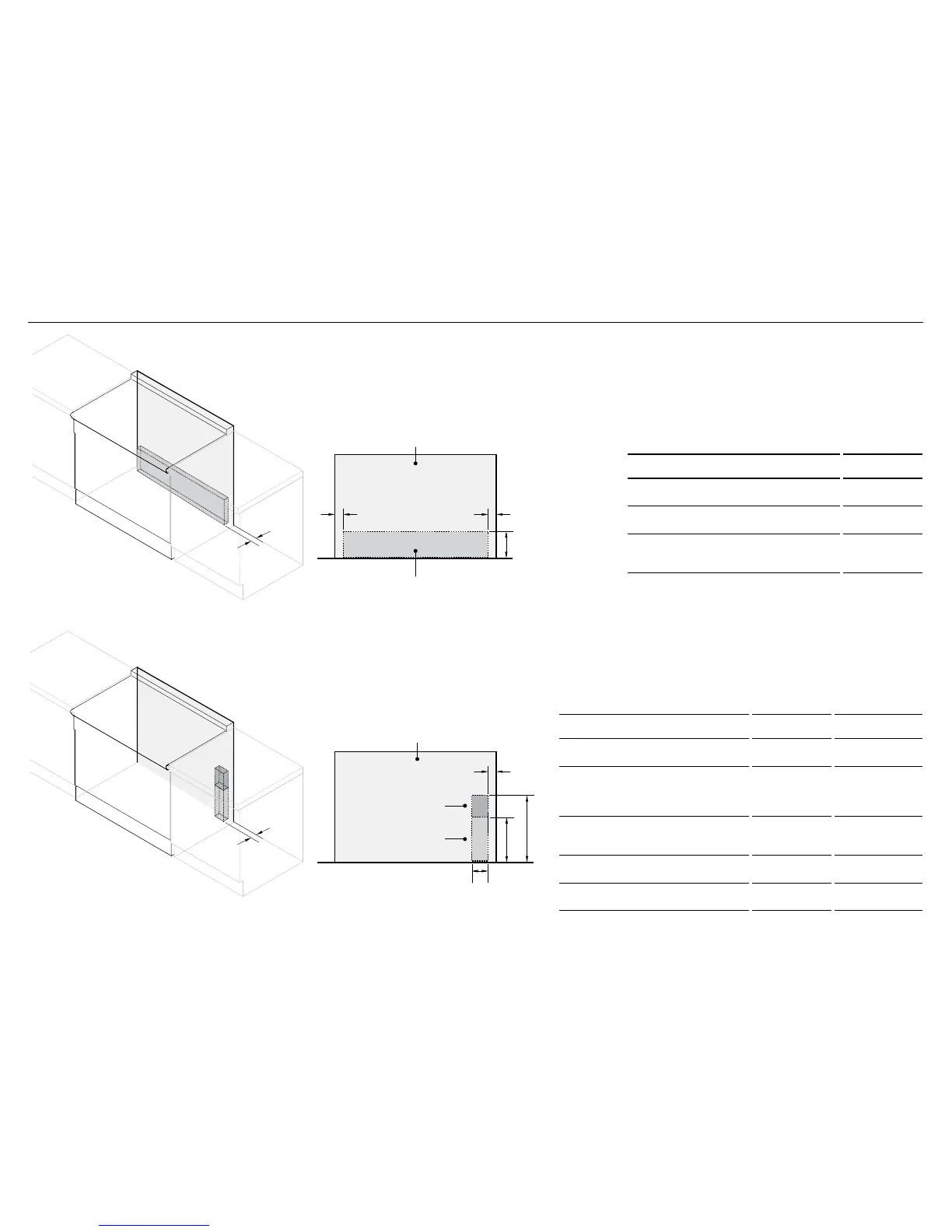

!3 LOCATION OF ELECTRICAL & GAS SUPPLY
RGV2 & RGCV2 MODELS
RDV2 MODELS
SUPPLY AREA DIMENSIONS RGV2 RGCV2
A
Distance from right edge
of range to supply area
1 1/2” (38mm) 1 1/2” (38mm)
B
Width of supply areas
- 30” models
- 36” models
- 48” models
2” (51mm)
5” (127mm)
3” (76mm)
2” (51mm)
na
na
C
Depth of supply areas
(i.e. maximum protrusion of
gas connection from wall)
2” (51mm) 2” (51mm)
D
Height of gas supply area
(from floor)
12” (305mm) 4 1/2” (114mm)
E
Height of electrical supply area
(from floor)
19” (483mm) 11” (279mm)
SUPPLY AREA DIMENSIONS RDV2
A
Distance from either edge of range
to supply area
1 1/2” (38mm)
B
Height of gas and electrical supply
areas (from floor)
6” (152mm)
C
Depth of supply areas
(i.e. maximum protrusion of
gas connection from wall)
2” (51mm)
Final position of range against wall
ELECTRICITY AND GAS
GAS
ELECTRICITY
Final position of range against wall
