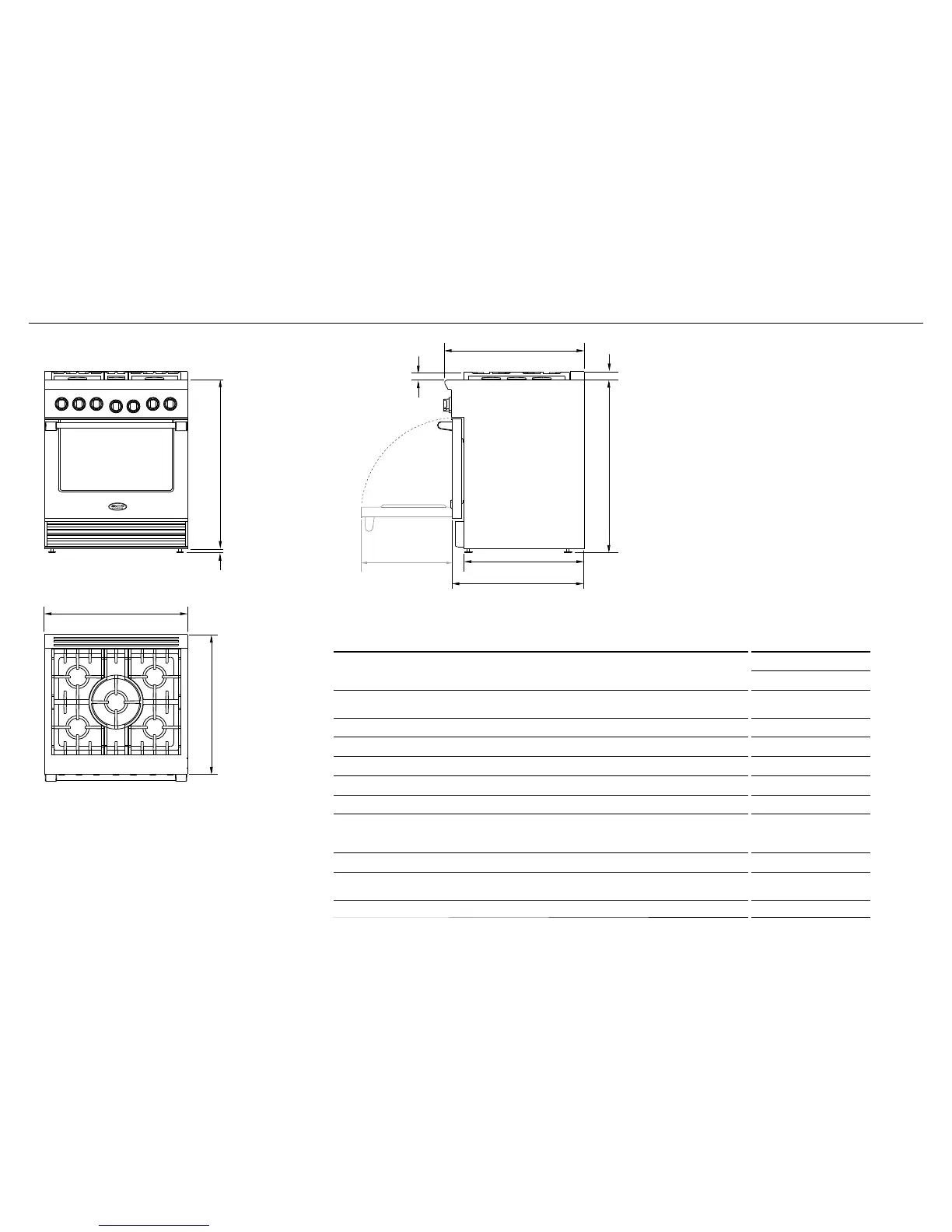

5 PRODUCT DIMENSIONS - 30” MODELS
B
C
C
F
H
I
D
J
E
G
A
PRODUCT DIMENSIONS
30” MODELS
inches (mm)
A
Overall height of range (from floor to cooktop, excluding
pan supports and vent trim)
min 35 3/4’’ (908)
max 36 3/4’’ (933)
B
Overall width of range 29 7/8” (759)
C
Overall depth of range (excluding handle and dials) 29 1/8” (740)
D
Depth from rear of chassis to cabinetry face - projecting control panel 25 1/8” (638)
E
Depth from rear of chassis to cabinetry face - flush control panel 27 11/16” (703)
F
Height from top of countertop to top of pan supports 1 9/16” (40)
G
Height from top of countertop to top of
- vent trim (if fitted)
- angled vent trim (if fitted)
1 3/4” (45)
3 1/2” (90)
H
Height from top of countertop to bottom of chassis 35 1/4” (895)
I
Adjustable feet height min 1/2’’ (13)
max 1 1/2’’ (38)
J
Depth of open door to front control panel 19 1/8” (486)
PLAN
PROFILE
FRONT
RGV2-305 shown for Illustration purposes only
